Introduction
Laptop Docking Station | USB 3.0 | TAA Compliant | Mac & Windows

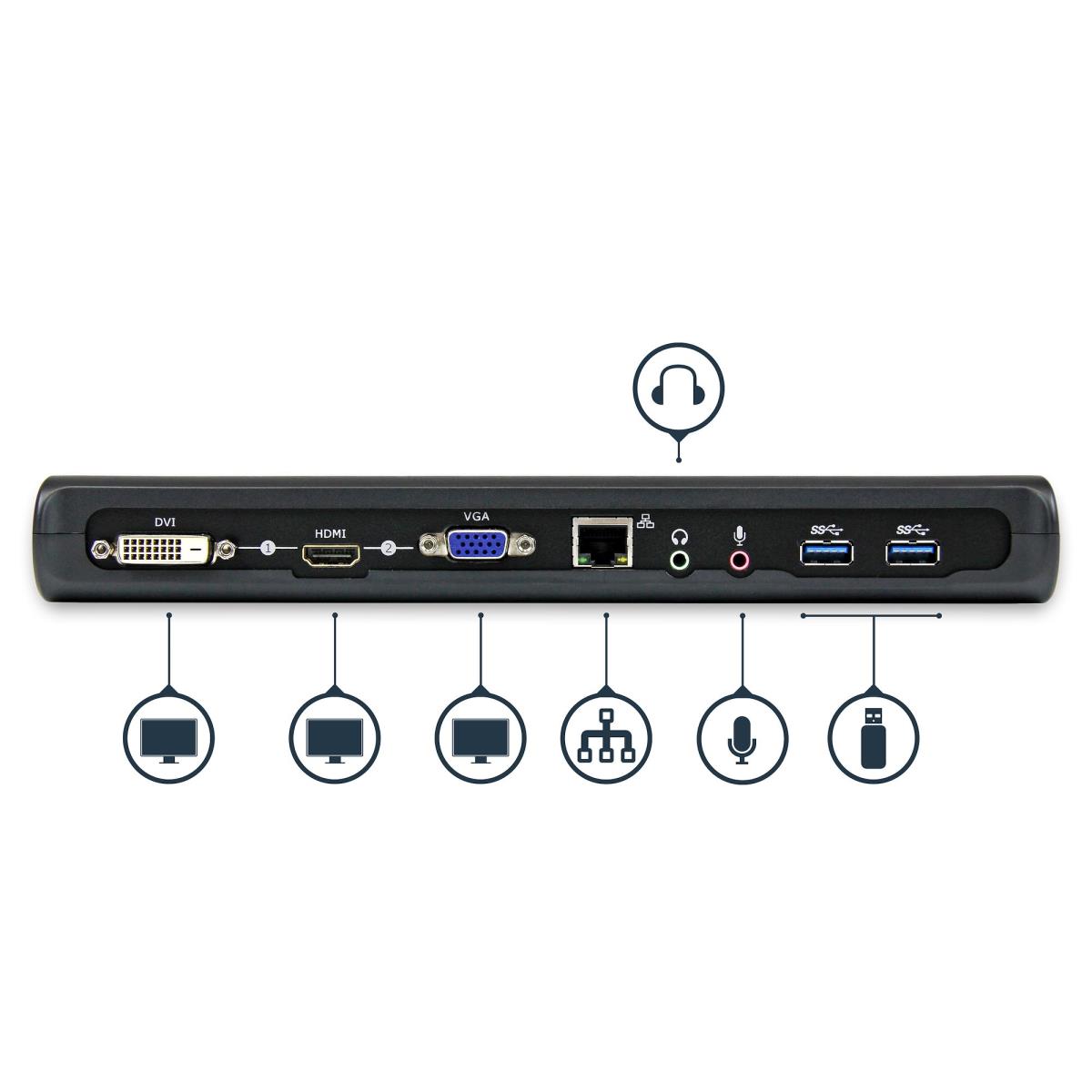

This USB 3.0 dock combines three USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking station for maximum productivity.
Display Adaptability
Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI, DVI and VGA external monitor outputs. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.

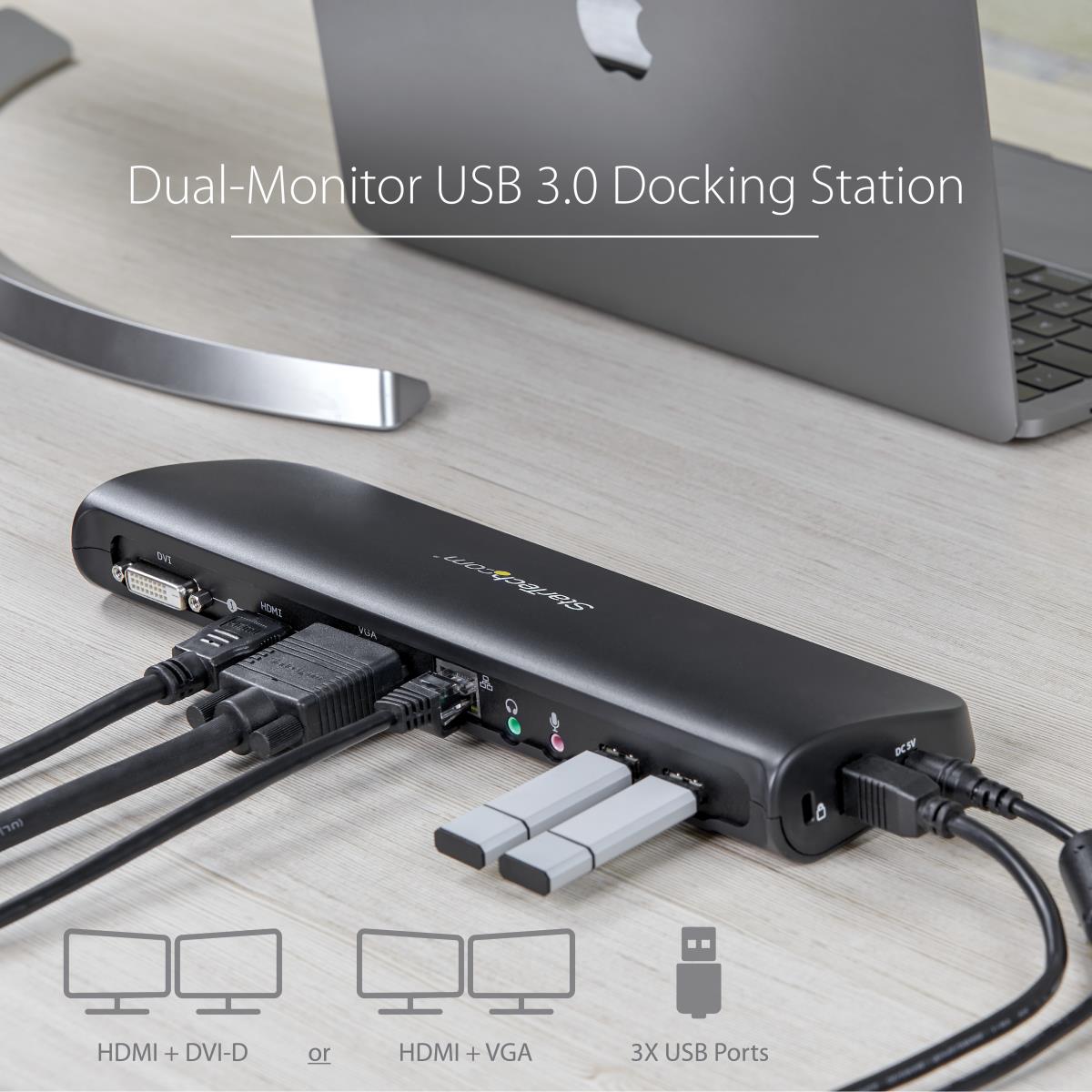

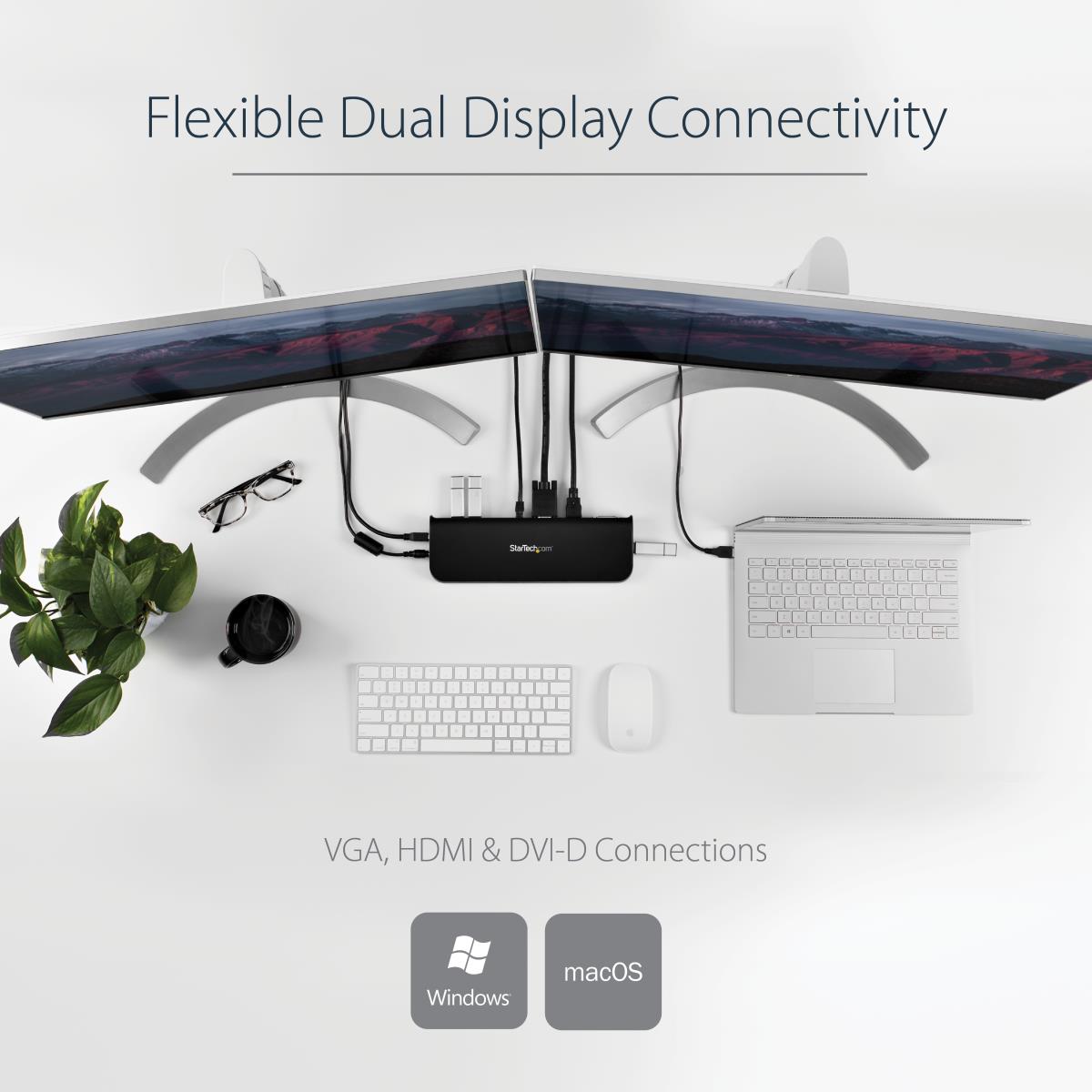

Available display combinations:
HDMI + VGA
HDMI + DVI
Integrated USB Hub

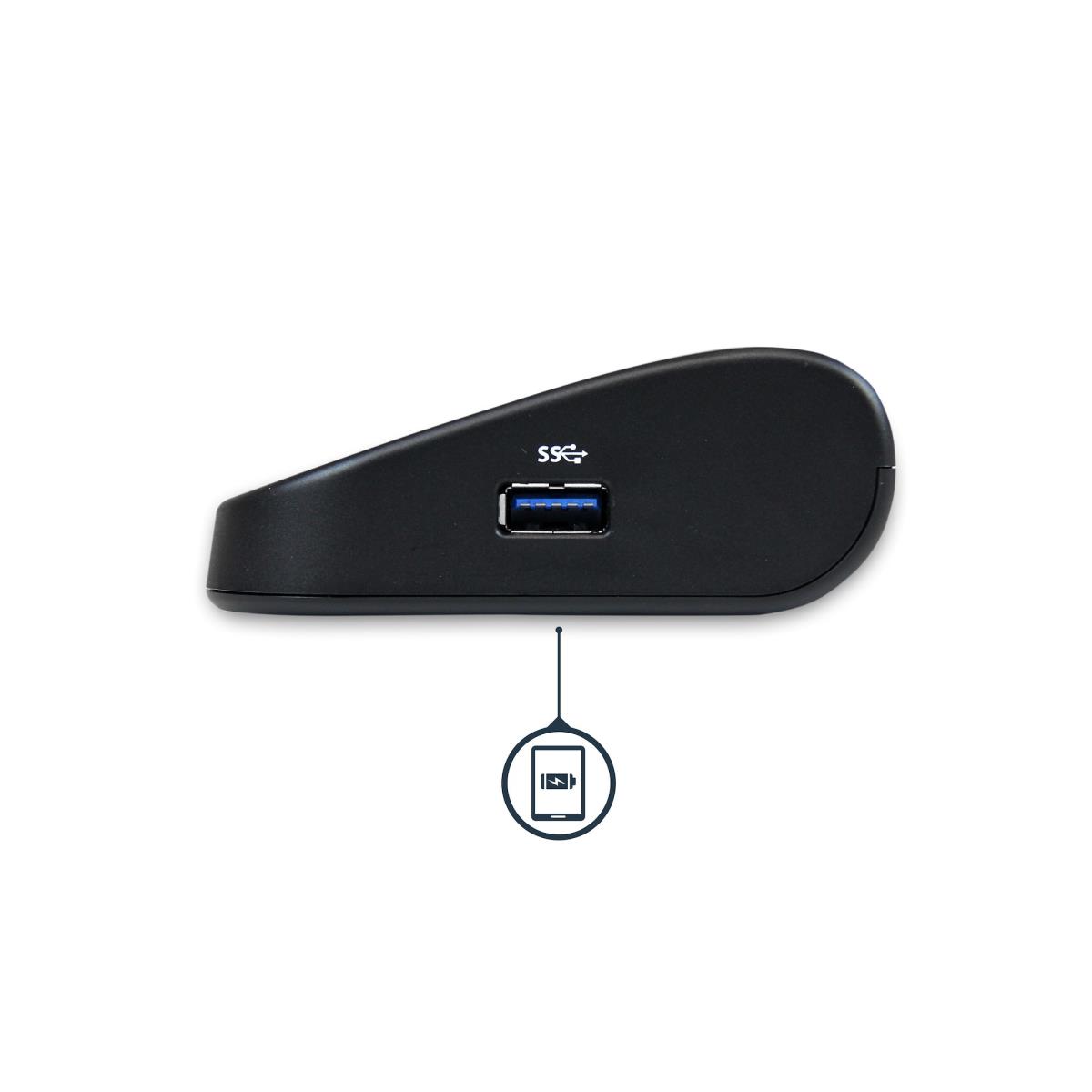

The built-in USB hub features three USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse, as if they are connected directly to your laptop.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a wired network.
StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime Technical Support.
The StarTech.com Advantage
- Save time by connecting multiple peripherals through a single cable
- Increase available screen space with dual independent HD video outputs
- Expand connectivity with additional USB 3.0 ports
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
84733020
Software
Other operating systems supported
ChromeOS
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Mac compatibility
Y
Mac operating systems supported
Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave
Logistics data
Products per master (outer) case
6 pc(s)
Master (outer) case width
215 mm
Master (outer) case length
435 mm
Master (outer) case height
345 mm

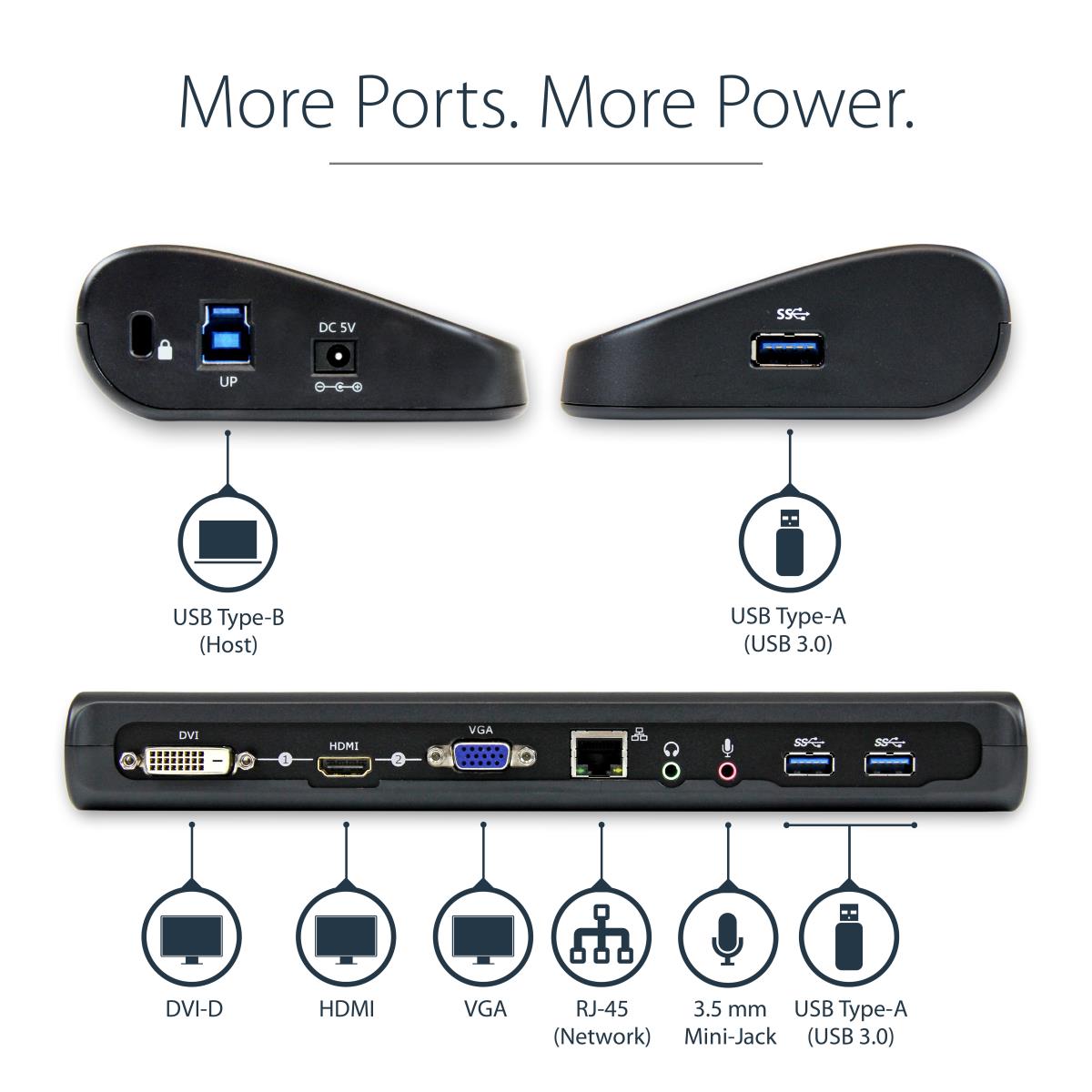

Ports & interfaces
Connectivity technology
Wired
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
HDMI ports quantity
1
VGA (D-Sub) ports quantity
1
DVI-D ports quantity
1
Microphone in
Y
Headphone outputs
1
DC-in jack
Y
Network
Ethernet LAN
Y
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Copper ethernet cabling technology
1000BASE-T,100BASE-TX,10BASE-T
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Auto MDI/MDI-X
Y
Full duplex
Y
Performance
Card reader integrated
N
Data transfer rate
5 Gbit/s
Maximum digital resolution
1920 x 1200 pixels
Maximum analog resolution
2048 x 1152 pixels
Cable lock slot
Y
Cable lock slot type
Kensington
Product colour
Black
Housing material
Plastic
Certification
FCC, CE, TAA, REACH
Power
AC input voltage
100-240 V
Input current
0.9 A
Output voltage
5 V
Output current
4 A
Power consumption (typical)
20 W
Power plug type
Type B
Compatible power plug types
AU,EU,UK,US
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 90%
Sustainability
Sustainability certificates
RoHS
Weight & dimensions
Width
178 mm
Depth
304 mm
Height
44 mm
Weight
295 g
Packaging data
Package width
195 mm
Package depth
296 mm
Package height
66 mm
Package weight
878 g
Packaging content
Cables included
USB
AC adapter included
Y
Manual
Y
Drivers included
Y
Other features
Chipset
DisplayLink - DL-3900, Genesys Logic - GL3520, Realtek - RTL8211E
USB data transfer rates
12,480,5000 Mbit/s
