Introduction
Expand your workspace with a high-performance docking station that delivers triple 4K 60Hz display output, 2.5G Ethernet, and broad device connectivity, all through a single USB4 or Thunderbolt 4 connection.
High-Performance Display and Networking

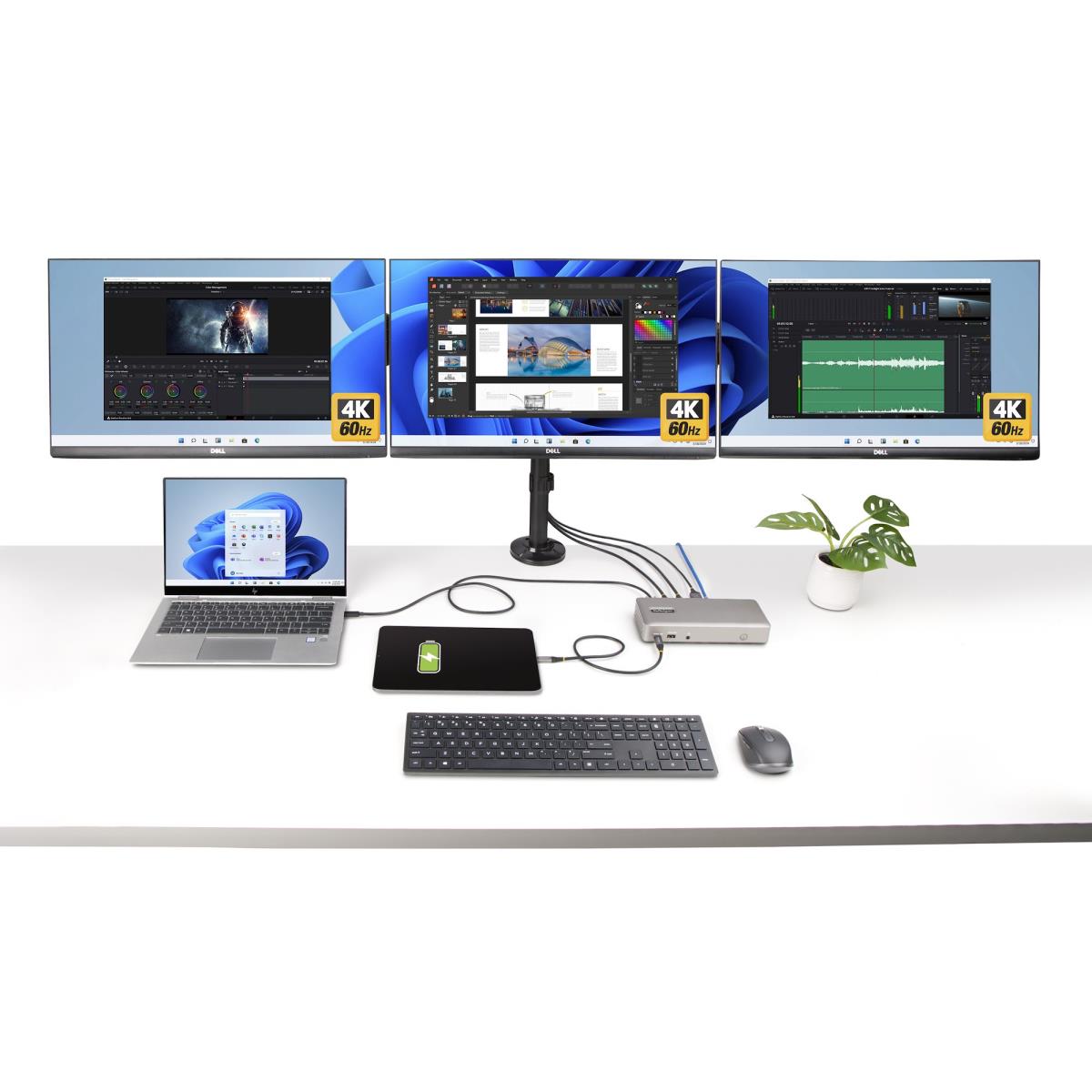

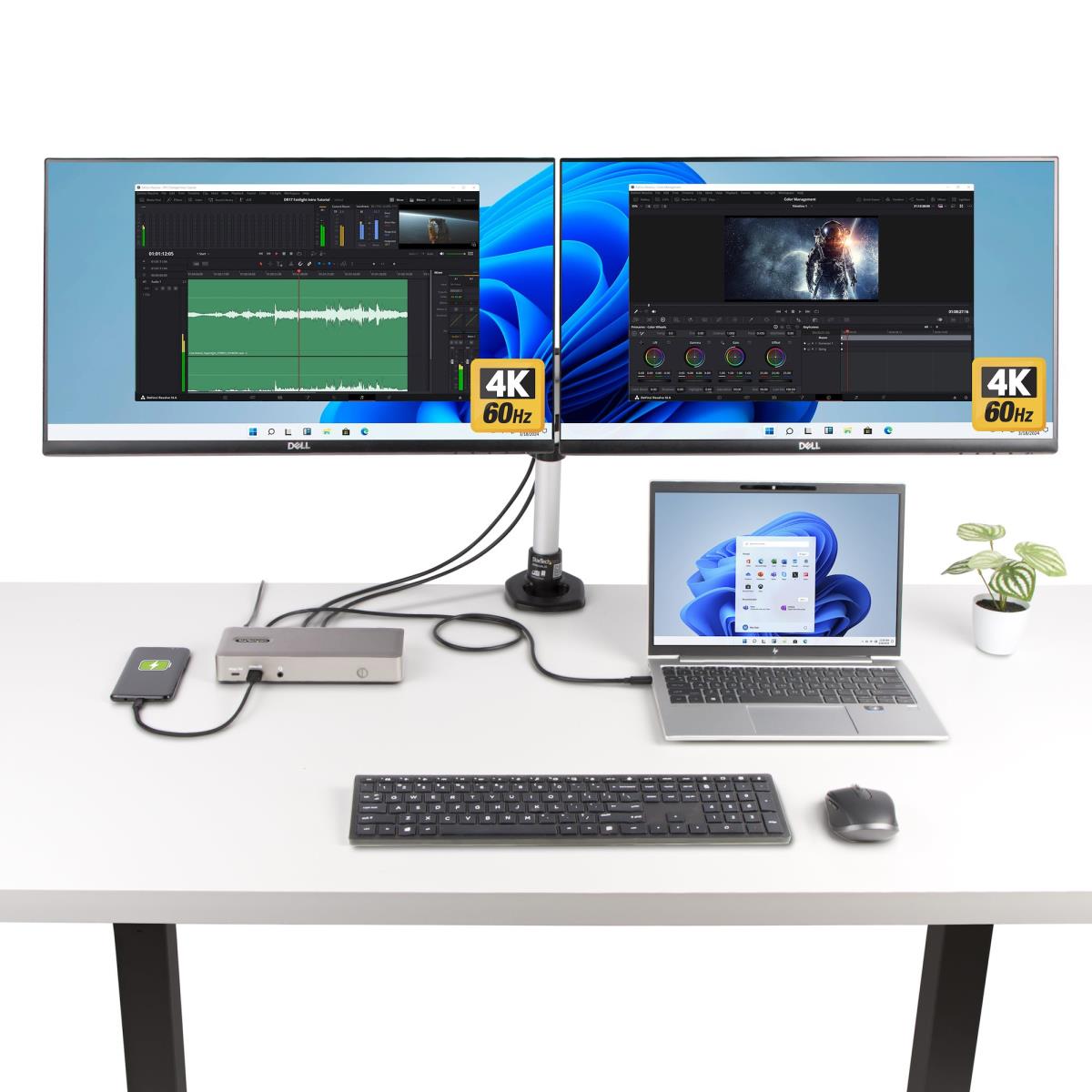

Connect up to three 4K 60Hz displays via a single USB4 or Thunderbolt 4 port, leveraging full GPU capabilities without software or compression. Boost productivity with fast 2.5GbE networking, supporting PXE Boot and Wake-on-LAN for streamlined IT-managed deployments.
Comprehensive Connectivity and Power

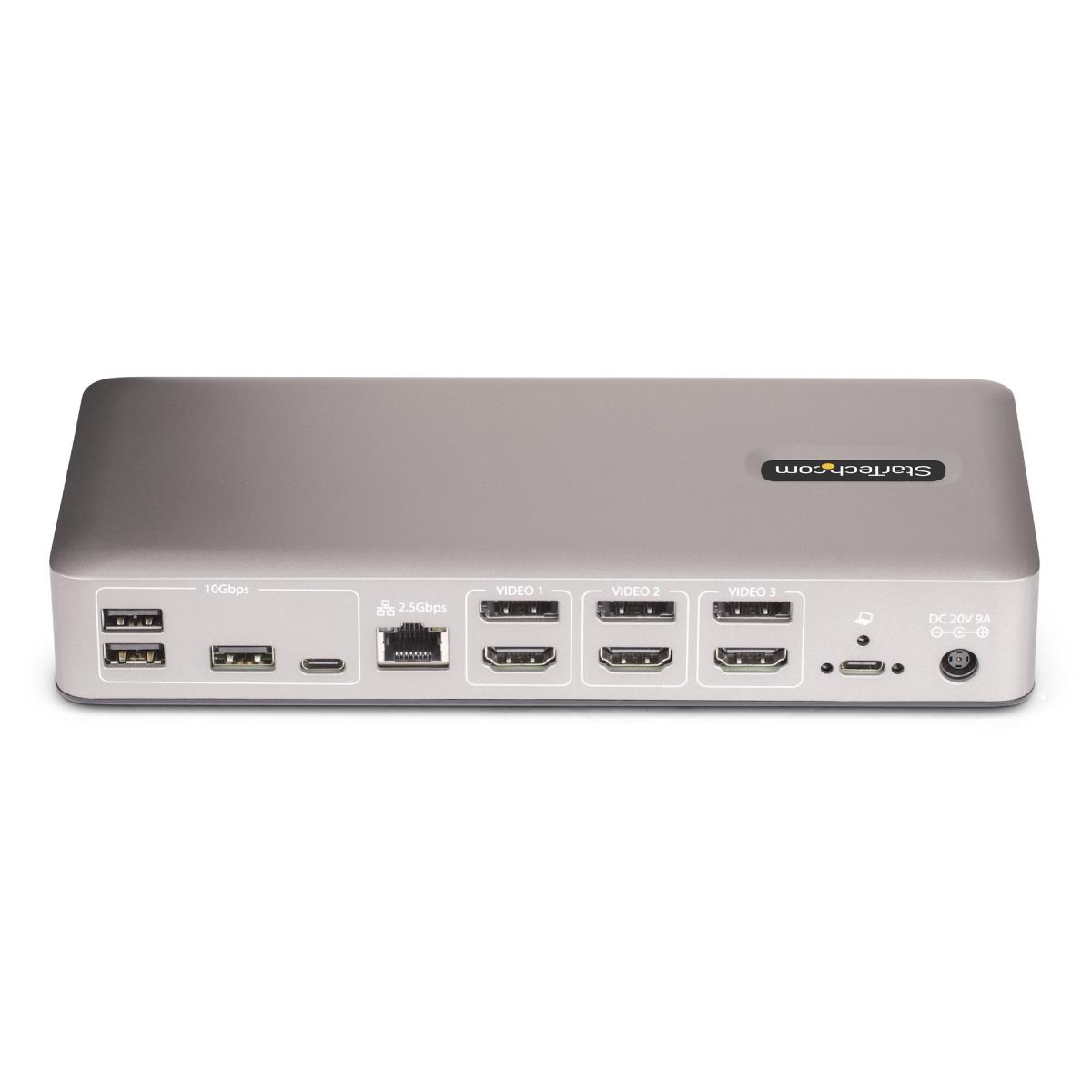

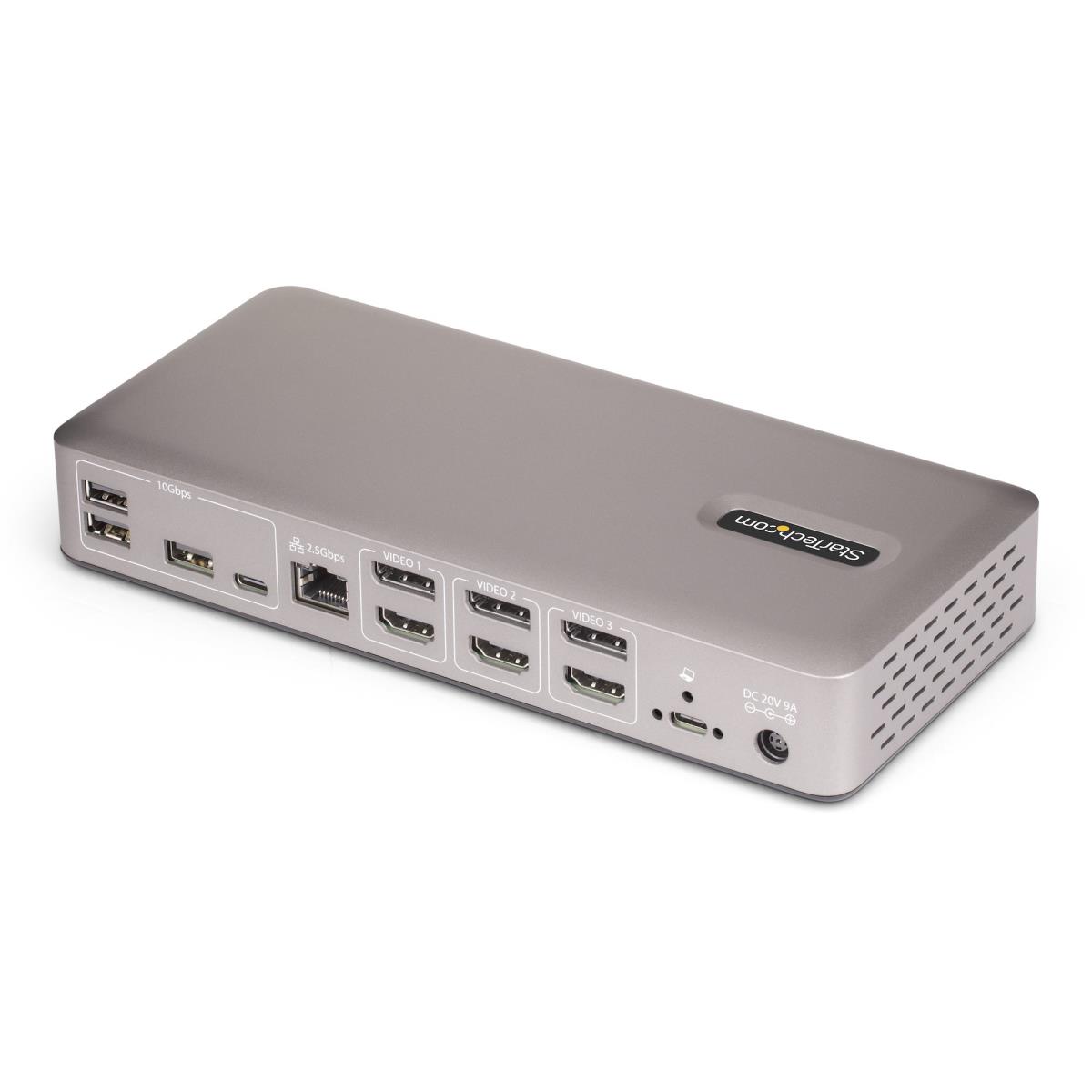

The dock offers three video outputs (HDMI or DisplayPort), four USB-A ports (10Gbps), two USB-C ports (10Gbps and 5Gbps), and delivers up to 100W of host charging. A 180W power adapter ensures all ports operate at full capacity.
Driverless Deployment with Secure Mounting Options

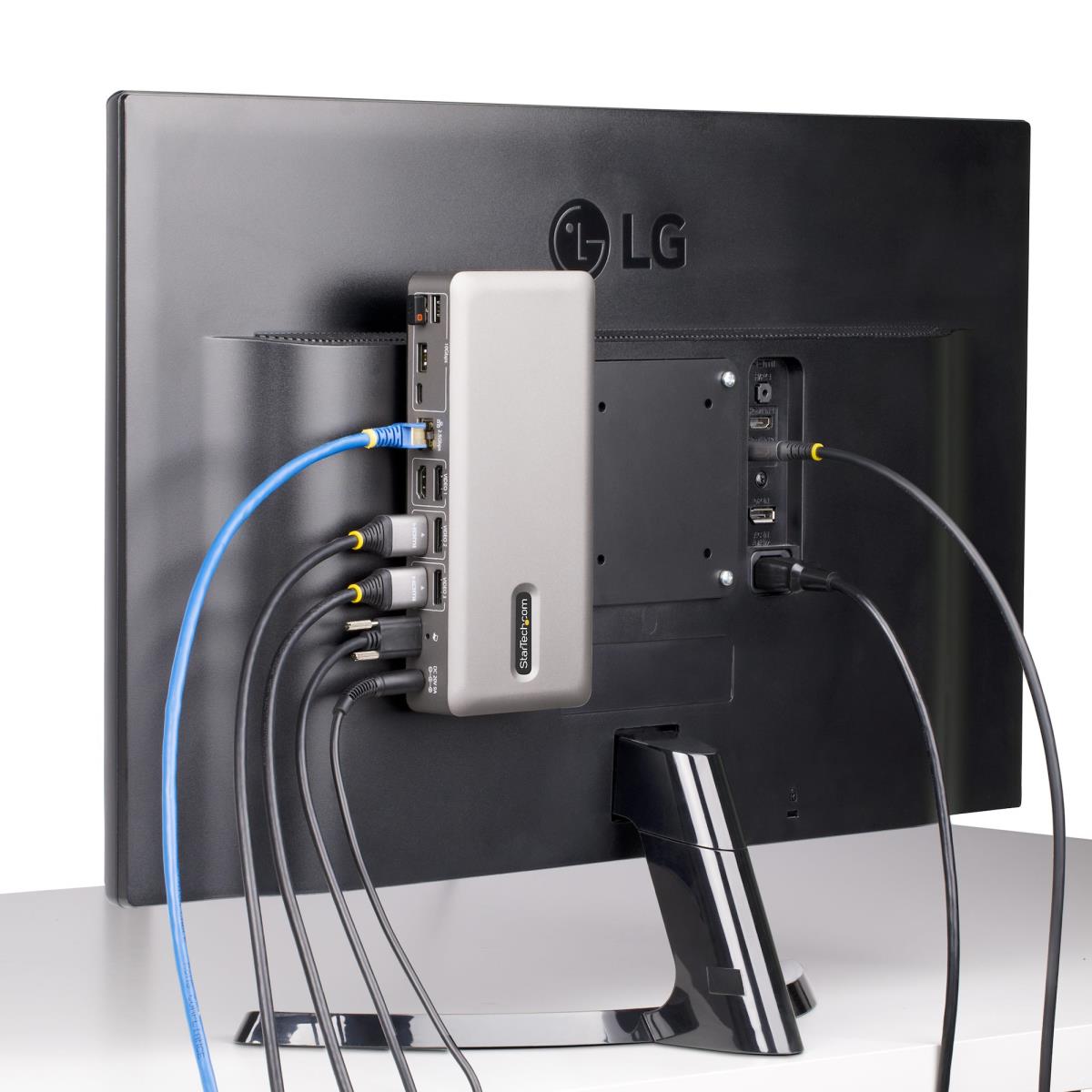

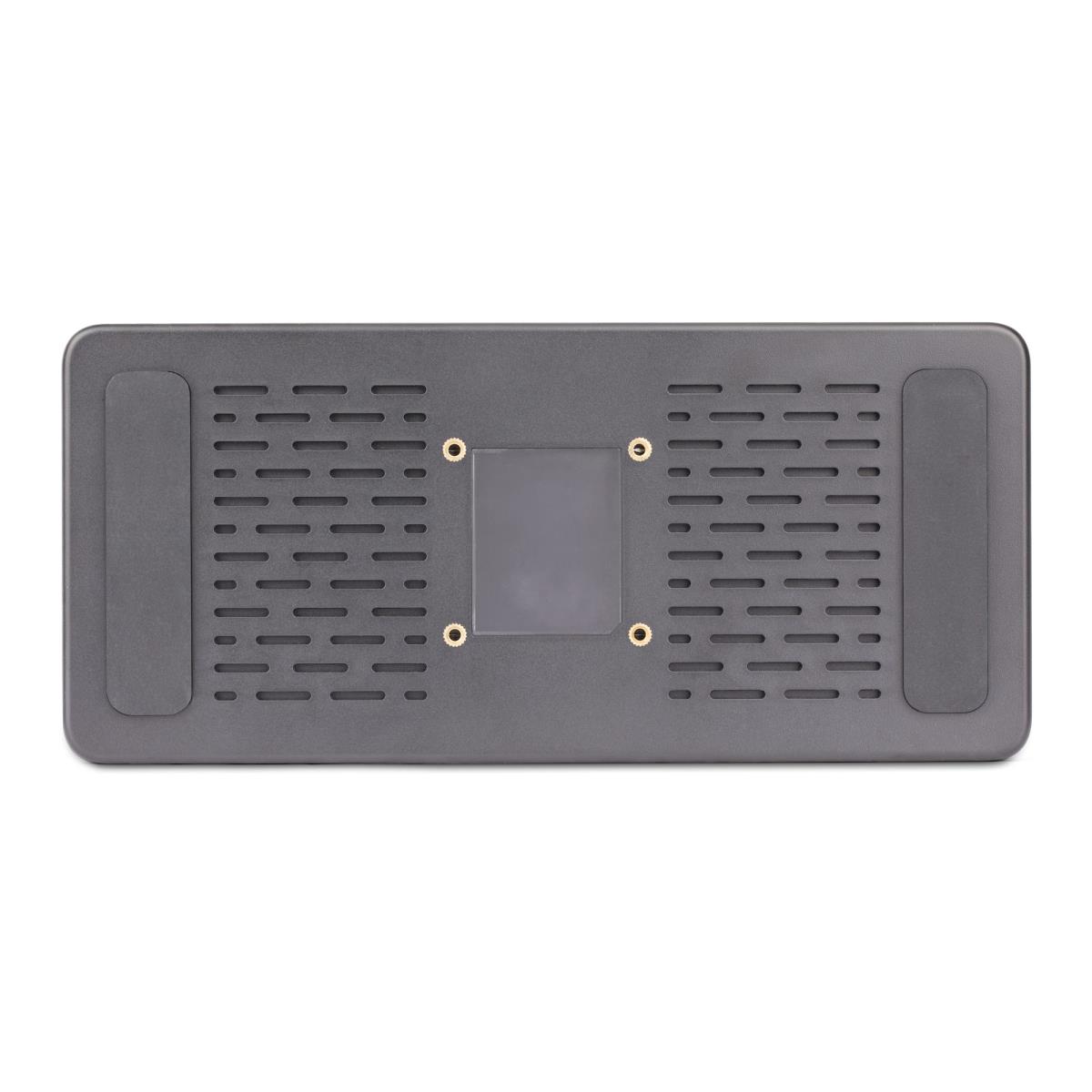

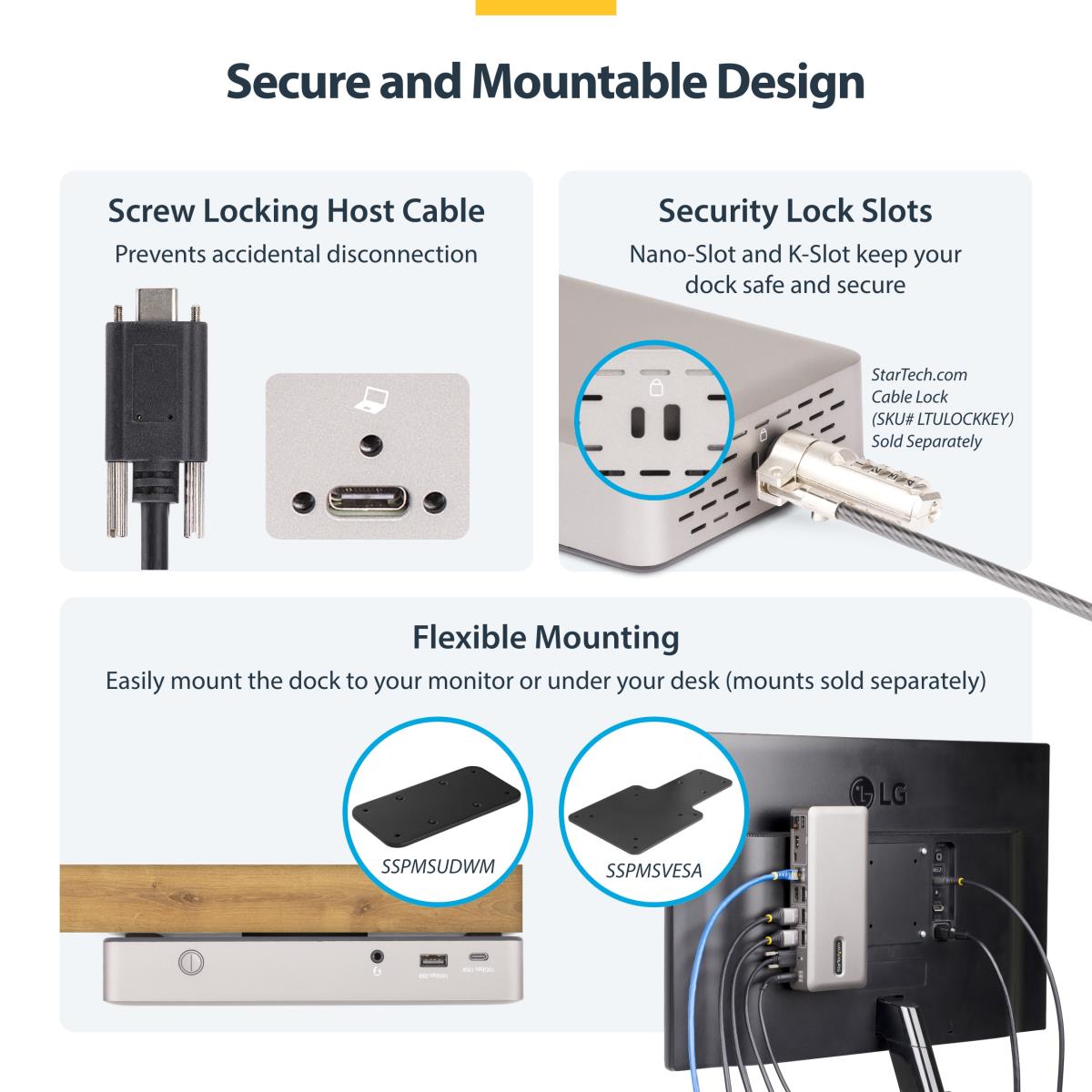

Driverless setup with native Windows and ChromeOS support. Built-in lock slots and VESA or surface mounting options (accessories sold separately) provide secure, flexible installation.
Enterprise Management Tools
StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features like MAC address pass-through, Wi-Fi auto switch, and USB device monitoring, the software helps IT teams streamline deployment and strengthen security across diverse setups.
Ports & interfaces
Connectivity technology
Wired
Host interface
USB4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.0
HDMI ports quantity
3
DisplayPorts quantity
3
Combo headphone/mic port
Yes
Headphone outputs
1
Headphone connectivity
3.5 mm
DC-in jack
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Wake-on-LAN ready
Yes
Full duplex
Yes
Performance
Card reader integrated
No
Data transfer rate
40 Gbit/s
HD type
4K Ultra HD
Maximum digital resolution
3840 x 2160 pixels
Number of displays supported
3
Maximum refresh rate
144 Hz

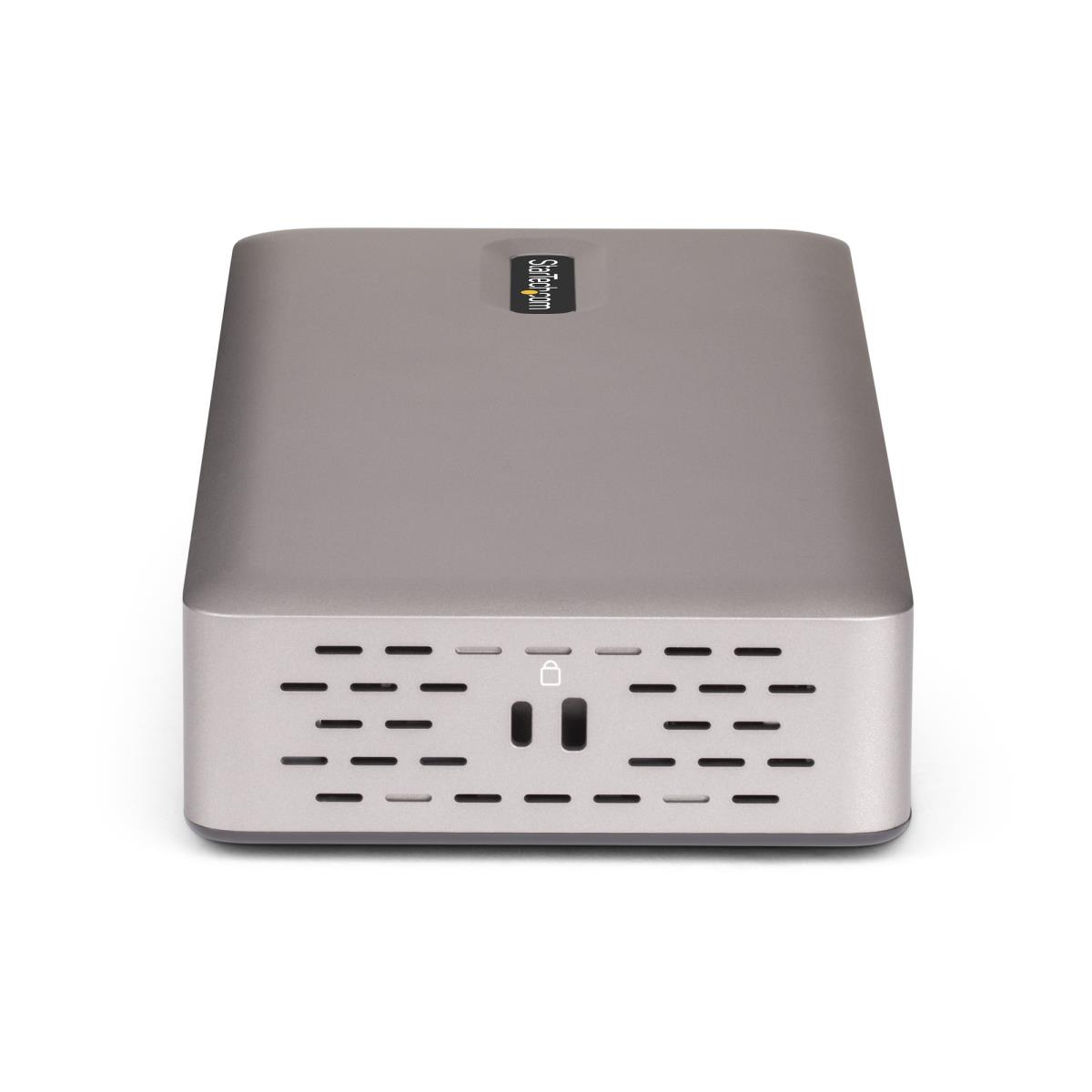

Cable lock slot
Yes
Cable lock slot type
Kensington, Nano
Product colour
Grey
UASP support
Yes
Power
AC input voltage
100 - 240 V
Input current
2.5 A
Output voltage
20 V
Output current
9 A
Power consumption (max)
180 W
Compatible power plug types
US
Software
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Other operating systems supported
ChromeOS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Weight & dimensions
Width
95 mm
Depth
210 mm
Height
34 mm
Weight
1.06 kg
Packaging data
Package width
145 mm
Package depth
235 mm
Package height
99 mm
Package weight
1.4 kg

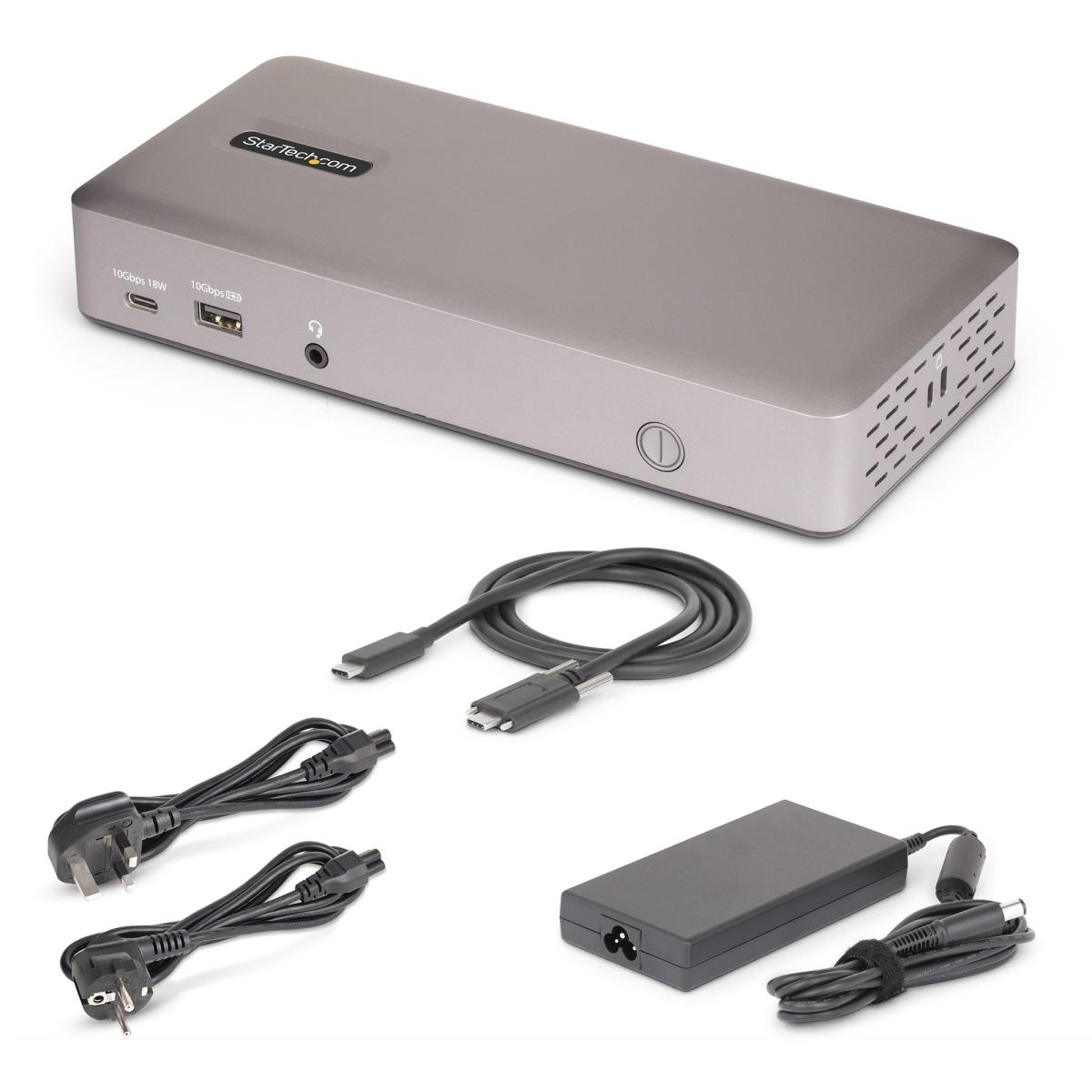

Packaging content
Cables included
USB Type-C
AC adapter included
Yes
Technical details
Compliance certificates
CE
Other features
Chipset
VIA - VL830, VIA - VL163, VIA - VL162, VIA - VL105, Realtek - RTL8156BS, Realtek - ALC4030U, Parade - PS8469
Logistics data
Products per master (outer) case
8 pc(s)
Master (outer) case width
310 mm
Master (outer) case length
380 mm
Master (outer) case height
285 mm
