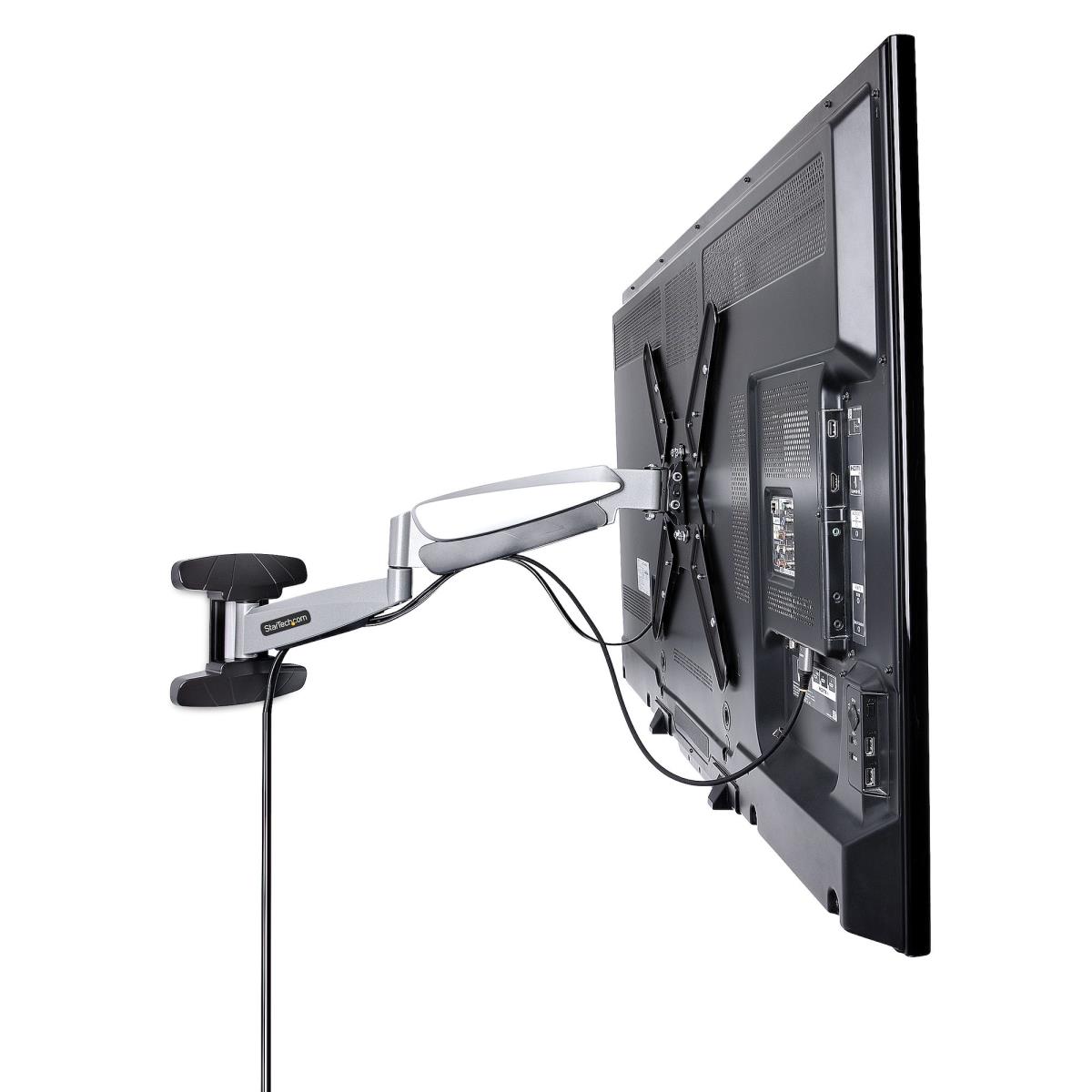

STARTECH.COM Vesa Tv Wall Mount Full Motion - Tv Mount For 23in - 55in

STARTECH.COM Vesa Tv Wall Mount Full Motion - Tv Mount For 23in - 55in

£95.71 (incl. VAT)

Qty:

Add to basket

Part Number:	FHA-TV-WALL-MOUNT
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

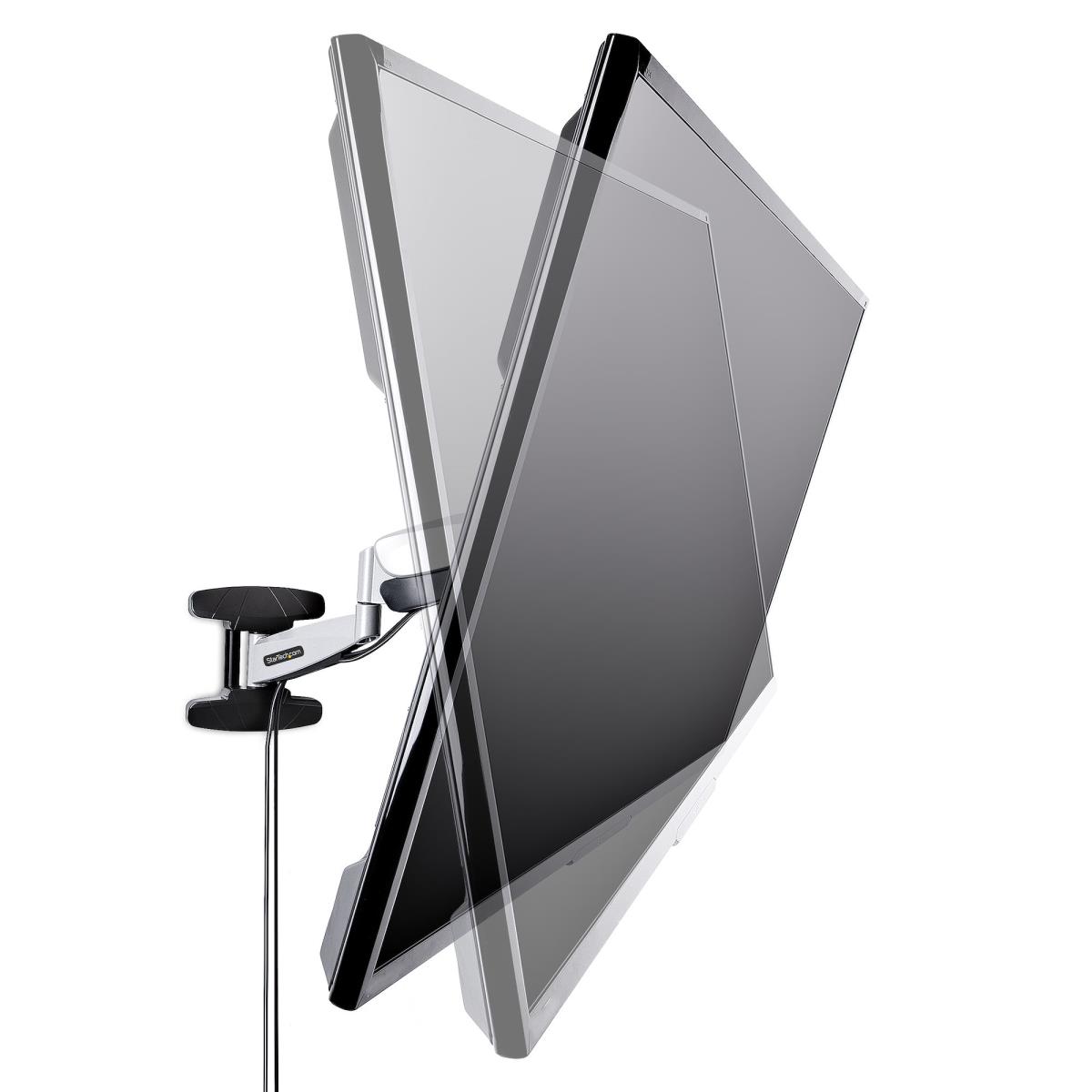

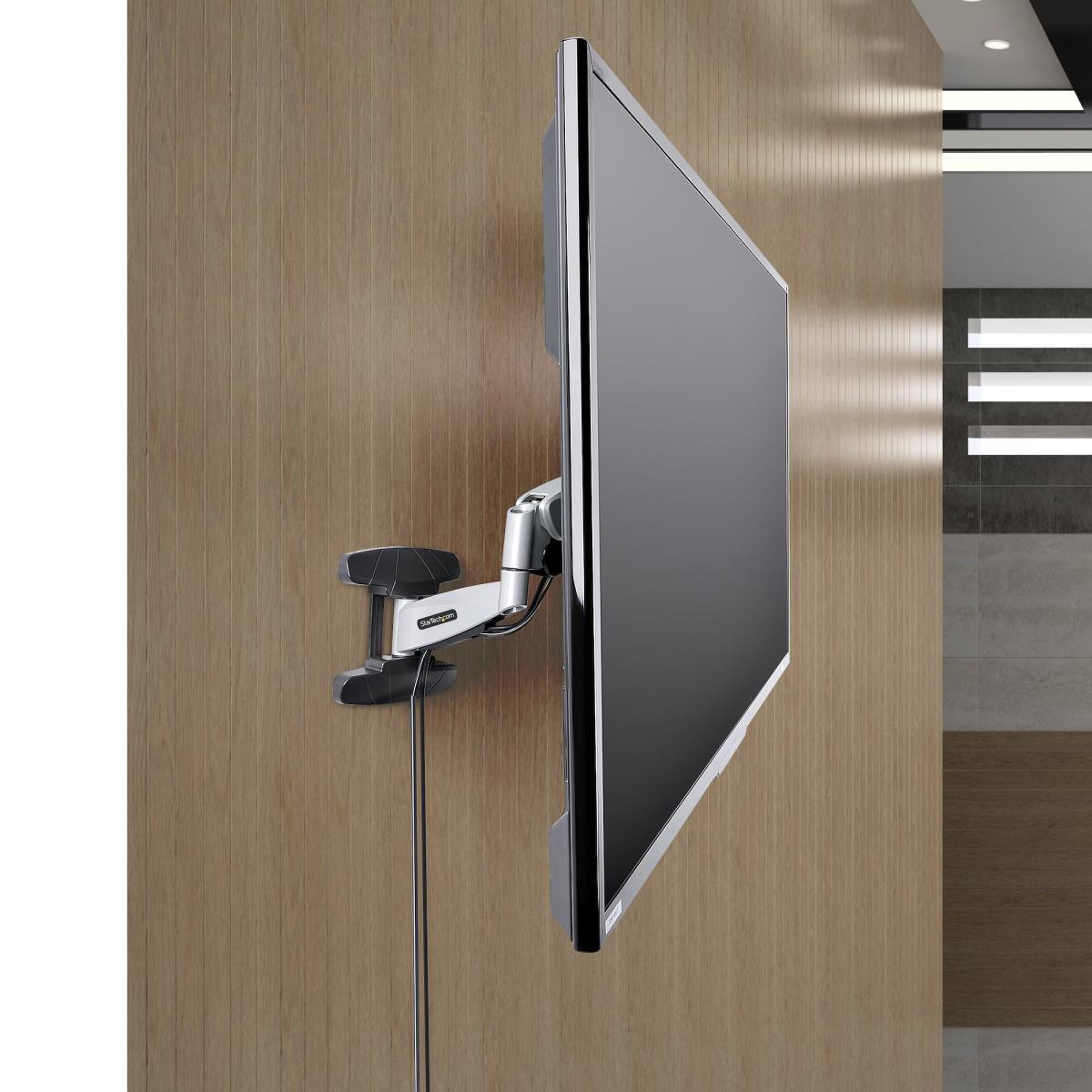

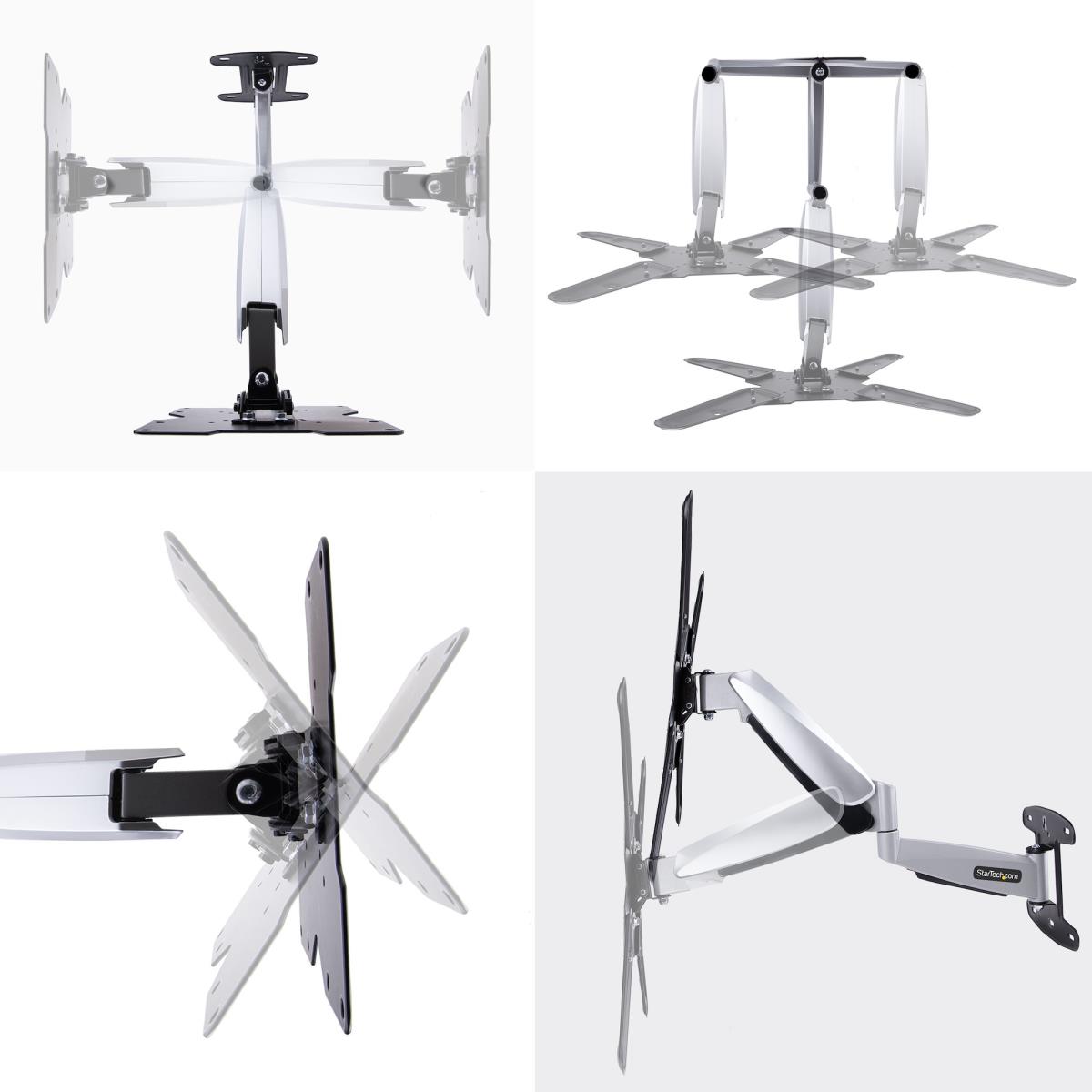

Mounting Hardware Included | One-touch Adjustments | Digital SignageThe steel and aluminum construction of this VESA TV Wall Mount supports TVs from 23" to 55" and up to 66lb (30kg). The arm assembly provides smooth one-touch height adjustment thanks to its spring-loaded mechanism that acts as a counterbalance. The VESA plate supports mounting patterns of 75x75 to 400x400.Versatile TV MountingSecurely mount a flat or curved-screen TV or digital signage in a convenient location for viewing by visitors, clients, and employees. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities. The lateral range of 3.54 ft (1.08m) is ideal for corner mounting. The jointed arm folds on itself and creates a slim profile from the wall of just 2.2in (5.8cm) for limited space installations. The minimum TV weight is 17.6lb (8kg). M5/M6/M8 Screws of various lengths and an assortment of washers and spacers enhance TV mounting compatibility. Mount into wood-stud or concrete walls, using the included hardware.Supported VESA mounting patterns: 75x75,100x100, 200x100, 200x200, 300x300, 400x200, and 400x400.Full-Motion AdjustmentThe VESA plate swivels +90 / -90 degrees, tilts +8 / -15 degrees, and rotates +3 / -3 degrees. Customize the viewing experience and comfort with these full-motion capabilities. The one-touch spring-assisted mechanism facilitates effortless height adjustments, with a range of up to 12.6in (32cm).The arm assembly extends up to 23.4 in (59.5 cm) from the wall to accommodate different viewing positions.Durable ConstructionThe robust steel and aluminum design safely and securely supports the TV. The arm assembly features built-in cable management and a wall mount cover for a an organized and visually appealing installation.The height adjustable TV wall mount is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage

Other features

Country of origin China

Mounting

Minimum screen size 58.4 cm (23")

Maximum weight capacity 30 kg

Maximum screen size 139.7 cm (55")

Minimum VESA mount 75 x 75 mm

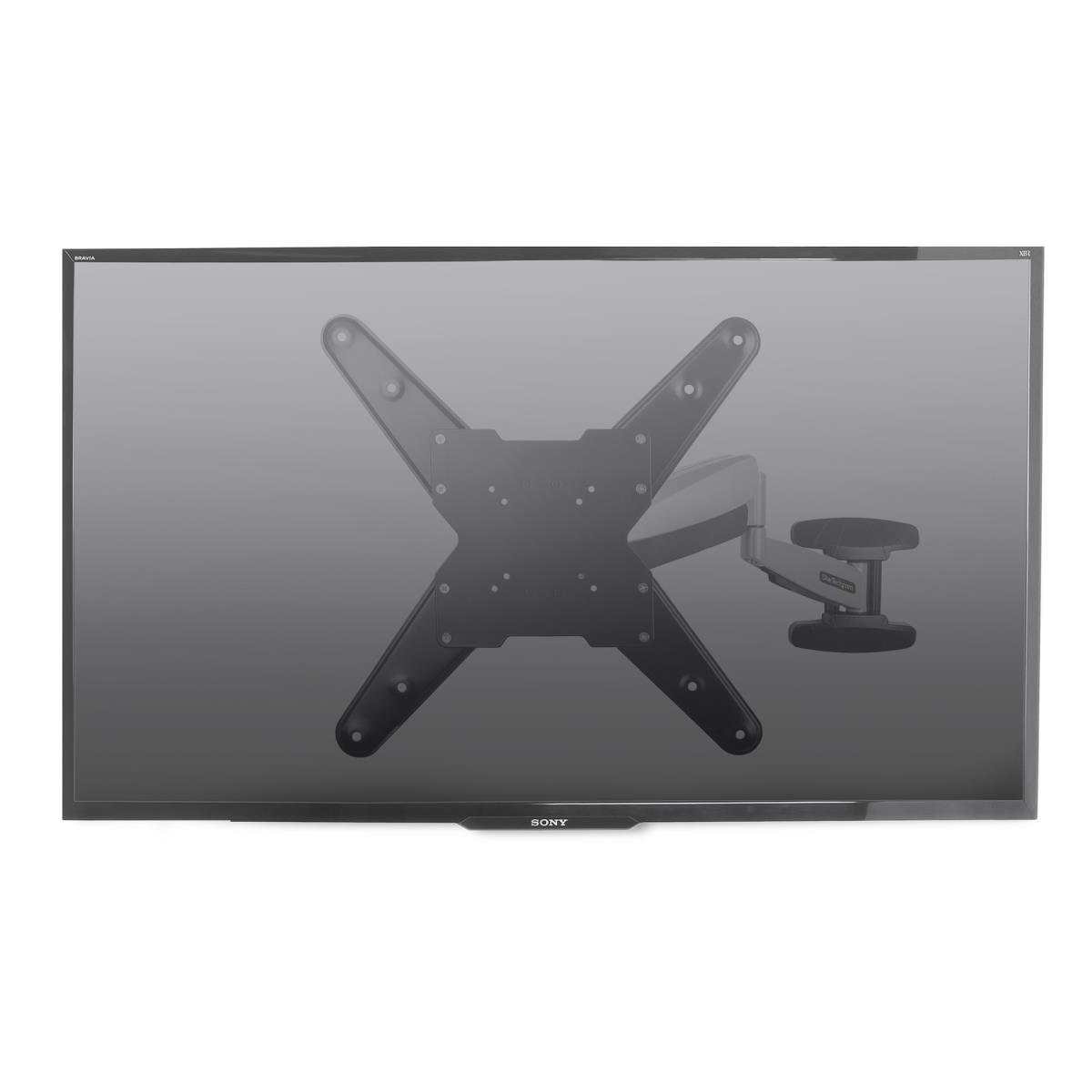

Maximum VESA mount 400 x 400 mm

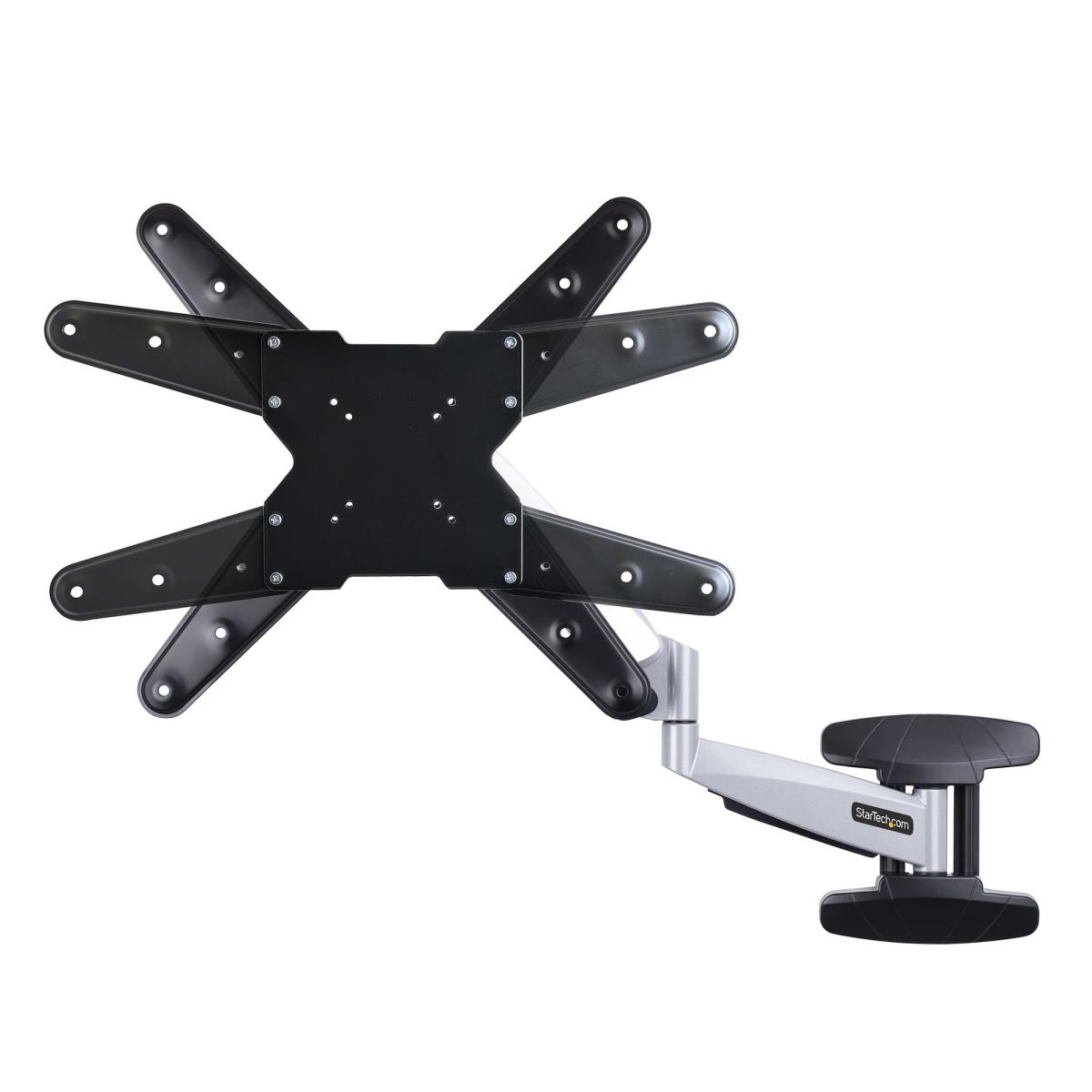

Panel mounting interface 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400

Number of displays supported 1

Mounting type Wall

Ergonomics

Height adjustment Y

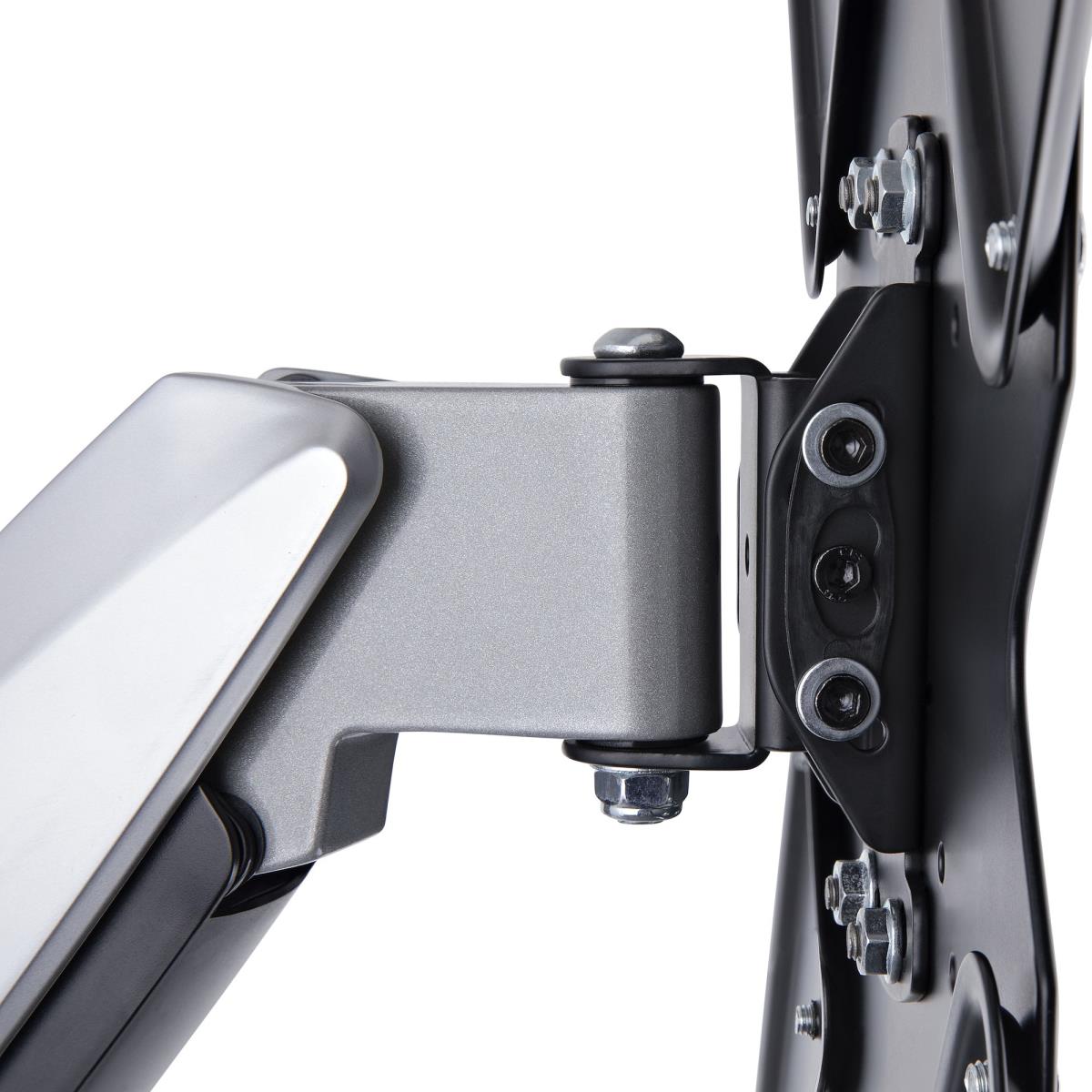

Tilt angle range -15 - 8°

Swivel angle 180°

Rotating Y

Angle of rotation 3°

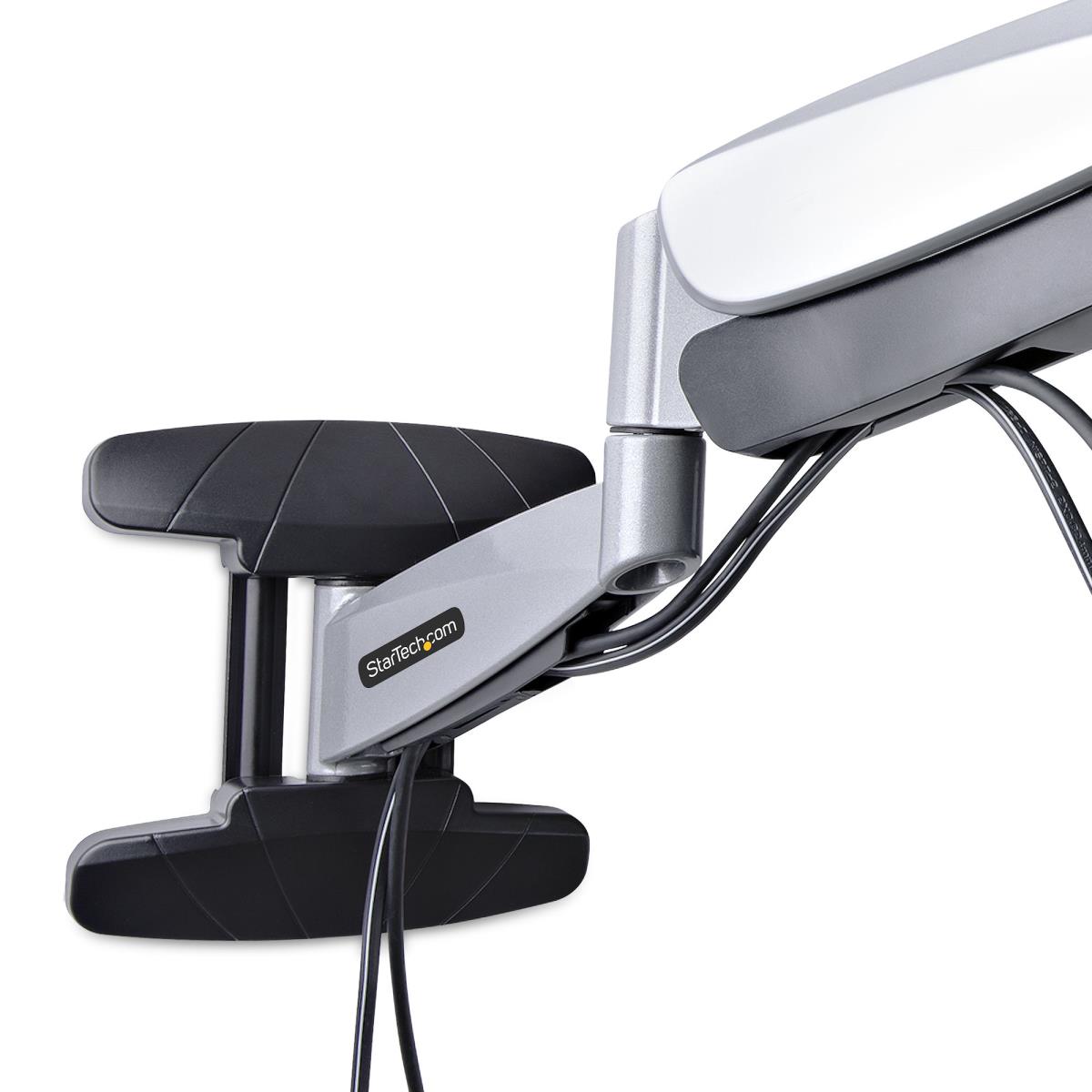

Cable management Y

Distance to the wall (max) 59.5 cm

Distance to the wall (min) 5.8 cm

Design

Product colour Black, Silver

Housing material Aluminium, Steel

Anti-theft function N

Technical details

VESA mount included Y

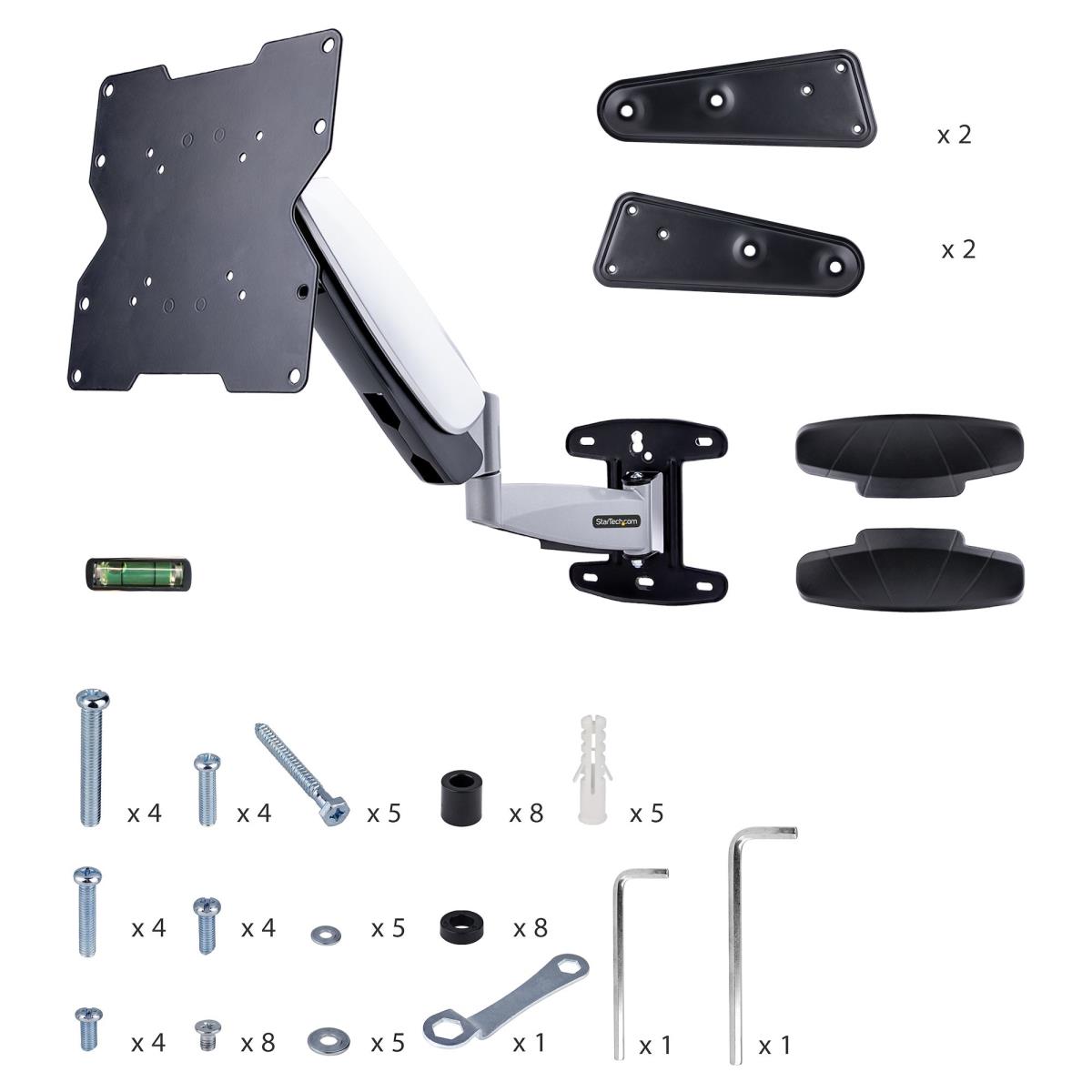

Packaging content

Wrench included Y

Wrench type Hexagonal wrench

Number of washers included 13

Number of spacers included 16

Screws included Y

Number of screws 33

Manual Y

Mounting plate included Y

Weight & dimensions

Width 450 mm

Depth 595 mm

Height 450 mm

Weight 6 kg

Packaging data

Package width 585 mm

Package depth 440 mm

Package height 95 mm

Package weight 6.1 kg

Logistics data

Master (outer) case width 605 mm

Master (outer) case length 460 mm

Master (outer) case height 305 mm

Products per master (outer) case 1 pc(s)
