Product Details
Introduction

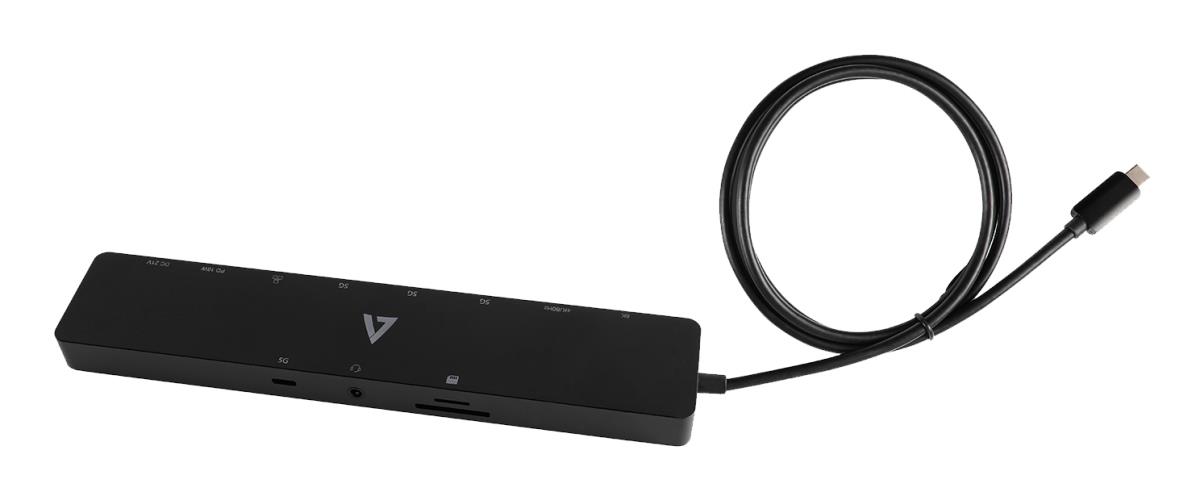

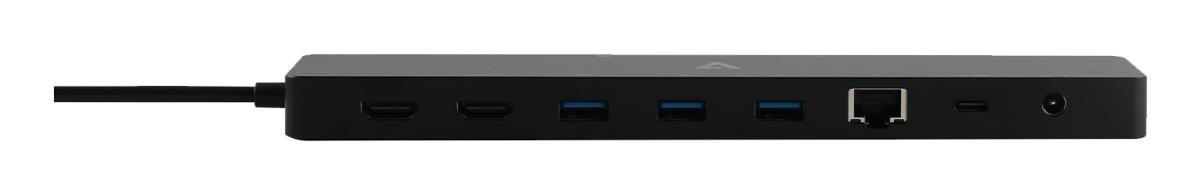

The USB-C Alt Mode Dual Display Docking Station is a versatile solution for expanding your laptop's capabilities. With its dual HDMI ports, you can connect two external monitors and enjoy a multi-screen setup for enhanced productivity. Additionally, the docking station offers three USB-A ports for connecting various peripherals, SD/Micro SD card slots for easy file transfer, Gigabit Ethernet for a reliable internet connection, and a 3.5mm audio jack for your headphones or speakers. The USB-C Power Delivery feature allows you to charge your laptop directly from the docking station, using the included 130w power supply for optimal performance.
Ports & interfaces
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
18 W
Connectivity technology
Wired
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
HDMI ports quantity
2
DisplayPorts quantity
2
Microphone in
Yes
Headphone outputs
1
Headphone connectivity
3.5 mm
USB connector type
USB Type-A, USB Type-C
DC-in jack
Yes
Performance
Compatible memory cards
SD, MicroSD (TransFlash)
Housing material
Aluminium
Card reader integrated
No
Optical drive included
No
Data transfer rate
5 Gbit/s
Maximum digital resolution
5120 x 2880 pixels
Number of displays supported
2
Product colour
Black
On/off switch
Yes
Charging function
Yes
Country of origin
China
Brand compatibility
Any brand
Certification
CE, FCC
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-10 - 70 °C
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Audio
Built-in speaker(s)
No
Power
Power source type
AC
Output voltage
19 V
Output current
3.42 A
Power consumption (max)
65 W
Software
Windows operating systems supported
Windows 10, Windows 7, Windows 8, Windows 8.1
Mac compatibility
Yes
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Weight & dimensions
Width
225 mm
Depth
25 mm
Height
85 mm
Weight
362 g
Packaging data
Quantity per pack
1 pc(s)
Package width
270 mm
Package depth
68 mm
Package height
180 mm
Package weight
1.57 kg
Packaging content
Cables included
AC, USB, USB Type-C
AC adapter included
Yes
Quick start guide
Yes
Technical details
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
84733020
Information
| Part Number: | DOCKUCPT2D |
