Product Details
Introduction

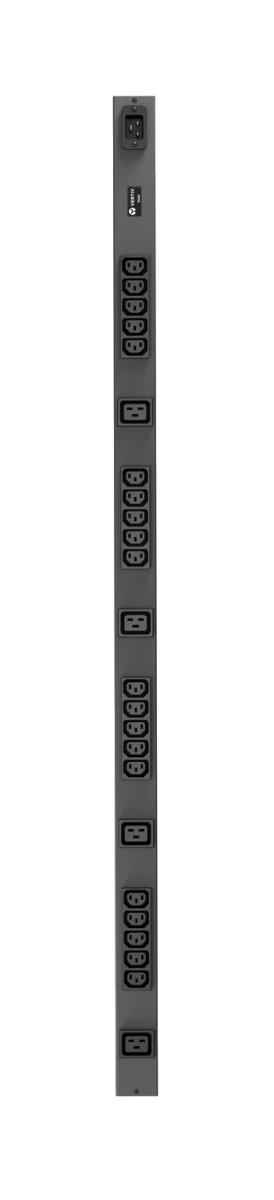

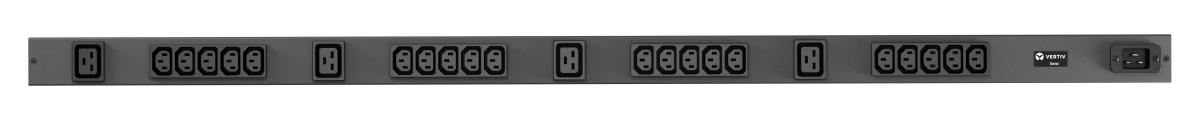

The Vertiv Geist Basic Rack PDU VP7552 is a 16A, 230V, 0U vertical rack power distribution unit (PDU). It has 20 IEC C13, 4 IEC C19 outlets, and an IEC 60320 C20 power inlet. Vertiv Geist Basic Rack PDUs are UL-listed and are not batch-tested. The RoHS-compliant rPDUs undergo rigorous individual tests for reliability and functionality before shipping. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.
Design
PDU types
Basic
Rack capacity
0U
Mounting
Vertical
Product colour
Black
Ports & interfaces
AC outlets quantity
24 AC outlet(s)
Power plug
C20 coupler
AC outlet types
C13 coupler, C19 coupler
Output connections
20 x C13 & 4 x C19
Features
LED indicators
N
Certification
CE, RoHS, CB
Power
Nominal input voltage
230 V
AC input frequency
50 Hz
Maximum current
16 A
Load capacity
3600 VA
Weight & dimensions
Dimensions (WxDxH)
1207 x 51 x 51 mm
Weight
3.1 kg
Packaging data
Package dimensions (WxDxH)
1270 x 127 x 77 mm
Package weight
3.63 kg
Package width
1207 mm
Package depth
51 mm
Package height
51 mm
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Technical details
Sustainability certificates
RoHS
Information
| Part Number: | VP7552 |
