Introduction

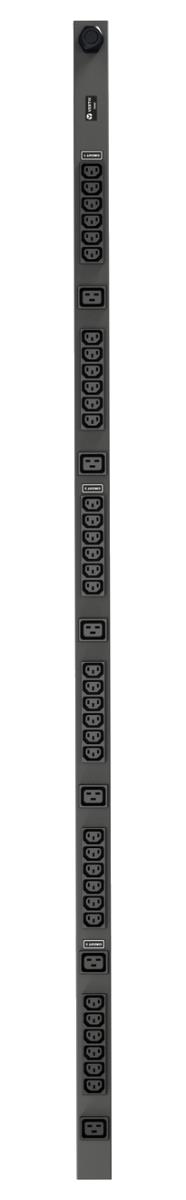

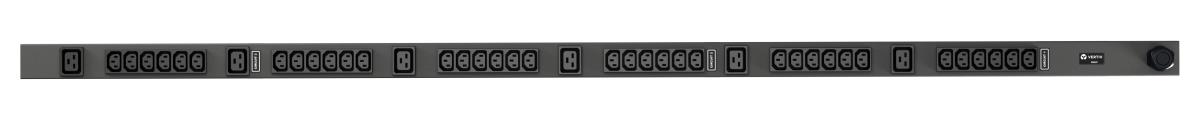

The Vertiv Geist Basic Rack PDU VP7557 is a 16A, 230/400V WYE, 0U vertical rack power distribution unit (PDU). It has 36 C13, 6 C19 outlets, and a 3P+N+E(IP44) plug that provides 11.0kW in power capacity. Vertiv Geist Basic Rack PDUs are UL-listed and are not batch-tested. The RoHS-compliant rPDUs undergo rigorous individual tests for reliability and functionality before shipping. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.
Design
PDU types
Basic
Type
Three-phase
Rack capacity
0U
Mounting
Vertical
Product colour
Black
Ports & interfaces
AC outlets quantity
42 AC outlet(s)
Power plug
IEC 60309
AC outlet types
C13 coupler, C19 coupler
Output connections
36 x C13 & 6 x C19
Features
LED indicators
N
Cable length
3 m
Certification
CE, RoHS, CB
Power
Nominal input voltage
230/400 V
AC input frequency
50 Hz
Load capacity
11000 VA
Maximum input current per phase
16 A
Weight & dimensions
Dimensions (WxDxH)
1683 x 51 x 51 mm
Weight
6.6 kg
Packaging data
Package dimensions (WxDxH)
1829 x 223 x 159 mm
Package weight
7.71 kg
Package width
1683 mm
Package depth
51 mm
Package height
51 mm
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Technical details
Sustainability certificates
RoHS
Information
| Part Number: | VP7557 |
