Introduction
21st Century Classroom Collaboration

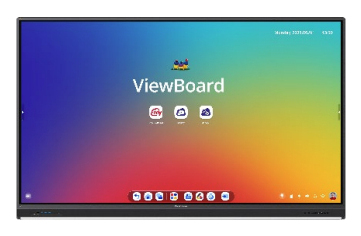

ViewBoard® Interactive Displays
ViewSonic® ViewBoard® interactive displays deliver an immersive learning experience in any classroom environment. Featuring high-accuracy touchscreens, these interactive displays deliver an intuitive digital whiteboard experience for everyone from the youngest of students to the most experienced teachers.
Every ViewSonic ViewBoard interactive display includes complimentary access to myViewBoard software to deliver an unparalleled classroom experience. With this innovative hardware and software combination, teachers can engage students like never before with dynamic lesson creation, real-time collaboration, and immersive multimedia presentations.
Display
Display diagonal
165.1 cm (65")
Display brightness
450 cd/m²
Display number of colours
1.07 billion colours
Display resolution
3840 x 2160 pixels
HD type
4K Ultra HD
Panel type
IPS
LED backlight
Yes
LED backlighting type
Direct-LED
Native aspect ratio
16:9
Response time
6.5 ms
Touchscreen
Yes
Touch technology
Multi-touch
Touchscreen type
Infrared
Number of simultaneous touchpoints
40
Touch system response time
5 ms
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Working area
1428.48 x 803.52 mm
Ports & interfaces
HDMI ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Interface module USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
3
USB 2.0 ports quantity
1
USB 2.0 Type-A hub ports quantity
1
USB Type-C ports quantity
4
USB Type-C DisplayPort Alternate Mode
Yes
HDMI version
2.1
HDMI output ports quantity
4
DisplayPort version
1.2
DisplayPorts quantity
1
Ethernet LAN (RJ-45) ports
2
Headphone connectivity
3.5 mm
RS-232 ports
1
Computer system
Operating system installed
Android
Operating system version
13
Built-in processor
Yes
Processor architecture
ARM Cortex A73 + ARM Cortex A53
Processor cores
8
User memory
128 GB
RAM capacity
16 GB
Graphics card family
ARM
Graphics card
Mali-G52
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
Speaker power
20 W
Built-in subwoofer
Yes
Subwoofer RMS power
20 W
Built-in microphone
Yes
Number of microphone arrays
8
Projector
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Ergonomics
Product colour
Black
VESA mounting
Yes
Panel mounting interface
600 x 400 mm
Wall mountable
Yes
Power
Power consumption (max)
384.9 W
Power consumption (typical)
182.7 W
Power consumption (off)
0.5 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Weight & dimensions
Width
1485.7 mm
Depth
118 mm
Height
934.6 mm
Weight
39 kg
Packaging data
Package width
1660 mm
Package depth
220 mm
Package height
1045 mm
Package weight
48.8 kg
Quantity per pack
1 pc(s)
Packaging content
Manual
Yes
USB cable length
3 m
Cables included
AC, HDMI, USB
Remote control included
Yes
Mounting kit
Yes
Number of stylus pens
2
Logistics data
Pallet gross width
168.5 cm
Pallet gross length
114 cm
Pallet gross height
116 cm
Products per master (outer) case
1 pc(s)
