Introduction

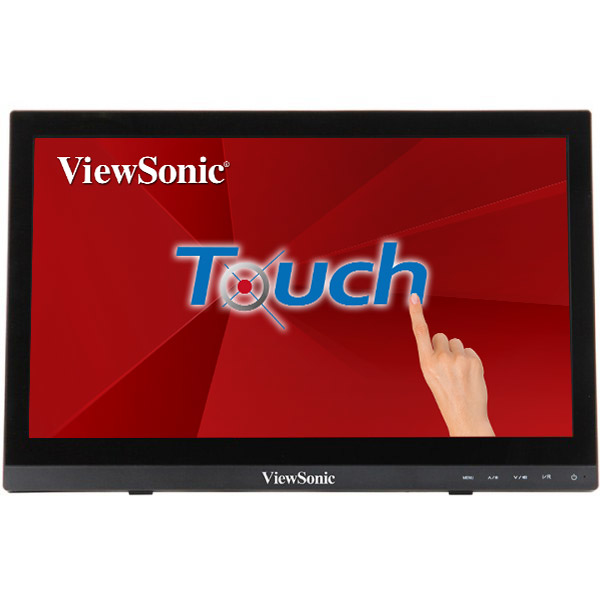

10-Point Projected Capacitive Touch
Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.
10-point Multi-touch

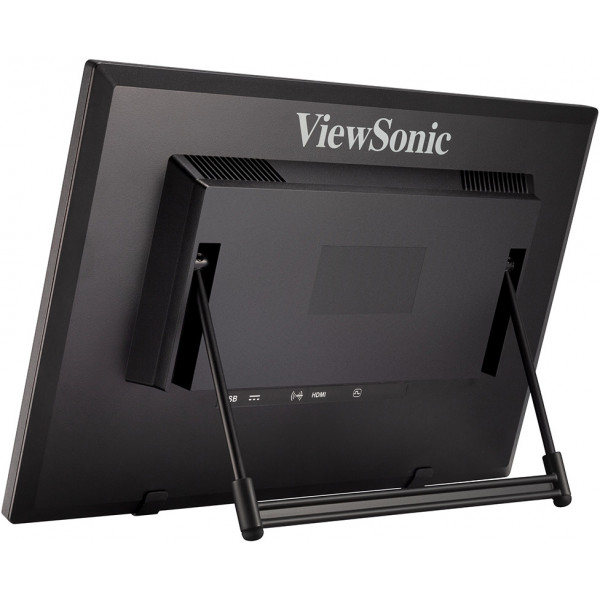

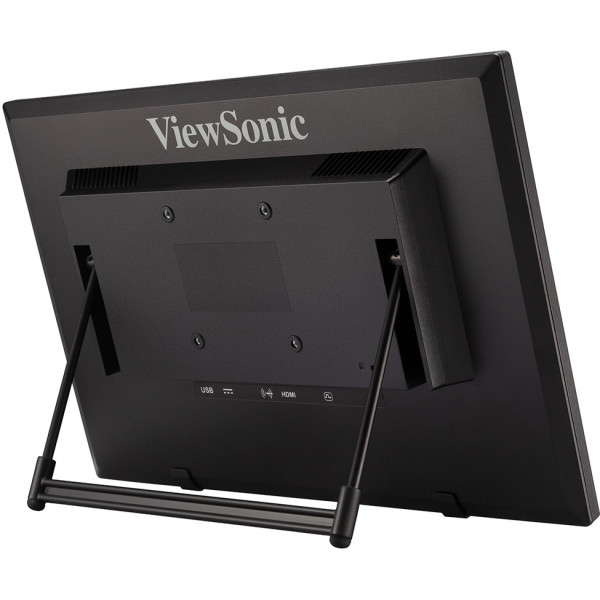

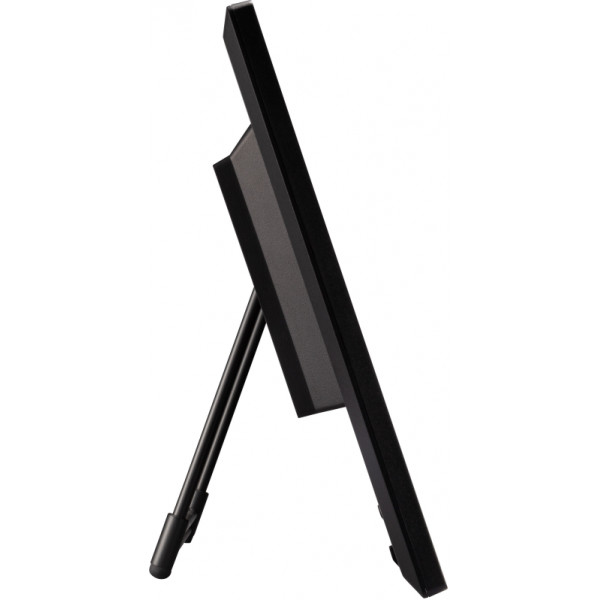

Advanced ergonomic stand design

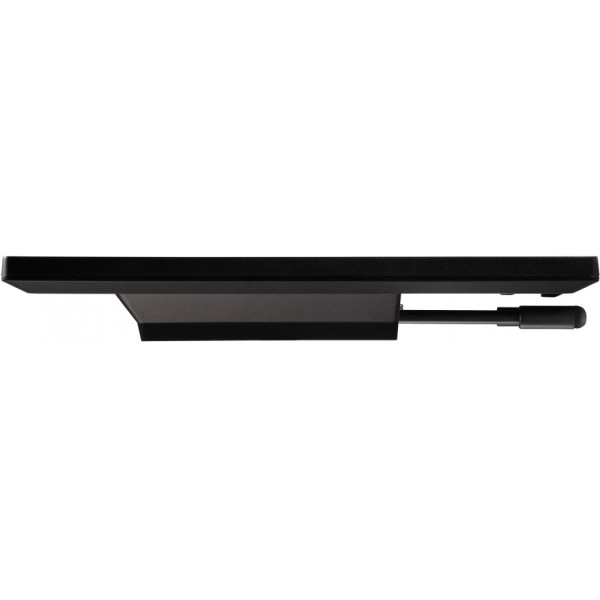

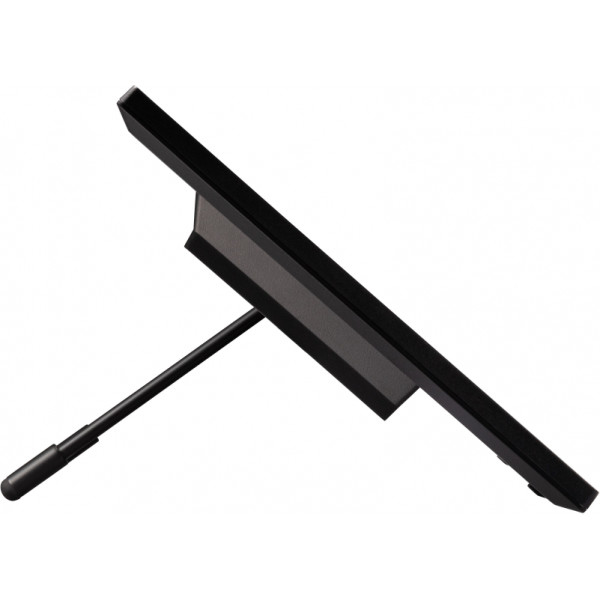

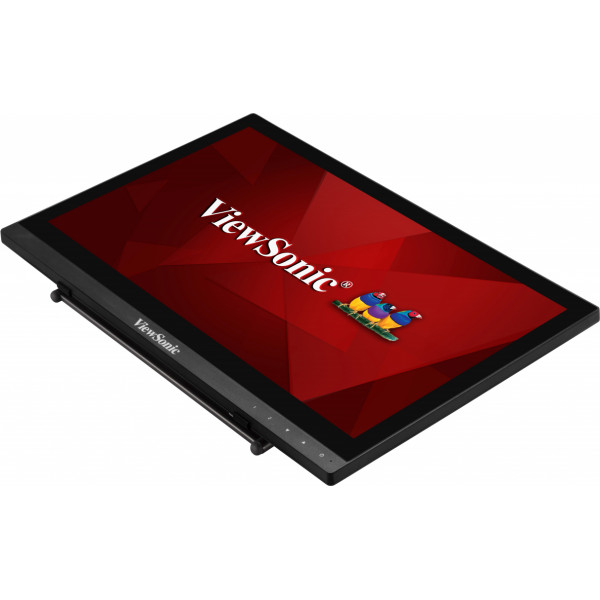

A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilt or lay completely flat on a tabletop for a more comfortable work environment.
Ergonomic stand
Versatile Connectivity
HDMI and VGA inputs give you the freedom to connect your monitor to a variety of devices.
Cross-platform compatibility
Cross compatibility with a wide range of operating systems including Windows 10 and certain Linux versions.
Supports Windows 7/8/10, Linux Kernel 4.X/3.X
Windows 10, Linux
Durable, Scratch-resistant Screen
This touch display is equipped with a durable, protective glass faceplate, resulting in increased durability with scratch protection; as well as a consistent, high-quality touch experience in high-traffic areas like public spaces where the touch display can be used as a kiosk.
7H Hardness
Dual integrated speakers
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
Dual integrated speakers
Enhanced Viewing Comfort
Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
Blue light filter Flicker Free

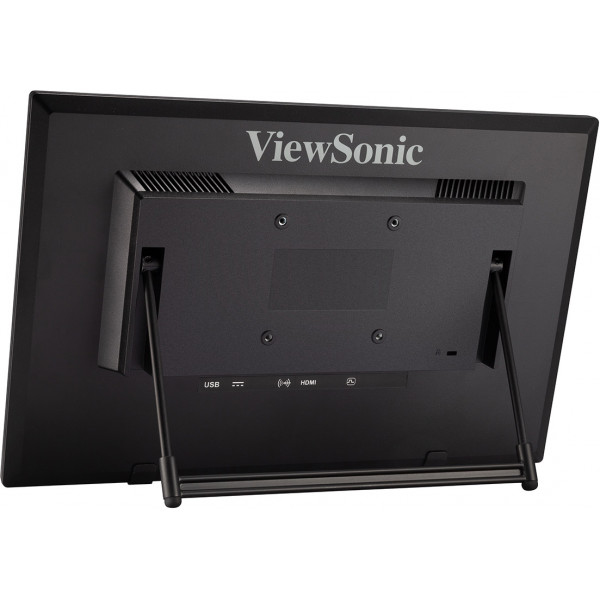

VESA-compatible mount
Conveniently mount the monitor to your liking by utilizing VESA compatible mount design.
Other features
Weight
1.3 kg
Display viewable area (HxV)
344.23 x 193.54 mm
Logistics data
Pallet gross width
120 cm
Pallet gross length
100 cm
Pallet gross height
2.17 m
Products per master (outer) case
1 pc(s)
Harmonized System (HS) code
85285210
Sustainability
European Product Registry for Energy Labelling (EPREL) code
391332
Sustainability certificates
ErP
Sustainability certificates
CE, ErP, REACH, RoHS
Display
Display diagonal
39.6 cm (15.6")
Display resolution
1366 x 768 pixels
Panel type
TN
HD type
HD
Display technology
LCD
High frequency rate
60 Hz
Native aspect ratio
16:9
Response time
12 ms
Display brightness
220 cd/m²
Contrast ratio (typical)
500:1
Pixel pitch
0.252 x 0.252 mm
Horizontal scan range
30 - 61 kHz
Vertical scan range
56 - 75 Hz
Viewing angle, horizontal
90°
Viewing angle, vertical
60°
Display viewable area (HxV)
344.23 x 193.54 mm
Contrast ratio (dynamic)
10000000:1
Display diagonal (metric)
39.6 cm
Supported graphics resolutions
640 x 480 (VGA),720 x 400,720 x 480,720 x 576,800 x 600 (SVGA),832 x 624,1024 x 768 (XGA),1152 x 870,1280 x 720 (HD 720),1366 ? 768
Display number of colours
262144 colours
Display diagonal
39.6 cm (15.6")
Display resolution
1366 x 768 pixels
HD type
HD
Native aspect ratio
16:9
Display technology
LCD
Panel type
TN
Touchscreen
Yes
Touchscreen type
Multi-user
Touchscreen technology
Projected capacitive system
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Response time
12 ms
Screen shape
Flat
Supported graphics resolutions
640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 720 (HD 720), 1366 x 768
Contrast ratio (typical)
500:1
Contrast ratio (dynamic)
10000000:1
Maximum refresh rate
60 Hz
Viewing angle, horizontal
90°
Viewing angle, vertical
60°
Display number of colours
262144 colours
Pixel pitch
0.252 x 0.252 mm
Horizontal scan range
30 - 61 kHz
Vertical scan range
56 - 75 Hz
Display diagonal (metric)
39.6 cm
Display brightness
220 cd/m²
Technical details
Compliance certificates
CE, REACH, RoHS
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Windows operating systems supported
Windows 10, Windows 7, Windows 8
Mac operating systems supported
Yes
Touch technology
Multi-touch
Touchscreen technology
Projected capacitive system
Touchscreen type
Multi-user
Number of simultaneous touchpoints
10
Built-in speaker(s)
Y
RMS rated power
2 W
Number of speakers
2
Built-in camera
N
Built-in microphone
N
Windows operating systems supported
Windows 10,Windows 7,Windows 8
Mac operating systems supported
Y
Multimedia
Built-in speaker(s)
Yes
Built-in camera
No
Number of speakers
2
RMS rated power
2 W
Built-in microphone
No
Design
Product colour
Black
Certification
CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS
Product colour
Black
Ports & interfaces
Built-in USB hub
Yes
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
HDMI version
1.4
Audio input
1
Built-in USB hub
Y
HDMI
Y
HDMI ports quantity
1
HDMI version
1.4
VGA (D-Sub) ports quantity
1
Audio input
1
Ergonomics
VESA mounting
Yes
Panel mounting interface
75 x 75 mm
Wall mountable
Yes
Tiltable
Yes
Tilt angle range
15 - 50°
Tilt angle range
15 - 50°
Tiltable
Y
Panel mounting interface
75 x 75 mm
Wall mountable
Y
VESA mounting
Y
Power
Energy efficiency class (SDR)
B
Energy consumption (SDR) per 1000 hours
6 kWh
Power consumption (typical)
5.5 W
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Power supply type
AC
Energy efficiency class (SDR)
B
Energy consumption (SDR) per 1000 hours
6 kWh
Power supply type
AC
Power consumption (typical)
5.5 W
AC input voltage
100-240 V
AC input frequency
50/60 Hz
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 85%
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 85%
Storage relative humidity (H-H)
5 - 90%
Packaging content
Cables included
AC, Audio (3.5mm), USB, VGA
Cables included
AC, Audio (3.5mm), USB, VGA
Weight & dimensions
Width (with stand)
379.2 mm
Depth (with stand)
37.1 mm
Height (with stand)
247.1 mm
Weight (with stand)
1.32 kg
Width (with stand)
379.2 mm
Depth (with stand)
37.1 mm
Height (with stand)
247.1 mm
Weight (with stand)
1.32 kg
Packaging data
Package width
453 mm
Package depth
86 mm
Package height
389 mm
Package weight
2.5 kg
Package width
453 mm
Package depth
86 mm
Package height
389 mm
Package weight
2.5 kg
Certificates
Certification
CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS
