Introduction

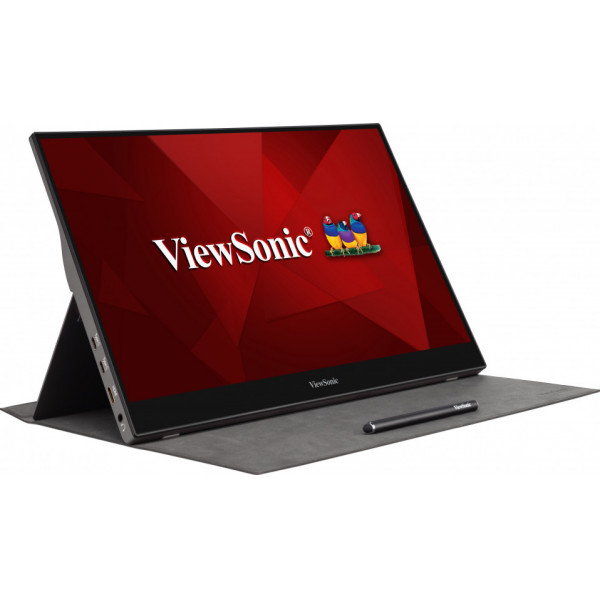

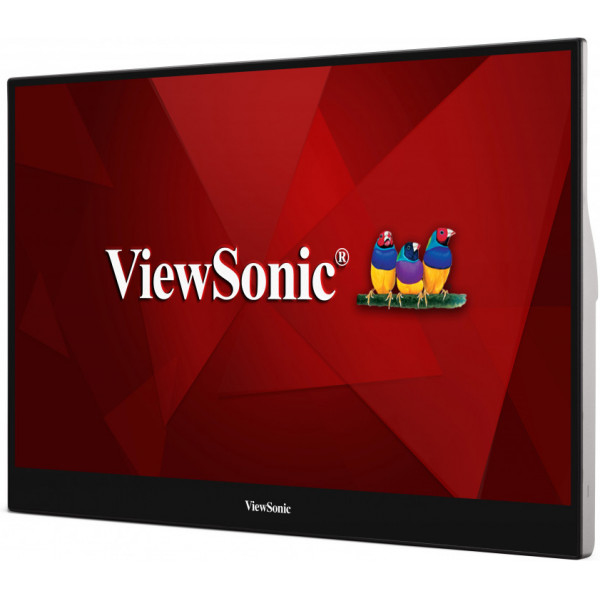

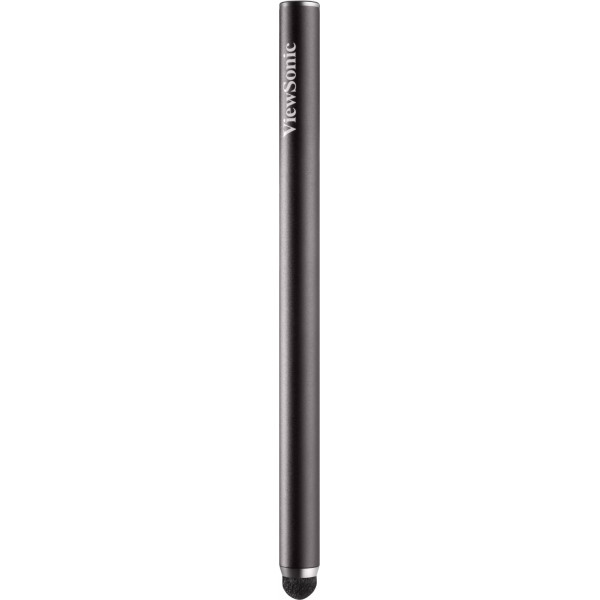

The ViewSonic® TD1655 is a portable 15.6" touch display designed for productivity on the go. Built for business travelers, remote workers, and digital nomads, the TD1655 can serve as a complementary touchscreen to a laptop or tablet for boosted productivity. With an anti-glare screen and Full HD 1080p resolution, this touch display delivers a crystal-clear viewing experience so users can see more and do more for a more efficient workflow. In addition, with a 10-point projective capacitive touchscreen and included stylus pen, the TD1655 delivers a smooth and natural writing experience and streamlined navigation with every tap, pinch, and swipe. A USB Type-C port enables quick and easy transmission of video, and audio. A second USB Type-C port also delivers up to 60W of two-way power: a connected laptop can power the TD1655, OR the TD1655 can power a connected laptop via a USB-C power bank or AC adapter and outlet. Measuring less than an inch thick and weighing only two pounds, the ultra-slim TD1655 perfectly fits into any bag, briefcase, or backpack so you can work wherever life takes you.
ULTRA-PORTABLE DESIGN
Measuring a mere 0.6" thick and weighing about 2 pounds, this compact monitor can be easily packed and transported wherever you go.
ADVANCED TOUCH CAPABILITIES AND SCREEN PERFORMANCE
An advanced in-cell capacitive touchscreen provides a smooth and responsive experience with every tap, pinch, and swipe, while also delivering awesome front-of-screen performance and incredible images.

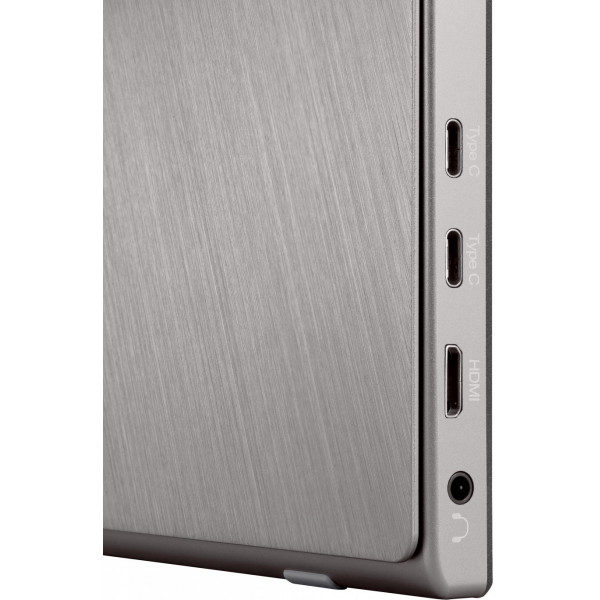

2-WAY POWER WITH USB TYPE-C

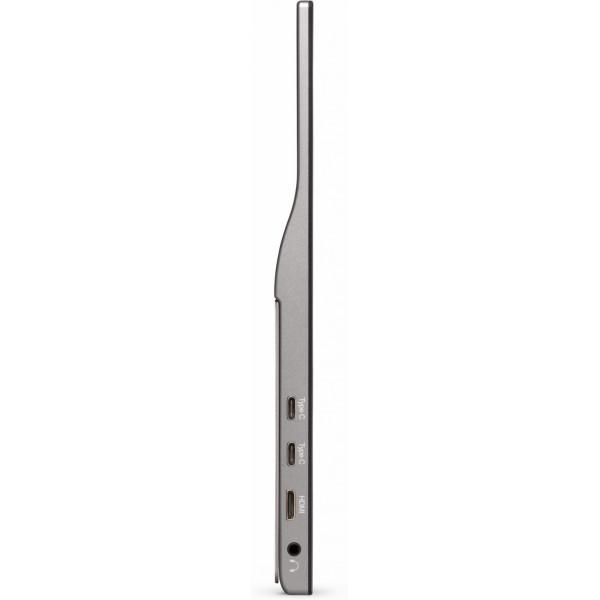

Dual USB Type-C ports deliver audio, and video over a single cable. What's more, these USB Type-C ports also deliver two-way power: a connected laptop can power the monitor, or the monitor can power a connected laptop via USB-C power bank or AC adapter and outlet.

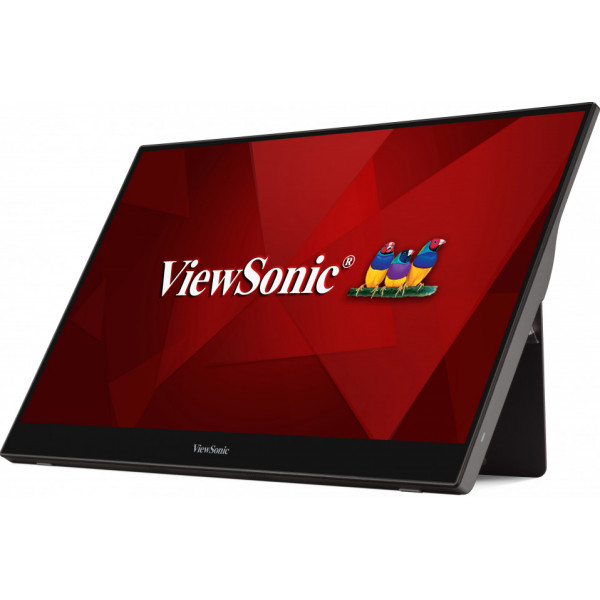

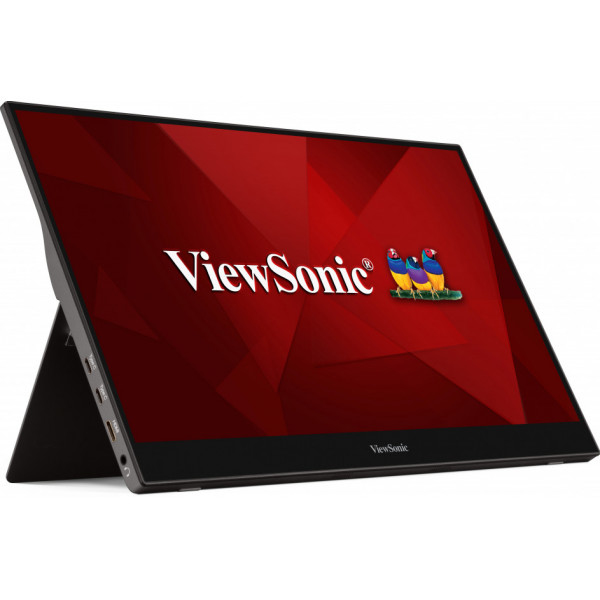

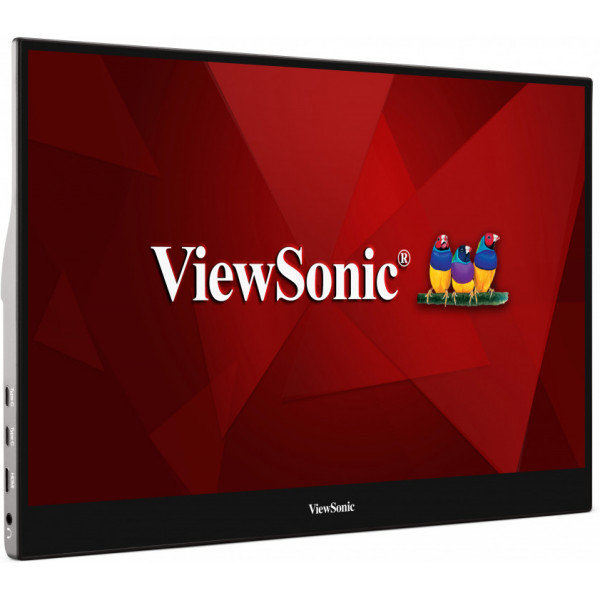

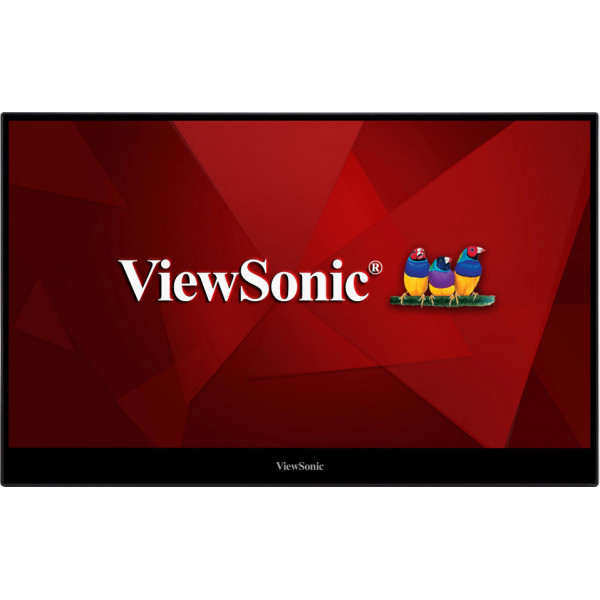

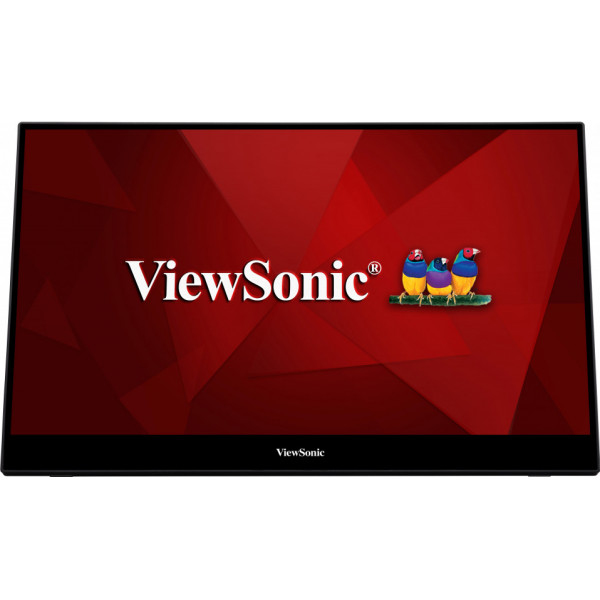

FRAMELESS DESIGN
A premium panel delivers accurate colors and vivid images, while a frameless design provides for a nearly seamless viewing experience in multi-monitor setups. And with ultra-wide viewing angles, you'll enjoy stunningly detailed images, unbound and without borders, no matter your vantage point.

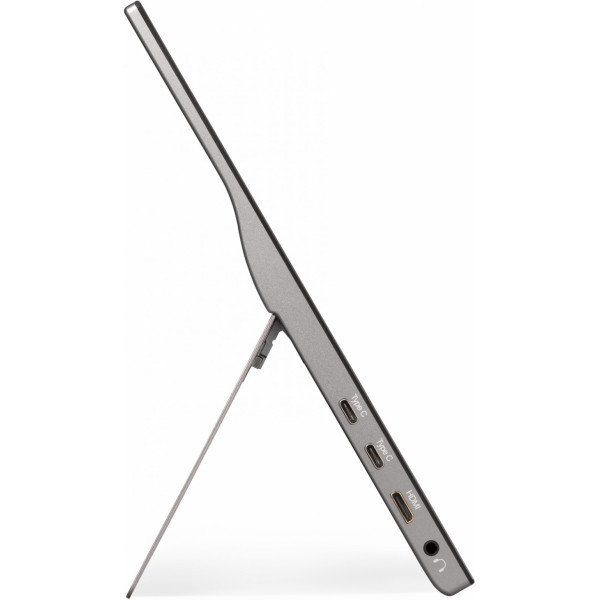

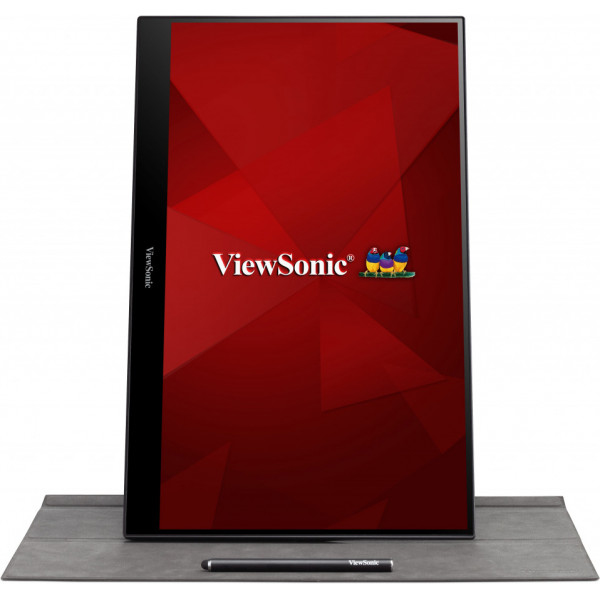

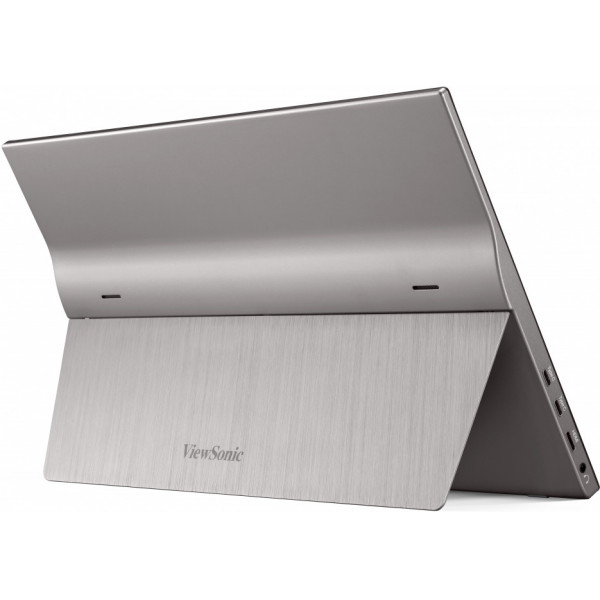

BUILT-IN STAND
A convenient built-in stand enables you to orient the screen in both portrait and landscape modes.
DUAL INTEGRATED SPEAKERS
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
ENHANCED VIEWING COMFORT
A Blue Light Filter helps to eliminate eye strain from extended viewing periods.
Power
Energy efficiency class (HDR)
Not available
Power consumption (off)
0.2 W
Energy efficiency class (SDR)
C
Energy consumption (SDR) per 1000 hours
8 kWh
Power consumption (typical)
8 W
Power consumption (standby)
0.5 W
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Power supply type
AC
Energy efficiency class (SDR)
C
Energy consumption (SDR) per 1000 hours
8 kWh
Power supply type
AC
Power consumption (typical)
8 W
Power consumption (standby)
0.5 W
AC input voltage
100-240 V
AC input frequency
50/60 Hz
Ports & interfaces
USB upstream port type
USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
Built-in USB hub
Yes
Audio output
1
Built-in USB hub
Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
Audio output
1
Other features
Weight
1 kg
Display viewable area (HxV)
344 x 194 mm
Logistics data
Pallet gross width
120 cm
Pallet gross length
100 cm
Pallet gross height
196.8 cm
Products per master (outer) case
4 pc(s)
Harmonized System (HS) code
85285210
Technical details
Native refresh rate
60 Hz
Compliance certificates
CE, REACH, RoHS
Sustainability
European Product Registry for Energy Labelling (EPREL) code
385512
Sustainability certificates
EPEAT Bronze
Sustainability certificates
CE, EPEAT Bronze, REACH, RoHS
Display
Display diagonal
39.6 cm (15.6")
Display resolution
1920 x 1080 pixels
Panel type
IPS
HD type
Full HD
Display technology
LED
High frequency rate
60 Hz
Native aspect ratio
16:9
Response time
6.5 ms
Display brightness
250 cd/m˛
Contrast ratio (typical)
800:1
Pixel pitch
0.179 x 0.179 mm
Horizontal scan range
15 - 82 kHz
Vertical scan range
50 - 75 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display viewable area (HxV)
344 x 194 mm
Contrast ratio (dynamic)
80000000:1
Display diagonal (metric)
39.6 cm
Supported graphics resolutions
640 x 480 (VGA),720 x 400,720 x 480,720 x 576,800 x 600 (SVGA),832 x 624,1024 x 768 (XGA),1152 x 870,1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 800 (WXGA),1280 x 960,1360 x 768 (WXGA),1366 ? 768,1400 x 1050 (SXGA+),1440 x 900 (WXGA+),1600 x 1200 (UXGA),1600 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)
Display number of colours
262144 colours
Display diagonal
39.6 cm (15.6")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Native aspect ratio
16:9
Display technology
LED
Panel type
IPS
Touchscreen
Yes
Touchscreen type
Multi-user
Touchscreen technology
Projected capacitive system
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Response time
6.5 ms
Screen shape
Flat
Supported graphics resolutions
640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Contrast ratio (typical)
800:1
Contrast ratio (dynamic)
80000000:1
Maximum refresh rate
60 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
262144 colours
Pixel pitch
0.179 x 0.179 mm
Horizontal scan range
15 - 82 kHz
Vertical scan range
50 - 75 Hz
Display diagonal (metric)
39.6 cm
Display brightness
250 cd/m˛
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Windows operating systems supported
Windows 10
Mac operating systems supported
Yes
Touch technology
Multi-touch
Touchscreen technology
Projected capacitive system
Touchscreen type
Multi-user
Number of simultaneous touchpoints
10
Built-in speaker(s)
Y
RMS rated power
1.6 W
Number of speakers
2
Built-in camera
N
Built-in microphone
N
Windows operating systems supported
Windows 10
Mac operating systems supported
Y
Multimedia
Built-in speaker(s)
Yes
Built-in camera
No
Number of speakers
2
RMS rated power
1.6 W
Built-in microphone
No
Design
Product colour
Black, Silver
Certification
cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO
Product colour
Black, Silver
Ergonomics
Wall mountable
No
Tiltable
Yes
Tilt angle range
-20 - 60°
Tilt angle range
-20 - 60°
Tiltable
Y
Wall mountable
N
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Storage relative humidity (H-H)
5 - 90%
Packaging content
Cables included
Mini-HDMI, USB Type-C, USB Type-C to USB Type-A
Cables included
Mini-HDMI, USB Type-C, USB Type-C to USB Type-A
Weight & dimensions
Width (with stand)
355 mm
Depth (with stand)
16 mm
Height (with stand)
223 mm
Weight (with stand)
1 kg
Width (with stand)
355 mm
Depth (with stand)
16 mm
Height (with stand)
223 mm
Weight (with stand)
1 kg
Packaging data
Package width
440 mm
Package depth
288 mm
Package height
89 mm
Package weight
2.3 kg
Package width
440 mm
Package depth
288 mm
Package height
89 mm
Package weight
2.3 kg
Certificates
Certification
cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO
