Introduction

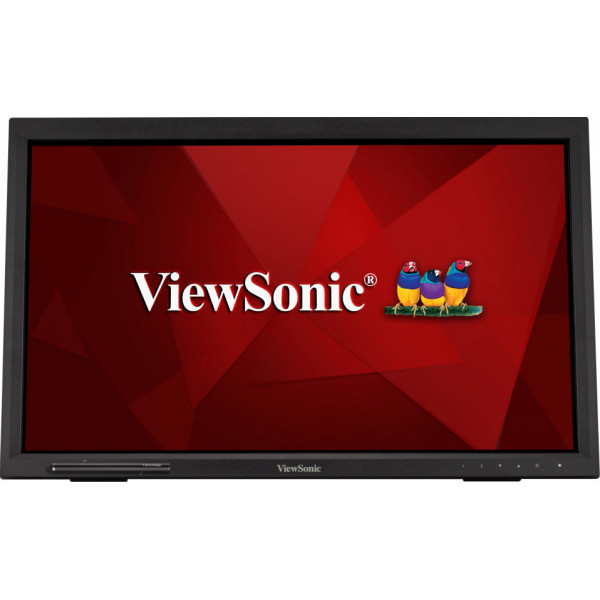

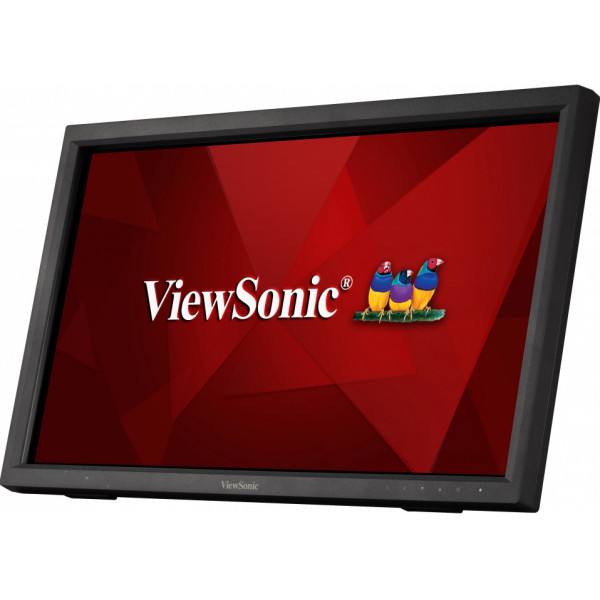

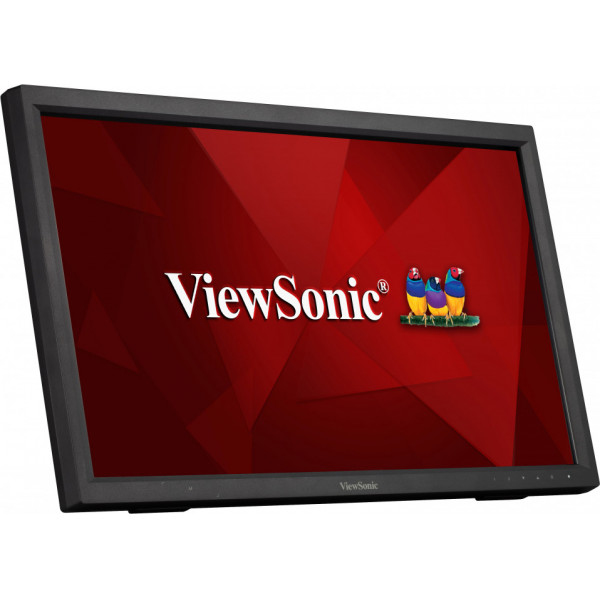

The ViewSonic TD2223 is a 22" IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.
Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.
Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
Simple and Safer Way to Interact
This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What's more, there is a magnetic pen placeholder on the base.
Anti-scratch Touchscreen
With a built-in 7H hardness screen, it's resistant to surface damage caused by sharp objects.

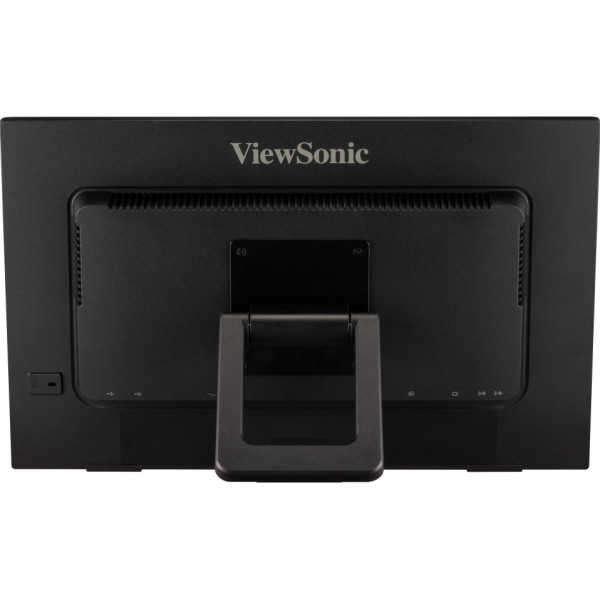

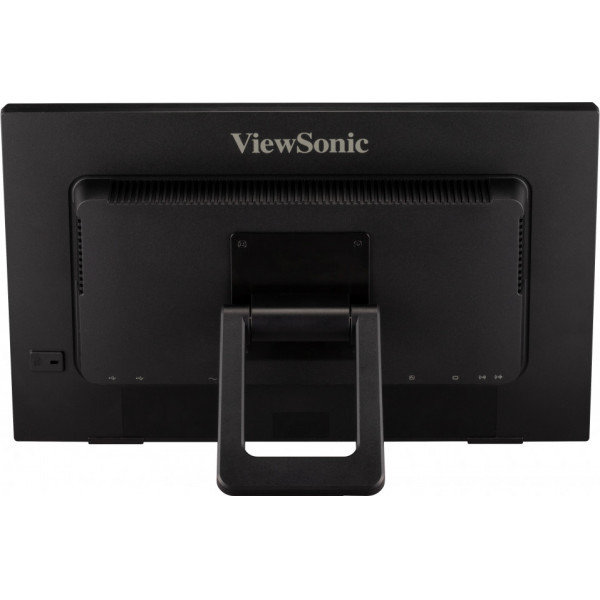

Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Clear Images
This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.
Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.

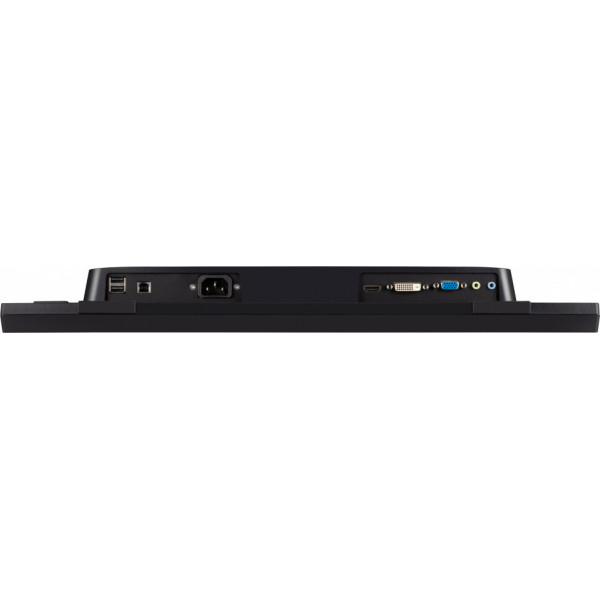

Ports & interfaces
USB upstream port type
USB Type-B
Number of upstream ports
1
USB Type-A downstream ports quantity
2
Built-in USB hub
Yes
VGA (D-Sub) ports quantity
1
DVI port
Yes
DVI-D ports quantity
1
HDMI
Yes
HDMI ports quantity
1
HDMI version
1.4
Headphone out
Yes
Headphone outputs
1
Microphone in
Yes
Built-in USB hub
Y
USB 2.0 ports quantity
3
HDMI
Y
HDMI ports quantity
1
HDMI version
1.4
VGA (D-Sub) ports quantity
1
DVI port
Y
DVI-D ports quantity
1
Microphone in
Y
Headphone out
Y
Headphone outputs
1
Power
Energy efficiency class (HDR)
Not available
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
14 kWh
Power consumption (typical)
12.5 W
Power consumption (standby)
0.5 W
Power consumption (max)
14 W
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Power supply type
AC
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
14 kWh
Power supply type
AC
Power consumption (typical)
12.5 W
Power consumption (max)
14 W
Power consumption (standby)
0.5 W
AC input voltage
100-240 V
AC input frequency
50/60 Hz
Technical details
Native refresh rate
60 Hz
Compliance certificates
REACH, RoHS
Sustainability
European Product Registry for Energy Labelling (EPREL) code
368718
Sustainability certificates
ENERGY STAR
Sustainability certificates
ENERGY STAR, REACH, RoHS
Display
Display diagonal
54.6 cm (21.5")
Display resolution
1920 x 1080 pixels
Panel type
TN
HD type
Full HD
Display technology
LED
High frequency rate
75 Hz
Native aspect ratio
16:9
Response time
5 ms
Display brightness
250 cd/m²
Contrast ratio (typical)
1000:1
Pixel pitch
0.248 x 0.248 mm
Horizontal scan range
24 - 82 kHz
Vertical scan range
50 - 75 Hz
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
Contrast ratio (dynamic)
20000000:1
Display number of colours
16.78 million colours
Display diagonal
54.6 cm (21.5")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Native aspect ratio
16:9
Display technology
LED
Panel type
TN
Touchscreen
Yes
Touchscreen type
Multi-user
Touchscreen technology
Infrared
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Response time
5 ms
Screen shape
Flat
Contrast ratio (typical)
1000:1
Contrast ratio (dynamic)
20000000:1
Maximum refresh rate
75 Hz
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
Display number of colours
16.78 million colours
Pixel pitch
0.248 x 0.248 mm
Horizontal scan range
24 - 82 kHz
Vertical scan range
50 - 75 Hz
Display brightness
250 cd/m²
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Touch technology
Multi-touch
Touchscreen technology
Infrared
Touchscreen type
Multi-user
Number of simultaneous touchpoints
10
Built-in speaker(s)
Y
RMS rated power
4 W
Number of speakers
2
Built-in camera
N
Built-in microphone
N
Multimedia
Built-in speaker(s)
Yes
Built-in camera
No
Number of speakers
2
RMS rated power
4 W
Built-in microphone
No
Design
Product colour
Black
Glass thickness
2 mm
Certification
cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP
Product colour
Black
Glass thickness
2 mm
Ergonomics
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Tiltable
Yes
Tilt angle range
22 - 38°
Tilt angle range
22 - 38°
Tiltable
Y
Panel mounting interface
100 x 100 mm
Wall mountable
Y
Cable lock slot
Y
Cable lock slot type
Kensington
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 90%
Packaging content
Stand included
Yes
Cables included
AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B
Cables included
AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B
Stand included
Y
Weight & dimensions
Width (with stand)
521 mm
Depth (with stand)
101 mm
Height (with stand)
334 mm
Weight (with stand)
4.5 kg
Width (without stand)
521 mm
Depth (without stand)
61 mm
Height (without stand)
318 mm
Weight (without stand)
3.9 kg
Width (without stand)
52.1 cm
Depth (without stand)
6.1 cm
Height (without stand)
31.8 cm
Weight (without stand)
3.9 kg
Width (with stand)
521 mm
Depth (with stand)
101 mm
Height (with stand)
334 mm
Weight (with stand)
4.5 kg
Packaging data
Package width
580 mm
Package depth
164 mm
Package height
405 mm
Package weight
6 kg
Package width
580 mm
Package depth
164 mm
Package height
405 mm
Package weight
6 kg
Logistics data
Harmonized System (HS) code
85285210
Certificates
Certification
cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP
