Introduction

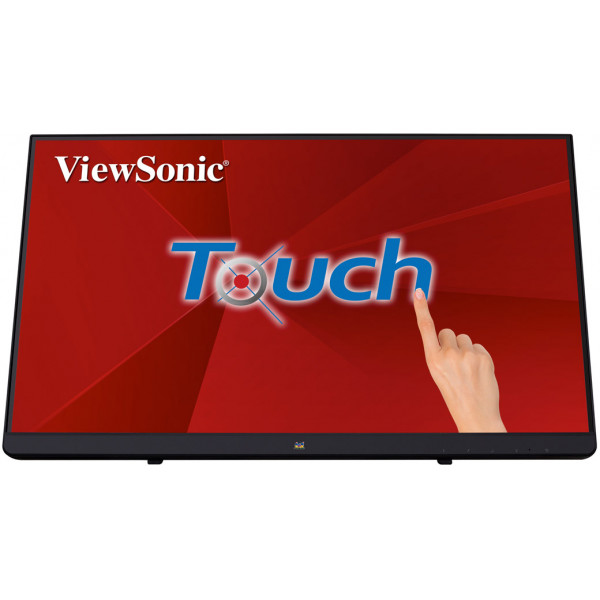

10-Point Projected Capacitive Touch
Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.
SuperClear IPS Panel Technology
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

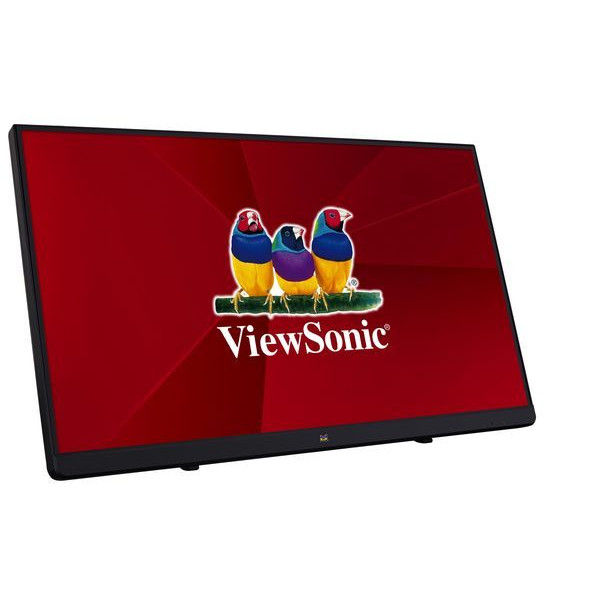

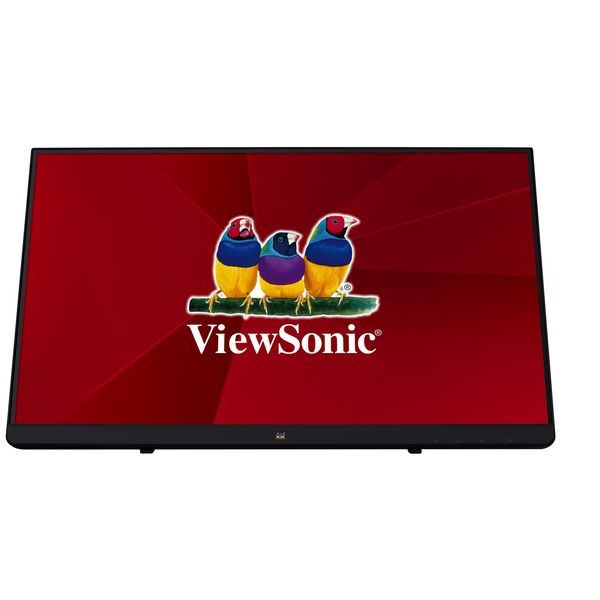

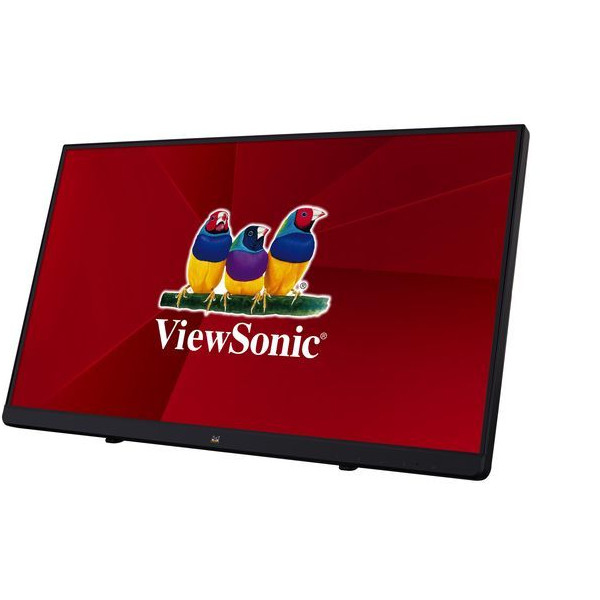

Frameless Design
Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features a frameless edge-to-edge glass faceplate with an ultra-slim bezel beneath the glass. With its sleek, eye-catching design, this elegant monitor looks as good as it performs.

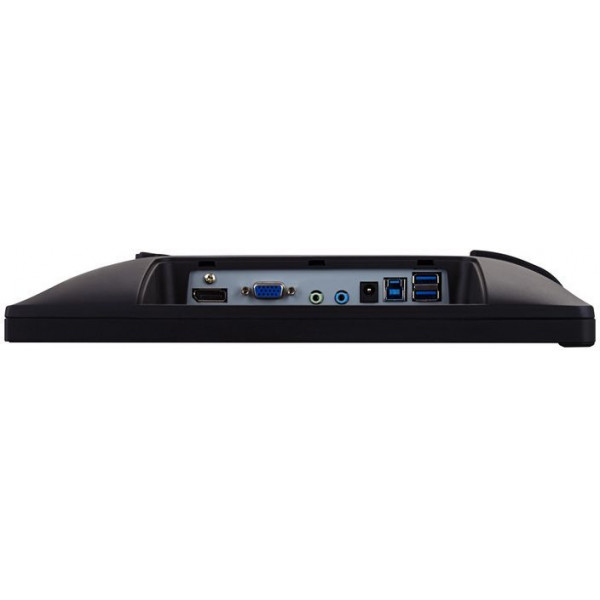

Versatile Connectivity
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.
Durable, Scratch-resistant Screen
This touch display is designed with a durable, protective glass faceplate. This provides increased scratch protection to ensure durability, as well as a consistent, high-quality touch experience in high-traffic areas such as educational settings, or other public environments where the touch display can be used as a kiosk.

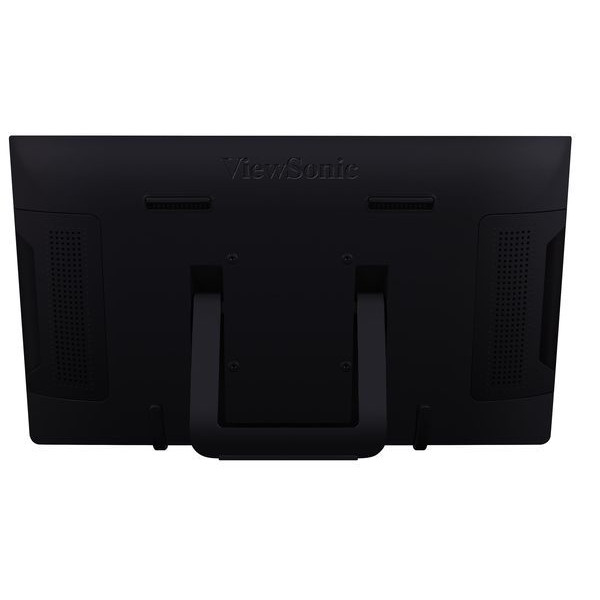

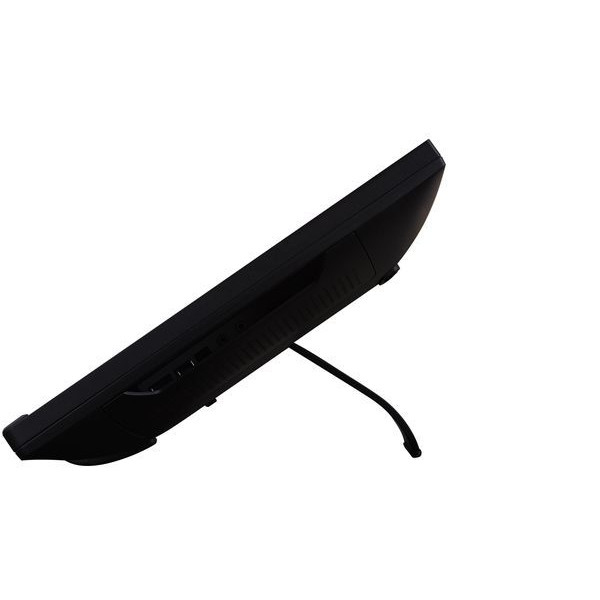

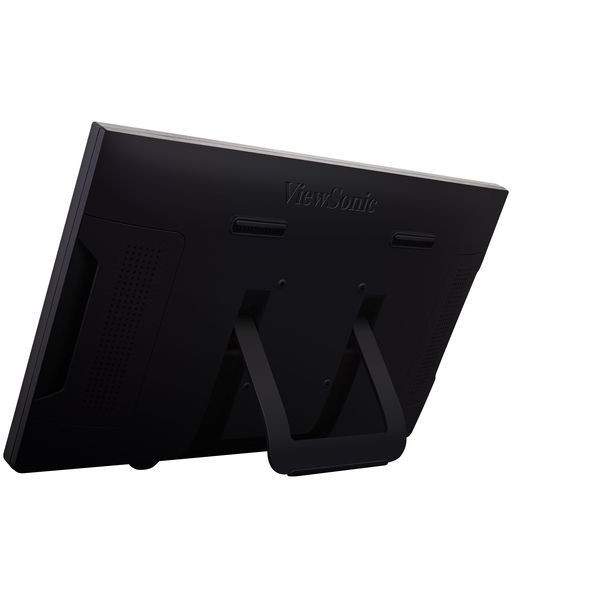

Stable Bookstand Design
A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilted or laid completely flat on a tabletop for a more comfortable work environment.
Enhanced ViewingComfort
Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
Cross-platform Compatibility
Cross compatibility with a wide range of operating systems include Windows 10, and certain Android and Linux versions.
VESA-CompatibleMount
Mount the monitor as you see fit using its convenient VESA-compatible mount design.
3-year LimitedWarranty
Have peace of mind in the quality and reliability of your ViewSonic monitor-backed by one of the industry's best pixel performance policies and a 3-year limited warranty.
Display
Native aspect ratio
16:9
Response time
5 ms
Maximum refresh rate
76 Hz
Display diagonal
54.6 cm (21.5")
Display resolution
1920 x 1080 pixels
Panel type
ADS
HD type
Full HD
Display technology
LCD
Display brightness
250 cd/m²
Contrast ratio (typical)
1000:1
Pixel pitch
0.24825 x 0.24825 mm
Horizontal scan range
24 - 82 kHz
Vertical scan range
50 - 76 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display viewable area (HxV)
476.64 x 268.11 mm
Contrast ratio (dynamic)
50000000:1
Display diagonal (metric)
54.6 cm
Supported graphics resolutions
640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)
Display diagonal
54.6 cm (21.5")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Display technology
LCD
Panel type
ADS
Touchscreen
Yes
Touchscreen type
Multi-user
Touchscreen technology
Projected capacitive system
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Screen shape
Flat
Supported graphics resolutions
640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Contrast ratio (typical)
1000:1
Contrast ratio (dynamic)
50000000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.24825 x 0.24825 mm
Horizontal scan range
24 - 82 kHz
Vertical scan range
50 - 76 Hz
Display diagonal (metric)
54.6 cm
Display brightness
250 cd/m²
Power
Energy efficiency scale
A to G
Energy efficiency class (HDR)
Not available
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
F
Energy consumption (SDR) per 1000 hours
19 kWh
Power consumption (typical)
25 W
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Power supply type
AC
Energy efficiency class (SDR)
F
Energy consumption (SDR) per 1000 hours
19 kWh
Power supply type
AC
Power consumption (typical)
25 W
AC input voltage
100-240 V
AC input frequency
50/60 Hz
Ports & interfaces
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB upstream port type
USB Type-B
Number of upstream ports
1
Number of USB Type-B upstream ports quantity
1
USB Type-A downstream ports quantity
2
Built-in USB hub
Yes

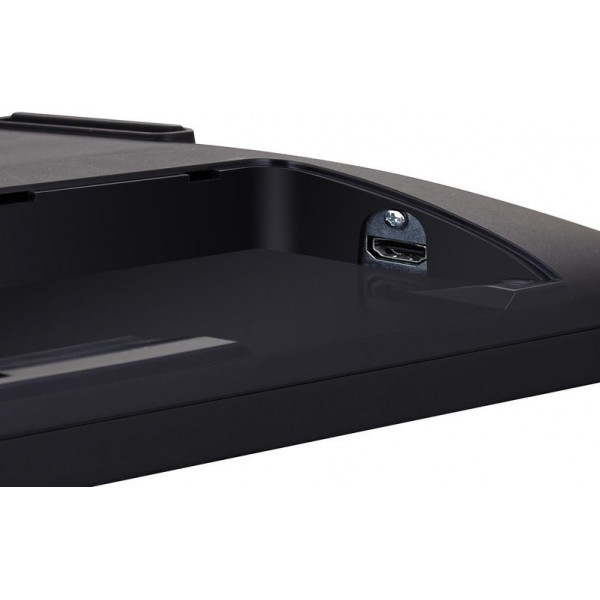

HDMI
Yes
HDMI ports quantity
1
HDMI version
1.4
DisplayPorts quantity
1
DisplayPort version
1.2
Audio input
1
Audio output
1
Built-in USB hub
Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
HDMI
Y
HDMI ports quantity
1
HDMI version
1.4
DisplayPorts quantity
1
DisplayPort version
1.2
Audio input
1
Audio output
1
Other features
Weight
3.6 kg
Display viewable area (HxV)
476.64 x 268.11 mm
Logistics data
Pallet gross width
120 cm
Pallet gross length
100 cm
Pallet gross height
197.5 cm
Products per master (outer) case
1 pc(s)
Harmonized System (HS) code
85285210
Technical details
Native refresh rate
60 Hz
Compliance certificates
CE, REACH, RoHS
Sustainability
European Product Registry for Energy Labelling (EPREL) code
389769
Sustainability certificates
EPEAT Bronze, ErP
Sustainability certificates
CE, EPEAT Bronze, ErP, REACH, RoHS
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Windows operating systems supported
Windows 10, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Other operating systems supported
Android
Touch technology
Multi-touch
Touchscreen technology
Projected capacitive system
Touchscreen type
Multi-user
Number of simultaneous touchpoints
10
Built-in speaker(s)
Y
RMS rated power
6 W
Number of speakers
2
Built-in camera
N
Built-in microphone
N
On Screen Display (OSD)
Y
Number of OSD languages
12
Other operating systems supported
Android, Chrome
Windows operating systems supported
Windows 10,Windows 7,Windows 8,Windows 8.1
Mac operating systems supported
Y
Linux operating systems supported
Y
Multimedia
Built-in speaker(s)
Yes
Built-in camera
No
Number of speakers
2
RMS rated power
6 W
Built-in microphone
No
Design
Product colour
Black
Certification
cULus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BIS, CCC, China RoHS, China Energy Label, CECP
Product colour
Black
Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
Tiltable
Yes
Tilt angle range
20 - 70°
On Screen Display (OSD)
Yes
Number of OSD languages
12
Tilt angle range
20 - 70°
Tiltable
Y
Panel mounting interface
100 x 100 mm
Wall mountable
Y
VESA mounting
Y
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Storage relative humidity (H-H)
5 - 90%
Packaging content
Cables included
AC, Audio (3.5mm), HDMI, USB
Cables included
AC, Audio (3.5mm), HDMI, USB
Weight & dimensions
Width (with stand)
490 mm
Depth (with stand)
47 mm
Height (with stand)
299 mm
Weight (with stand)
3.58 kg
Width (with stand)
490 mm
Depth (with stand)
47 mm
Height (with stand)
299 mm
Weight (with stand)
3.58 kg
Packaging data
Package width
550 mm
Package depth
114 mm
Package height
371 mm
Package weight
4.7 kg
Package width
550 mm
Package depth
114 mm
Package height
371 mm
Package weight
4.7 kg
Certificates
Certification
cULus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BIS, CCC, China RoHS, China Energy Label, CECP
