Product Details
Introduction

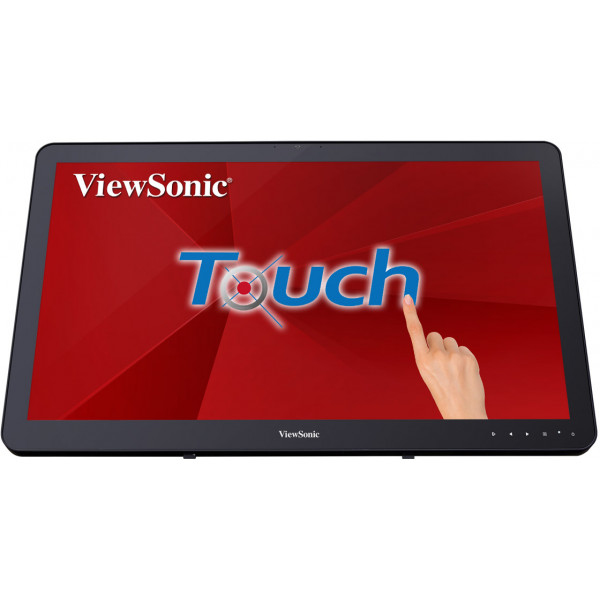

- 10-point Projected Capacitive Touch
- SuperClear® MVA-type panel technology
- Frameless Design
- Versatile Connectivity
- Durable, Scratch-resistant Screen

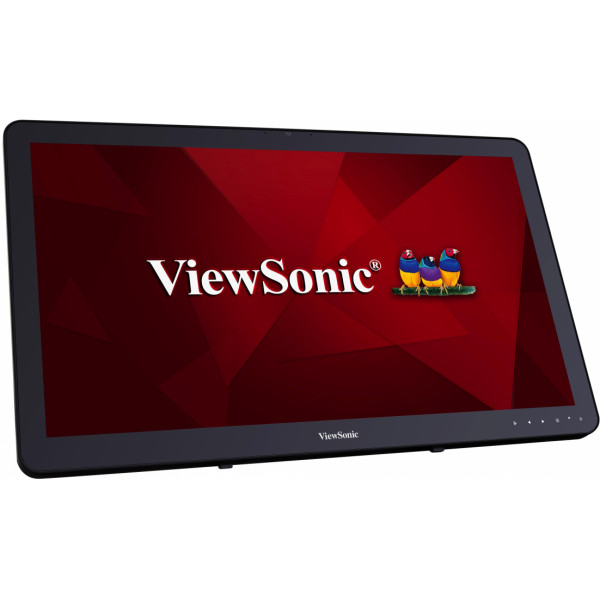

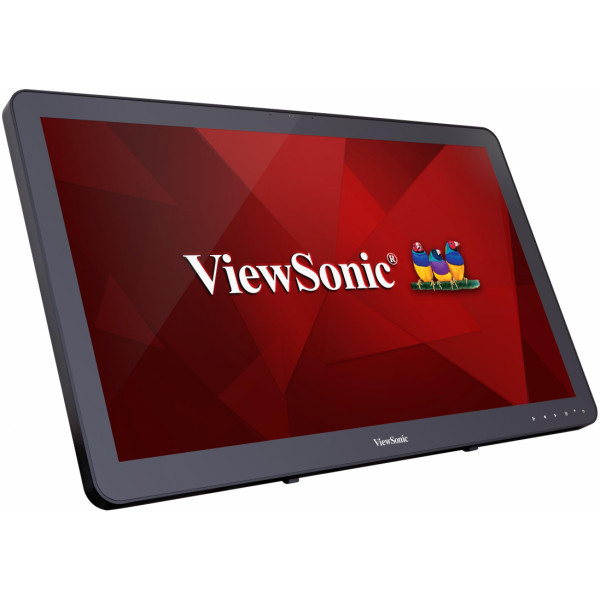

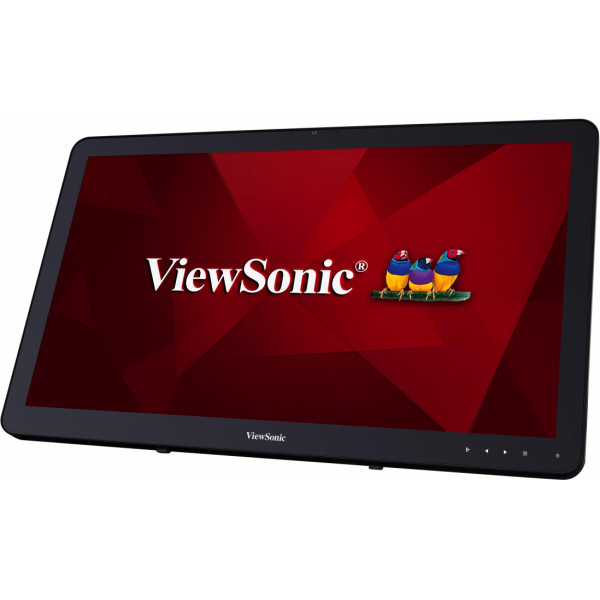

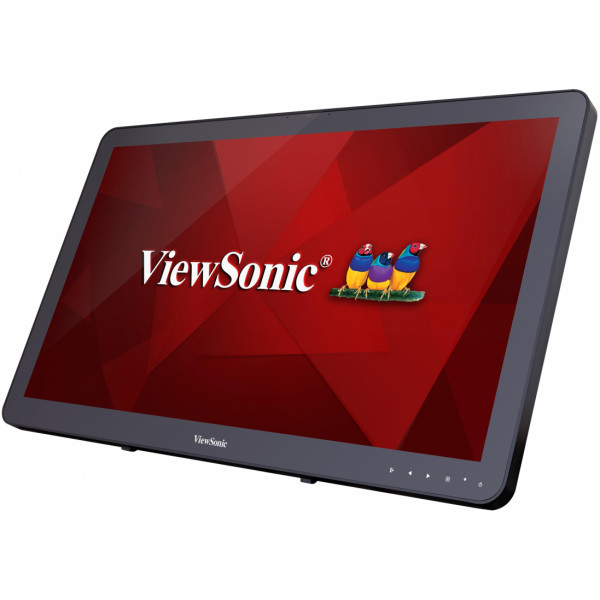

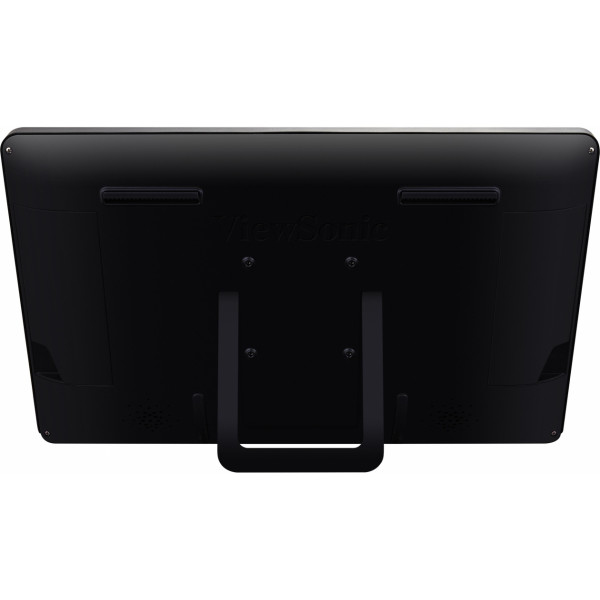

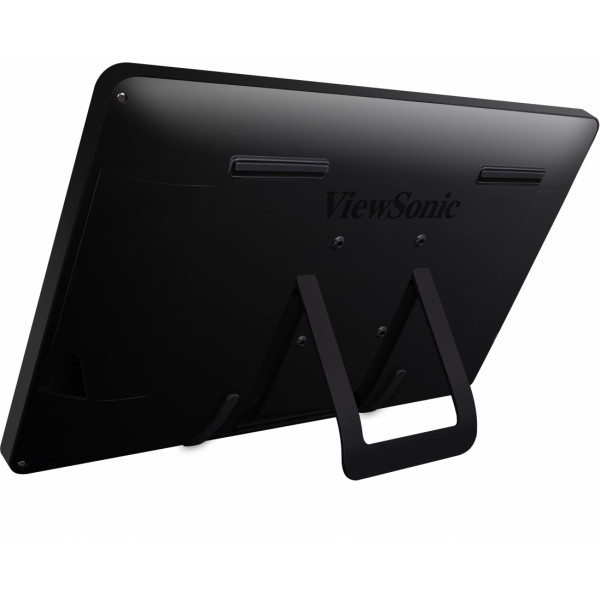

Laid flat or angled for customized comfort, this display delivers touchscreen versatility to the max. Offering fantastic flexibility for retail, education, or business settings, the ViewSonic® TD2430 is a 24" (23.6" viewable) Full HD display with 10-point multi-touch functionality. Delivering adjustable positioning, wide-angle viewing, and a durable design, the TD2430 has everything to accommodate your unique needs. Adding even more convenience, cross-compatibility with a wide range of operating systems includes Windows 10, and certain Android and Linux versions.* With a sleek edge-to-edge screen and frameless bezel, this intuitive touchscreen performs like your favorite tablet or smartphone to deliver a highly accurate, ultra-responsive touch experience ideal for interactivity in public environments, kiosk and wayfinding applications, classroom settings, and more.
*Supports Windows 7/8/10, Linux 2.6.38 or later, and Android 4.0 or later.

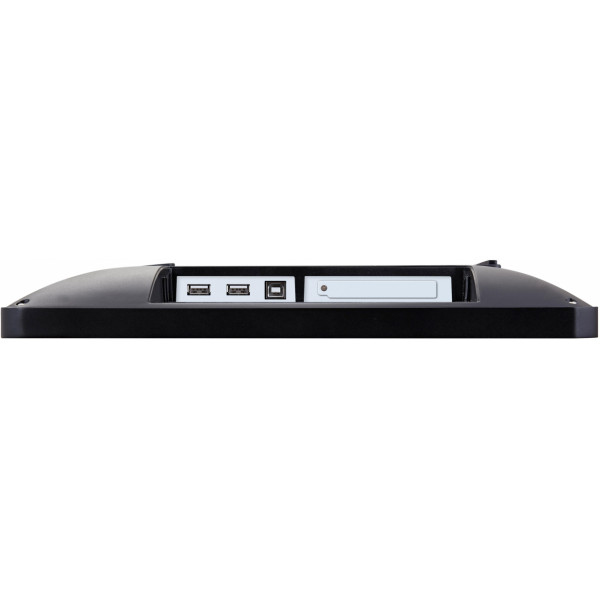

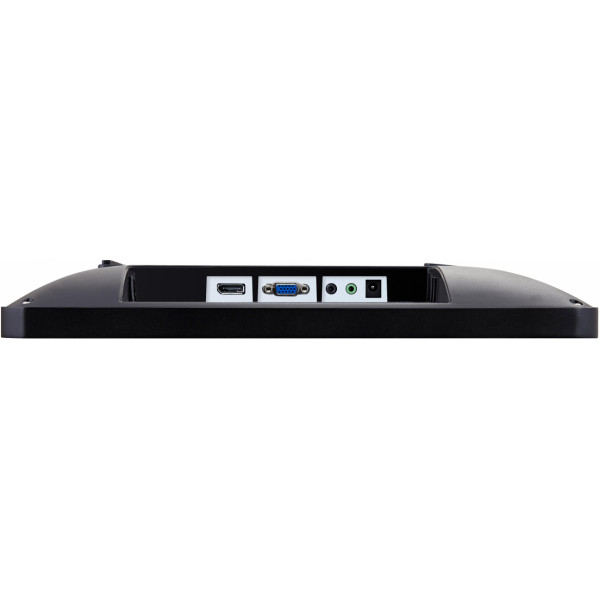

Ports & interfaces
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB upstream port type
USB Type-B
Number of upstream ports
1
Number of USB Type-B upstream ports quantity
1
USB Type-A downstream ports quantity
2
Built-in USB hub
Yes
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
HDMI version
1.4
DisplayPorts quantity
1
DisplayPort version
1.2
Headphone out
Yes
Headphone outputs
1
Built-in USB hub
Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
HDMI
Y
HDMI ports quantity
1
HDMI version
1.4
VGA (D-Sub) ports quantity
1
DisplayPorts quantity
1
DisplayPort version
1.2
Headphone out
Y
Headphone outputs
1
Power
Energy efficiency class (HDR)
Not available
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
15 kWh
Power consumption (typical)
25 W
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Power supply type
AC
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
15 kWh
Power supply type
AC
Power consumption (typical)
25 W
AC input voltage
100-240 V
AC input frequency
50/60 Hz
Other features
Weight
5.5 kg
Display viewable area (HxV)
521.28 x 293.22 mm
Mobile operating systems supported
Android
Logistics data
Pallet gross width
120 cm
Pallet gross length
100 cm
Pallet gross height
189 cm
Products per master (outer) case
1 pc(s)
Harmonized System (HS) code
85285210
Technical details
Native refresh rate
60 Hz
Compliance certificates
CE, REACH, RoHS
Sustainability
European Product Registry for Energy Labelling (EPREL) code
404623
Sustainability certificates
ENERGY STAR, ErP
Sustainability certificates
CE, ENERGY STAR, ErP, REACH, RoHS
Display
Response time
5 ms
Maximum refresh rate
76 Hz
Display diagonal
59.9 cm (23.6")
Display resolution
1920 x 1080 pixels
Panel type
VA
HD type
Full HD
Display technology
LCD
Native aspect ratio
16:9
Display brightness
200 cd/m˛
Contrast ratio (typical)
3000:1
Pixel pitch
0.2715 x 0.2715 mm
Horizontal scan range
24 - 82 kHz
Vertical scan range
50 - 75 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display viewable area (HxV)
521.28 x 293.22 mm
Contrast ratio (dynamic)
50000000:1
Display diagonal (metric)
60 cm
Display diagonal
59.9 cm (23.6")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Native aspect ratio
16:9
Display technology
LCD
Panel type
VA
Touchscreen
Yes
Touchscreen type
Multi-user
Touchscreen technology
Projected capacitive system
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Screen shape
Flat
Contrast ratio (typical)
3000:1
Contrast ratio (dynamic)
50000000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.2715 x 0.2715 mm
Horizontal scan range
24 - 82 kHz
Vertical scan range
50 - 75 Hz
Display diagonal (metric)
60 cm
Display brightness
200 cd/m˛
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Windows operating systems supported
Windows 10, Windows 7, Windows 8
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Other operating systems supported
Android
Touch technology
Multi-touch
Touchscreen technology
Projected capacitive system
Touchscreen type
Multi-user
Number of simultaneous touchpoints
10
Built-in speaker(s)
Y
RMS rated power
5 W
Number of speakers
2
Built-in camera
N
Built-in microphone
N
Mobile operating systems supported
Android
Other operating systems supported
Android
Windows operating systems supported
Windows 10,Windows 7,Windows 8
Mac operating systems supported
Y
Linux operating systems supported
Y
Multimedia
Built-in speaker(s)
Yes
Built-in camera
No
Number of speakers
2
RMS rated power
5 W
Built-in microphone
No
Design
Product colour
Black
Certification
cTUVus, FCC-B, ICES003, Energy Star 8.0, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, CCC, China RoHS, China Energy Label, CECP
Product colour
Black
Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes

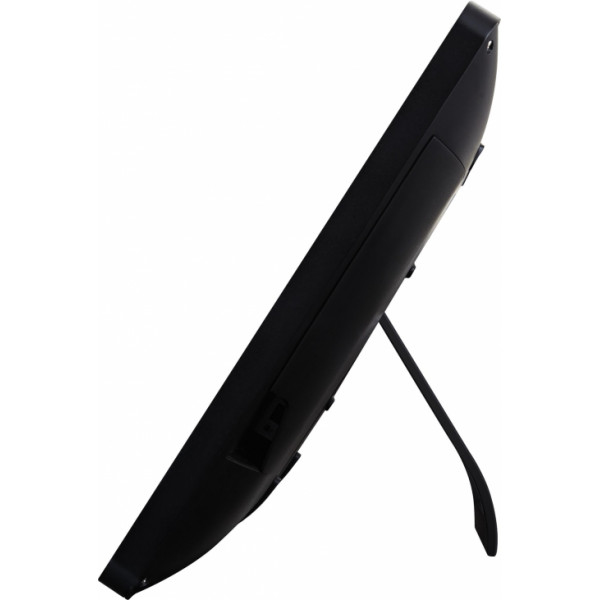

Tiltable
Yes
Tilt angle range
20 - 53°
Tilt angle range
20 - 53°
Tiltable
Y
Panel mounting interface
100 x 100 mm
Wall mountable
Y
VESA mounting
Y
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Storage relative humidity (H-H)
5 - 90%
Packaging content
Cables included
AC, Audio (3.5mm), HDMI, USB
Cables included
AC, Audio (3.5mm), HDMI, USB
Weight & dimensions
Width (with stand)
573 mm
Depth (with stand)
47 mm
Height (with stand)
353 mm
Weight (with stand)
5.51 kg
Width (with stand)
573 mm
Depth (with stand)
47 mm
Height (with stand)
353 mm
Weight (with stand)
5.51 kg
Packaging data
Package width
643 mm
Package depth
140 mm
Package height
435 mm
Package weight
7.08 kg
Package width
643 mm
Package depth
140 mm
Package height
435 mm
Package weight
7.08 kg
Certificates
Certification
cTUVus, FCC-B, ICES003, Energy Star 8.0, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, CCC, China RoHS, China Energy Label, CECP
Information
| Part Number: | TD2430 |
