Introduction

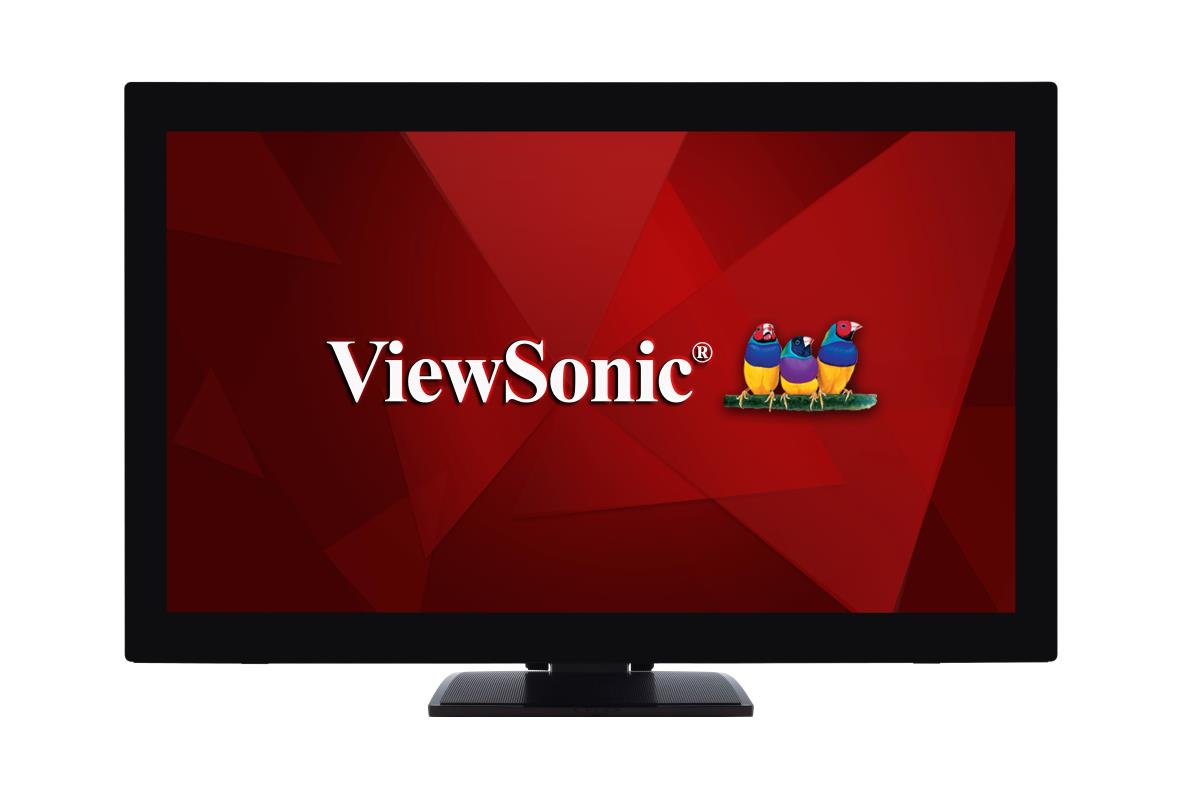

The ViewSonic® TD2760 is an ideal solution for both commercial and consumer touch-screen applications. With an intuitive 10-point multi-touch display and a Full 1080p HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® IPS Panel technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10, Linux, Chrome, and Android. Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA compatible mount design, offering additional convenience for use as a wall-mount display. With serial port RS232 and HDMI CEC, the TD2760 can directly control connected devices. Even more, the ergonomic stand makes it easy for the user to tilt, raise, and lay the monitor flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with ENERGY STAR certification saves energy costs while reducing carbon emissions.

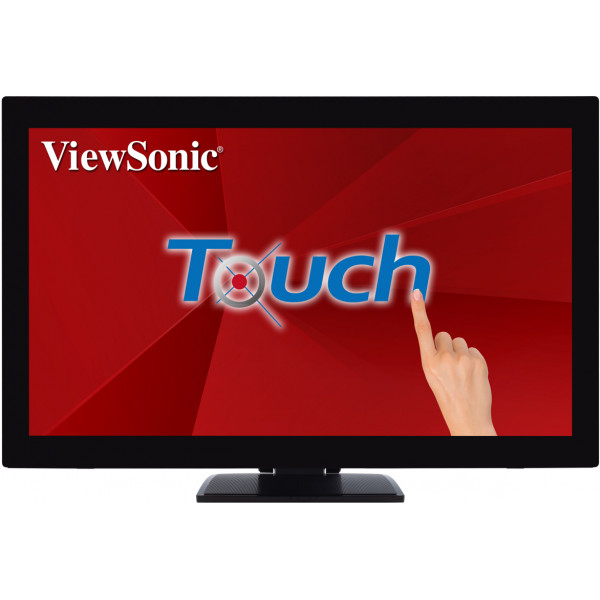

10-POINT MULTI-TOUCH
With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses or their fingers - or both at the same time.
SUPERCLEAR ® MVA PANEL TECHNOLOGY
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

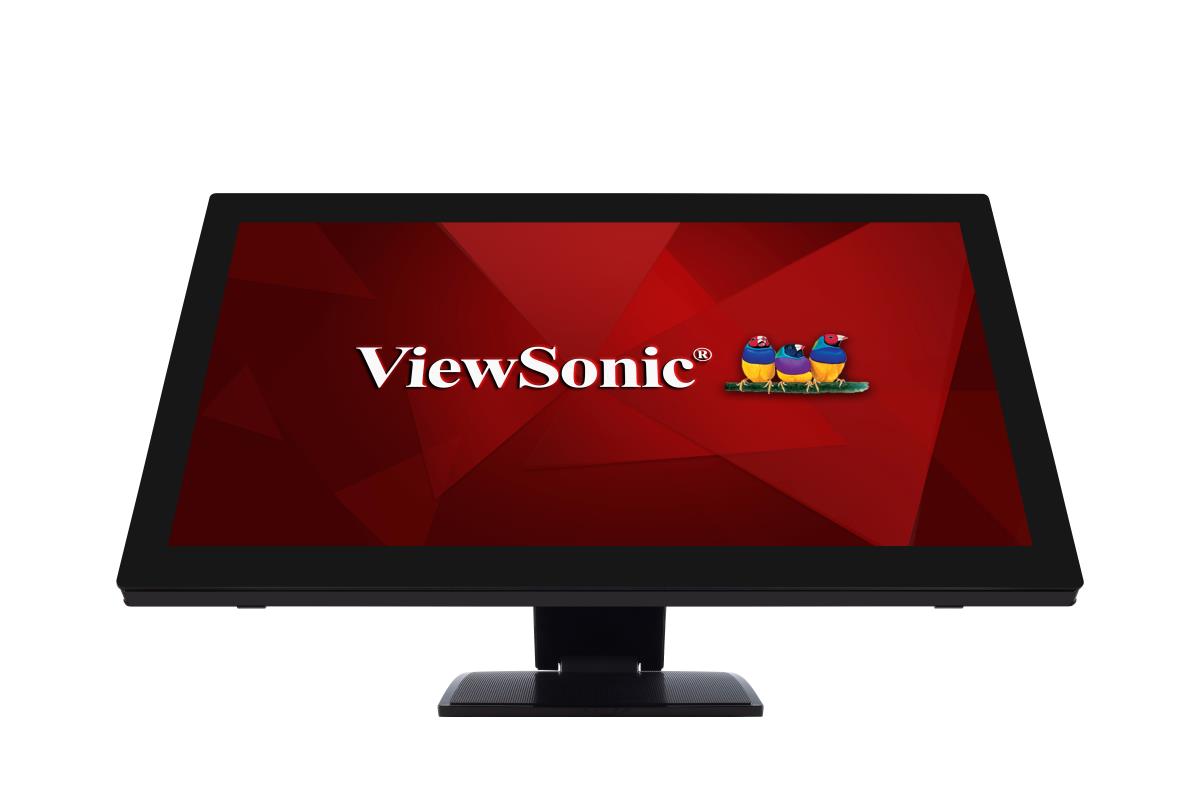

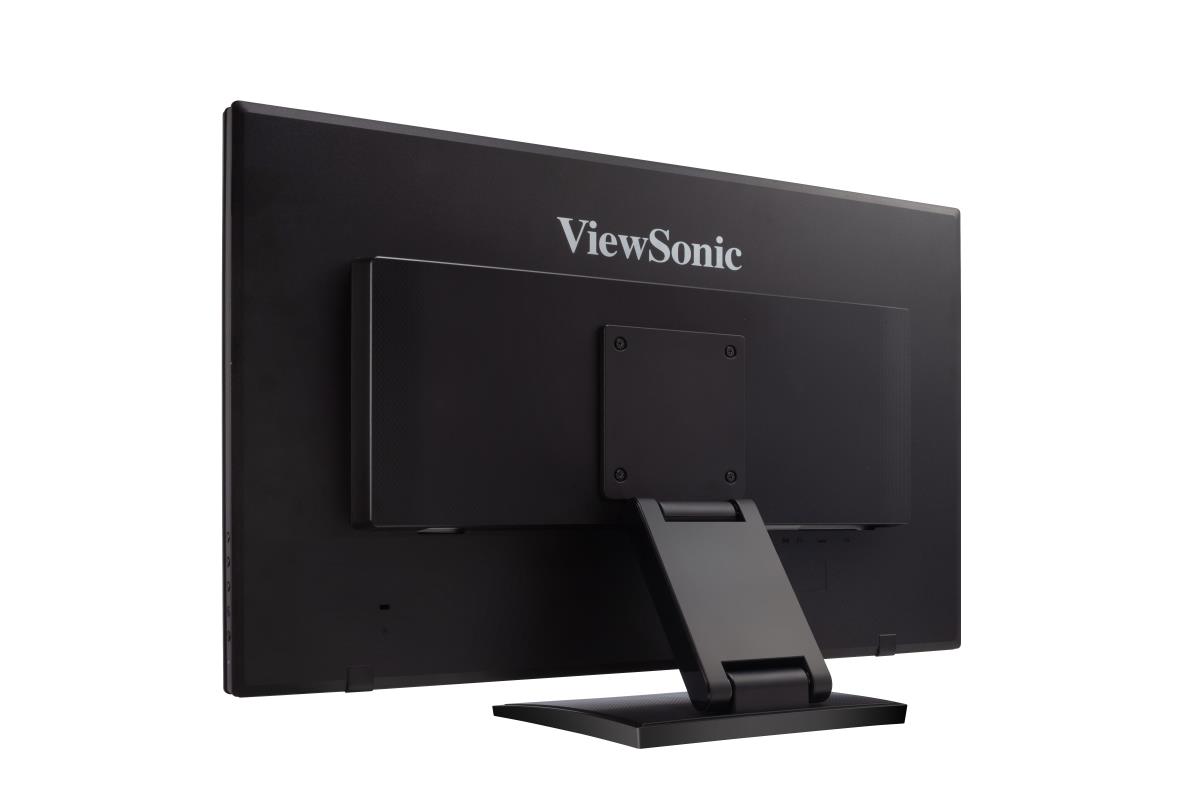

ERGONOMIC DUAL-HINGE DESIGN
A dual-hinge stand allows the screen to be tilted and adjusted, or rest flat on a desk or table. This sturdy ergonomic design maximizes comfort and productivity, and makes this touch display well suited to a variety of touch scenarios in the home, school or office.
VERSATILE CONNECTIVITY
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.
CONTROL MULTIPLE DEVICES
RS232 offers local control for set-top boxes and other RS232 connected devices, directly with the display's remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display's remote controller.
Power
Energy efficiency class (HDR)
Not available
Energy efficiency class (SDR)
F
Energy consumption (SDR) per 1000 hours
19 kWh
Power consumption (typical)
26 W
Power consumption (standby)
0.3 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power supply type
AC
Energy efficiency class (SDR)
F
Energy consumption (SDR) per 1000 hours
19 kWh
Power supply type
AC
Power consumption (typical)
26 W
Power consumption (standby)
0.3 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Packaging content
Cables included
Power, VGA, HDMI, USB, Audio
Quick start guide
Yes
Accessories included
Power Cable, VGA Cable, HDMI Cable, USB Cable, Audio Cable
Quick start guide
Y
Ports & interfaces
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB upstream port type
USB Type-B
Number of upstream ports
1
Number of USB Type-B upstream ports quantity
1
USB Type-A downstream ports quantity
2
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
HDMI version
1.4
DisplayPorts quantity
1
DisplayPort version
1.2
Audio input
1
Audio output
1
HDCP
Yes
RS-232 ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
HDMI
Y
HDMI ports quantity
1
HDMI version
1.4
VGA (D-Sub) ports quantity
1
DisplayPorts quantity
1
DisplayPort version
1.2
Audio input
1
Audio output
1
RS-232 ports
1
Other features
Weight
7.9 kg
Connection to PC
Yes
Accessories included
Power Cable, VGA Cable, HDMI Cable, USB Cable, Audio Cable
Mean time between failures (MTBF)
30000 h
Logistics data
Pallet gross width
120 cm
Pallet gross length
100 cm
Pallet gross height
2.24 m
Products per master (outer) case
1 pc(s)
Harmonized System (HS) code
85285210
Technical details
Native refresh rate
60 Hz
Sustainability
European Product Registry for Energy Labelling (EPREL) code
384384
Display
Display diagonal
68.6 cm (27")
Display resolution
1920 x 1080 pixels
Panel type
VA
HD type
Full HD
Display technology
LED
Native aspect ratio
16:9
Aspect ratio
16:9
Anti-glare screen
Y
Response time
6 ms
Display brightness
300 cd/m˛
Contrast ratio (typical)
3000:1
Pixel pitch
0.311 x 0.311 mm
Horizontal scan range
15 - 90 kHz
Vertical scan range
50 - 76 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Separate H/V sync
Y
Backlight type
LED
Contrast ratio (dynamic)
50000000:1
Display diagonal (metric)
68.58 cm
LED backlight
Y
Viewable size, horizontal
59.8 cm
Viewable size, vertical
33.6 cm
Display number of colours
16.78 million colours
Display diagonal
68.6 cm (27")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Native aspect ratio
16:9
Display technology
LED
Panel type
VA
Backlight type
LED
Touchscreen
Yes
Touchscreen type
Multi-user
Touchscreen technology
Projected capacitive system
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Response time
6 ms
Anti-glare screen
Yes
Screen shape
Flat
Aspect ratio
16:9
Contrast ratio (typical)
3000:1
Contrast ratio (dynamic)
50000000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.78 million colours
Pixel pitch
0.311 x 0.311 mm
Horizontal scan range
15 - 90 kHz
Vertical scan range
50 - 76 Hz
Viewable size, horizontal
59.8 cm
Viewable size, vertical
33.6 cm
Display diagonal (metric)
68.58 cm
Surface hardness
6H
Display brightness
300 cd/m˛
LED backlight
Yes
Separate H/V sync
Yes
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Touch technology
Multi-touch
Touchscreen technology
Projected capacitive system
Touchscreen type
Multi-user
Number of simultaneous touchpoints
10
Built-in speaker(s)
Y
RMS rated power
4 W
Number of speakers
2
Built-in camera
N
Built-in microphone
N
On Screen Display (OSD)
Y
Number of OSD languages
14
Mean time between failures (MTBF)
30000 h
HDCP
Y
Connection to PC
Y
Multimedia
Built-in speaker(s)
Yes
Built-in camera
No
Number of speakers
2
RMS rated power
4 W
Built-in microphone
No
Design
Product colour
Black
Glass thickness
1.88 mm
Certification
MX-CoC, Mexico Energy, CE, CE EMC, CB
Product colour
Black
Glass thickness
1.88 mm
Surface hardness
6H
Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Tiltable
Yes
Tilt angle range
-4 - 90°
On Screen Display (OSD)
Yes
Number of OSD languages
14
Tilt angle range
-4 - 90°
Tiltable
Y
Panel mounting interface
100 x 100 mm
Wall mountable
Y
Cable lock slot
Y
VESA mounting
Y
Cable lock slot type
Kensington
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 90%
Weight & dimensions
Width (with stand)
660 mm
Depth (with stand)
239 mm
Height (with stand)
443 mm
Weight (with stand)
7.9 kg
Width (without stand)
660 mm
Depth (without stand)
58 mm
Height (without stand)
410 mm
Weight (without stand)
5.5 kg
Width (without stand)
66 cm
Depth (without stand)
5.8 cm
Height (without stand)
41 cm
Weight (without stand)
5.5 kg
Width (with stand)
660 mm
Depth (with stand)
239 mm
Height (with stand)
443 mm
Weight (with stand)
7.9 kg
Packaging data
Package width
753 mm
Package depth
204 mm
Package height
525 mm
Package weight
10.2 kg
Package width
753 mm
Package depth
204 mm
Package height
525 mm
Package weight
10.2 kg
Certificates
Certification
MX-CoC, Mexico Energy, CE, CE EMC, CB
