Product Details

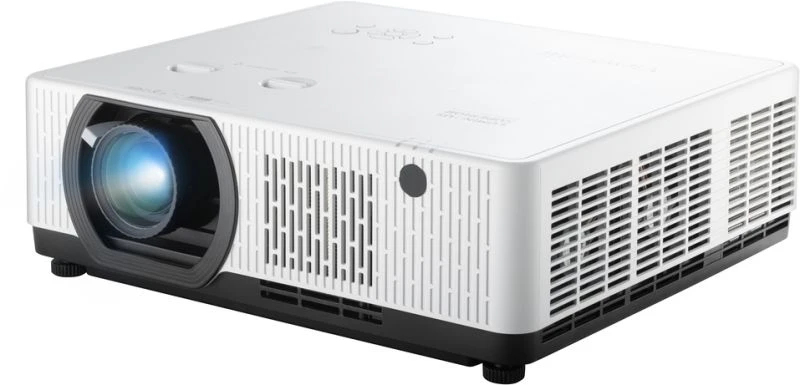

Projector
Supported aspect ratios
16:10
Screen size compatibility
762 - 7620 mm (30 - 300")
Projection distance
0.78 - 12.99 m
Projector brightness
7300 ANSI lumens
Projection technology
3LCD
Projector native resolution
WUXGA (1920x1200)
Contrast ratio (typical)
3000000:1
Native aspect ratio
16:10
Number of colours
1.07 billion colours
Horizontal scan range
15 - 100 kHz
Vertical scan range
23 - 85 Hz
Keystone correction, horizontal
-25 - 25°
Keystone correction, vertical
-30 - 30°
Light source
Light source type
Lamp
Service life of light source
20000 h
Service life of light source (economic mode)
30000 h
Lens system
Focal length range
17.2 - 27.7 mm
Aperture range (F-F)
1.5 - 2.08
Zoom capability
Yes
Throw ratio
1.2 - 2
Horizontal lens shift range
0 - 60%
Vertical lens shift range
-29 - 29%
Offset
5%
Video
Full HD
Yes
Ports & interfaces
Audio (L/R) in
1
Audio (L/R) out
1
Serial interface type
RS-232
VGA (D-Sub) ports quantity
1
HDMI ports quantity
2
AC (power) in
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Storage
Card reader integrated
No
Features
Noise level (economic mode)
27 dB
Noise level
37 dB
Air filter
Yes
Design
Market positioning
Education
Product type
Standard throw projector
Product colour
Black, White
Placement
Ceiling
LED indicators
Yes
Power
Power source
AC
Power consumption (typical)
375 W
Power consumption (standby)
0.5 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
405 mm
Depth
358 mm
Height
137 mm
Weight
7.9 kg
Package width
510 mm
Package depth
498 mm
Package height
260 mm
Package weight
10.9 kg
Packaging content

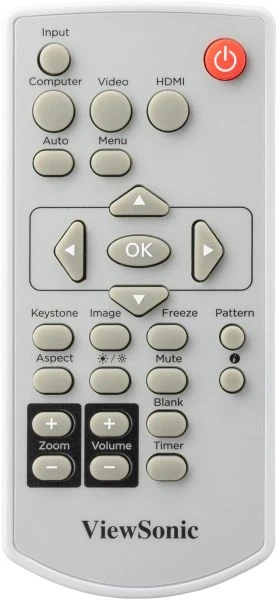

Remote control included
Yes
Manual
Yes
Logistics data
Quantity per pack
1 pc(s)
Pallet gross length
100 cm
Pallet gross width
120 cm
Pallet gross height
170 cm
Products per master (outer) case
1 pc(s)
Harmonized System (HS) code
8528620000
Information
| Part Number: | LSC731WU |
