Product Details
Projector
Smart projector
No
Screen size (max)
7.62 m (300")
Screen size compatibility
762 - 7620 mm (30 - 300")
Projection distance
0.78 - 12.99 m
Projector brightness
8000 ANSI lumens
Projection technology
3LCD
Projector native resolution
WUXGA (1920x1200)
Contrast ratio (typical)
3000000:1
Native aspect ratio
21:9
Number of colours
1.07 billion colours
Keystone correction, horizontal
+-25°
Keystone correction, vertical
+-30°
Matrix size
1.63 cm (0.64")
Matrix type
MLA
Horizontal synchronization (min)
15 kHz
Horizontal synchronization (max)
100 kHz
Vertical synchronization (min)
0.023 kHz
Vertical synchronization (max)
0.085 kHz
Light source
Light source type
Laser
Service life of light source
20000 h
Service life of light source (economic mode)
30000 h
Light source brightness
8500 lm
Lens system
Focal length range
17.2 - 27.7 mm
Aperture range (F-F)
1.5 - 2.08
Zoom capability
Yes
Digital zoom
4x
Optical zoom
1.6x
Throw ratio
1.2 - 2
Horizontal lens shift range
-29 - 29%
Vertical lens shift range
0 - 60%
Offset
0%
Video
Full HD
Yes
3D
No
Supported graphics resolutions
640 x 480 (VGA), 3840 x 2160
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p

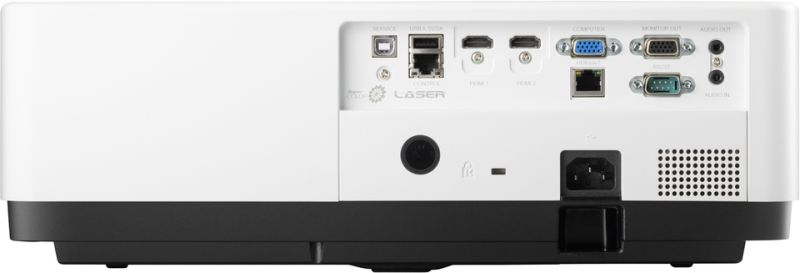

Ports & interfaces
HDMI connector type
Full-size
HDMI version
1.4
USB 2.0 Type-A ports quantity
1
USB 2.0 Type-B ports quantity
1
Serial interface type
RS-232
PC Audio in
Yes
PC Audio out
Yes
PC in (D-Sub)
Yes
VGA (D-Sub) ports quantity
2
HDMI ports quantity
2
DVI port
No
AC (power) in
Yes
Network
Smart TV
No
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Wi-Fi
No
Storage
Card reader integrated
No
Features
Noise level (economic mode)
27 dB
HDCP
Yes
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Multi
HDCP version
1.4
Noise level
37 dB
Air filter
Yes
Multimedia
Built-in speaker(s)
Yes
RMS rated power
16 W
Design
Product type
Standard throw projector
Product colour
White
Display
Built-in display
No
Power
Power source
AC
Power consumption (typical)
385 W
Power consumption (standby)
0.5 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
405 mm
Depth
358 mm
Height
137 mm
Weight
7.9 kg
Package width
510 mm
Package depth
498 mm
Package height
260 mm
Package weight
10.9 kg
Packaging content

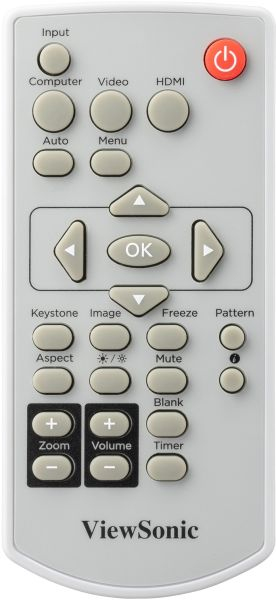

Remote control included
Yes
Cables included
AC
Technical details
Image lag time
60 ms
Logistics data
Pallet gross length
100 cm
Pallet gross width
120 cm
Pallet gross height
170 cm
Products per master (outer) case
1 pc(s)
Harmonized System (HS) code
8528620000
Quantity per pack
1 pc(s)
Information

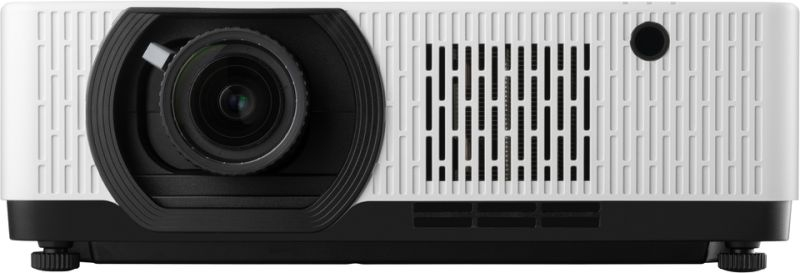

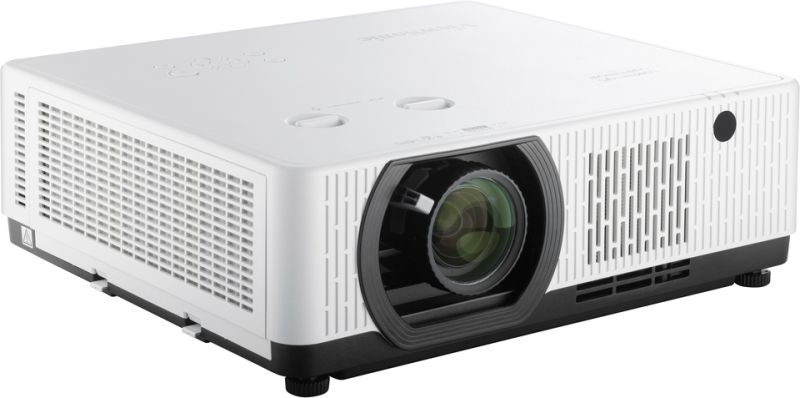

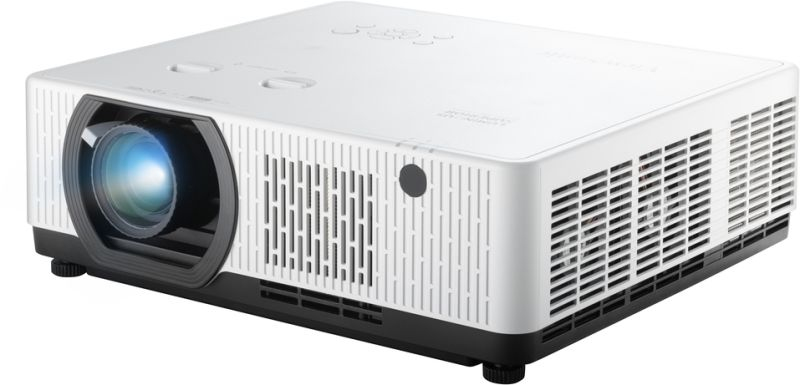

| Part Number: | LSC801WU |
