Introduction

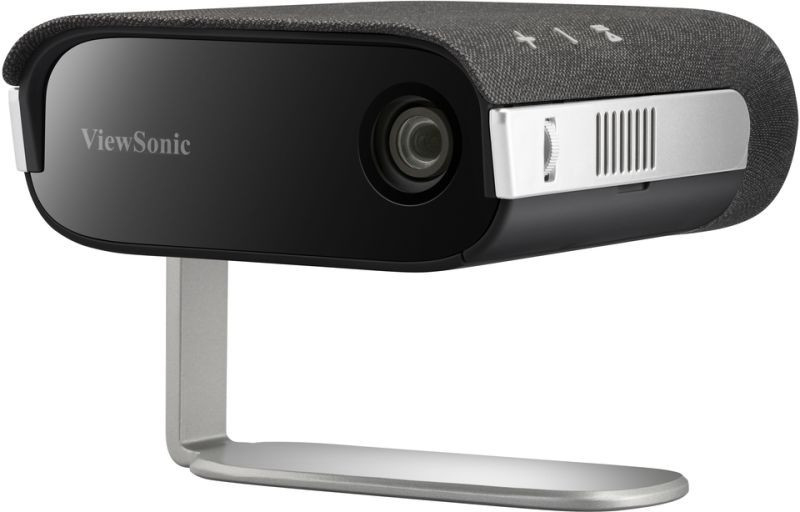

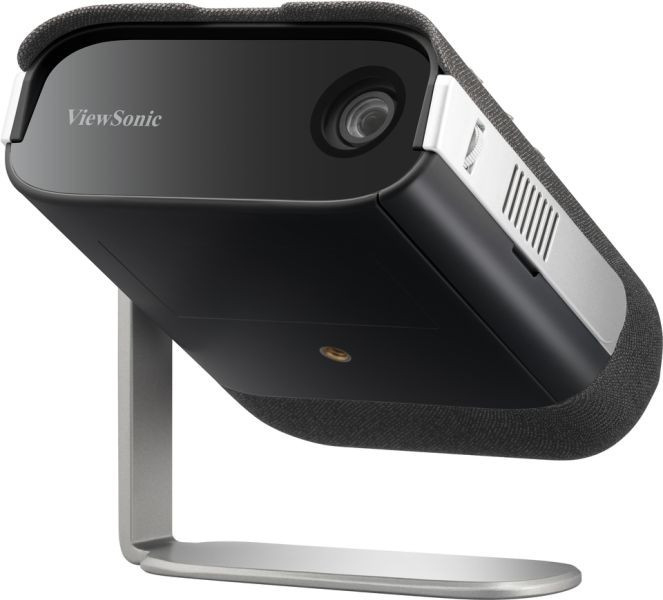

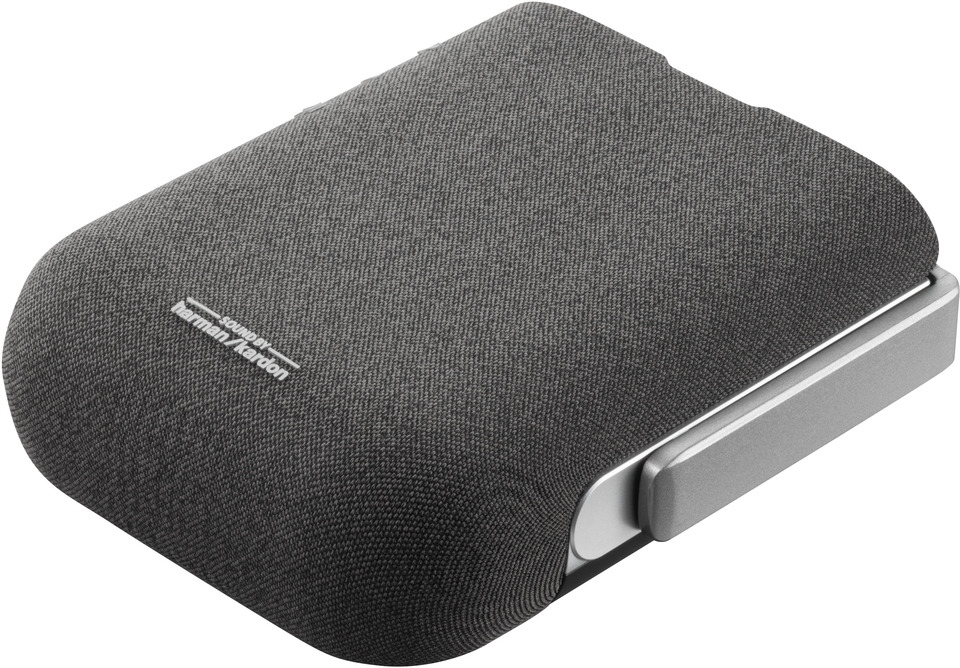

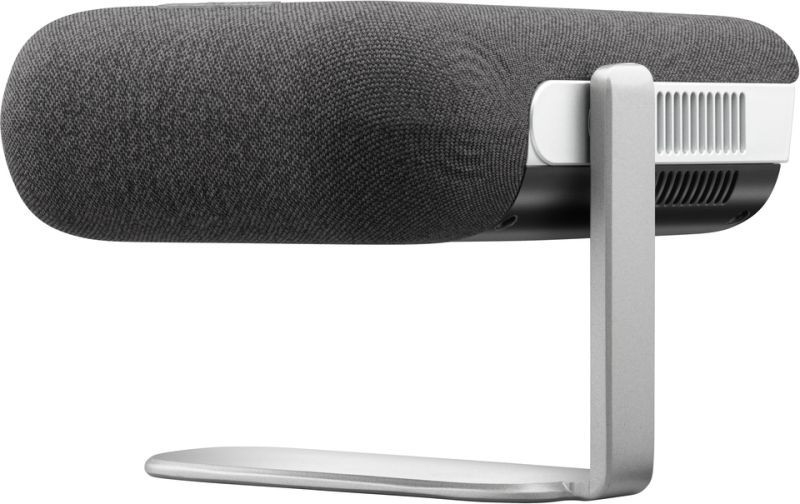

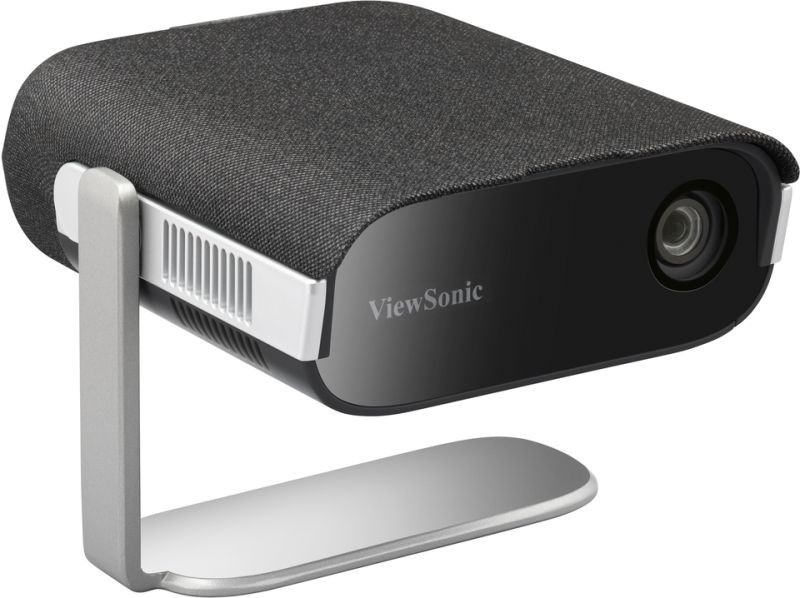

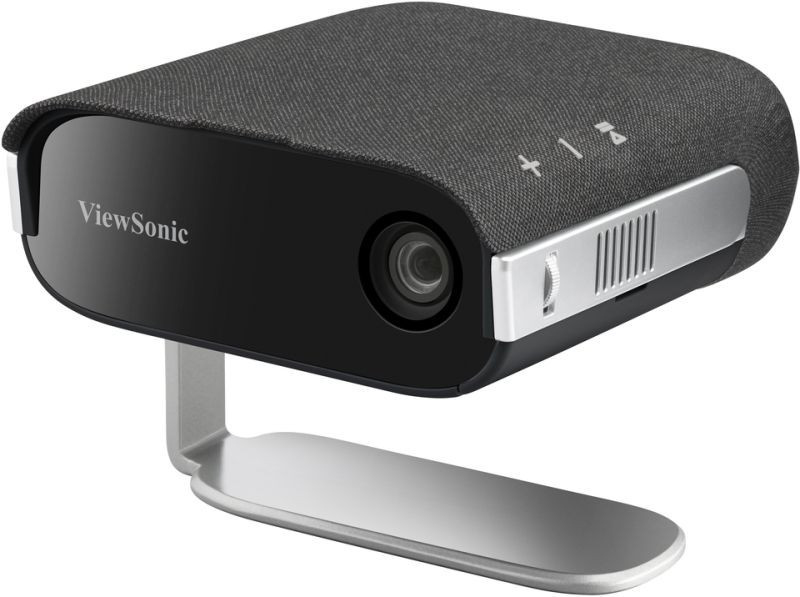

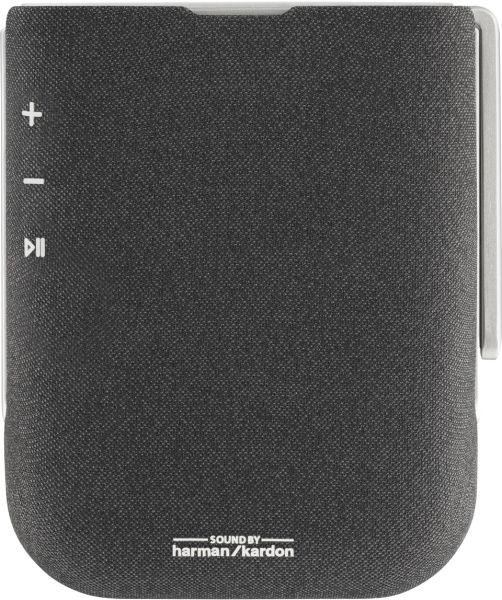

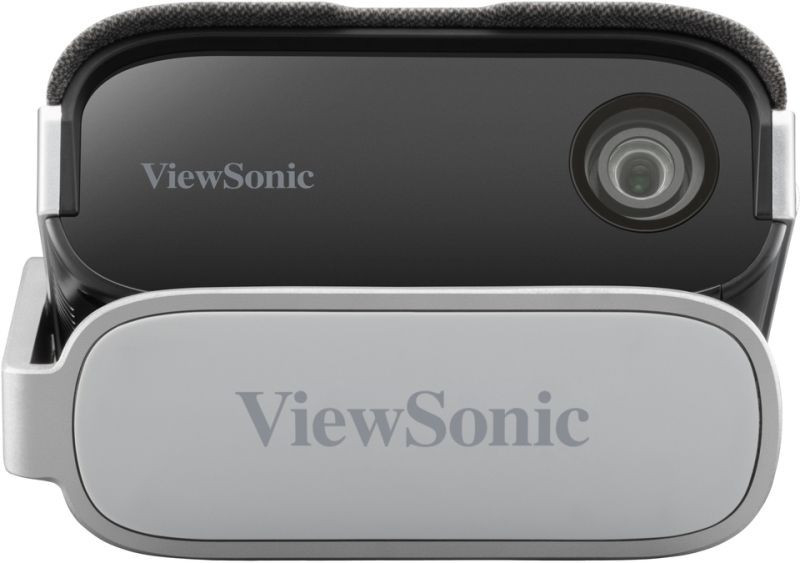

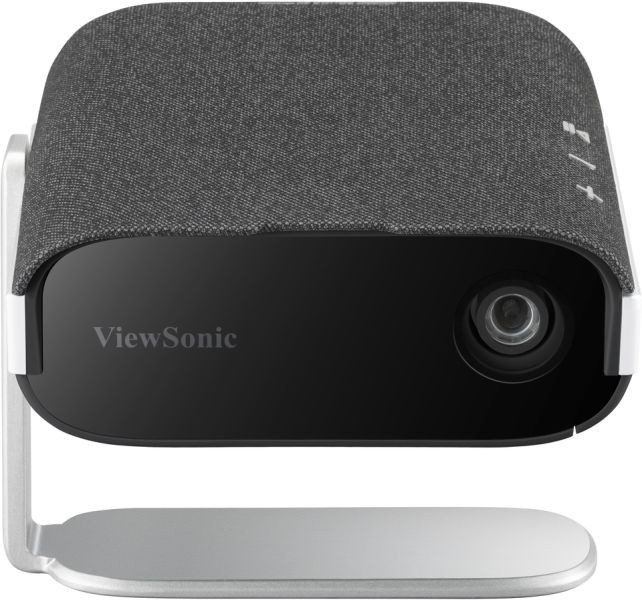

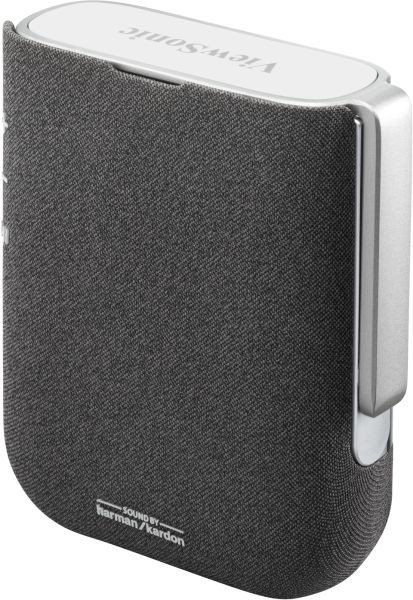

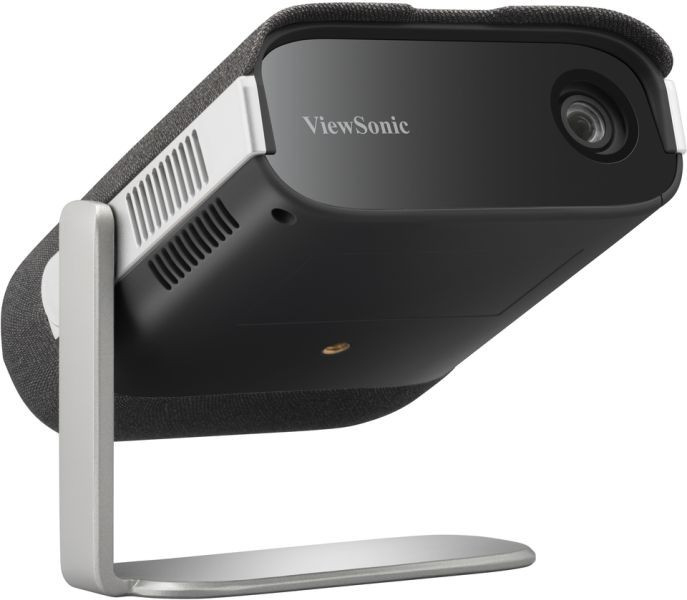

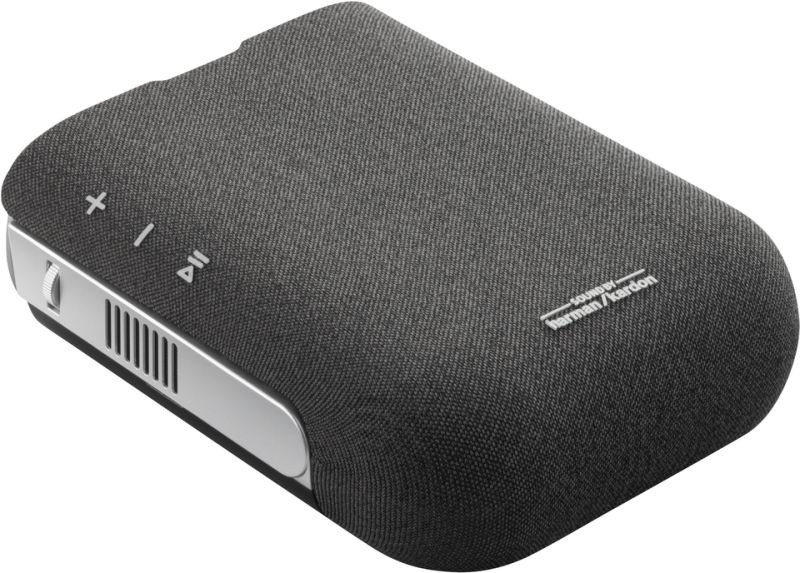

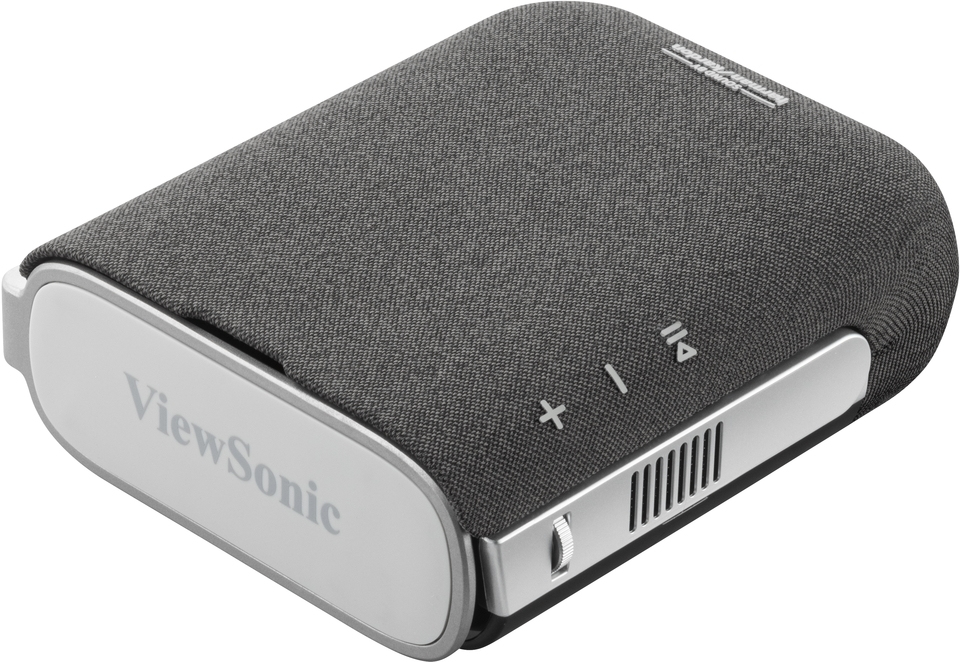

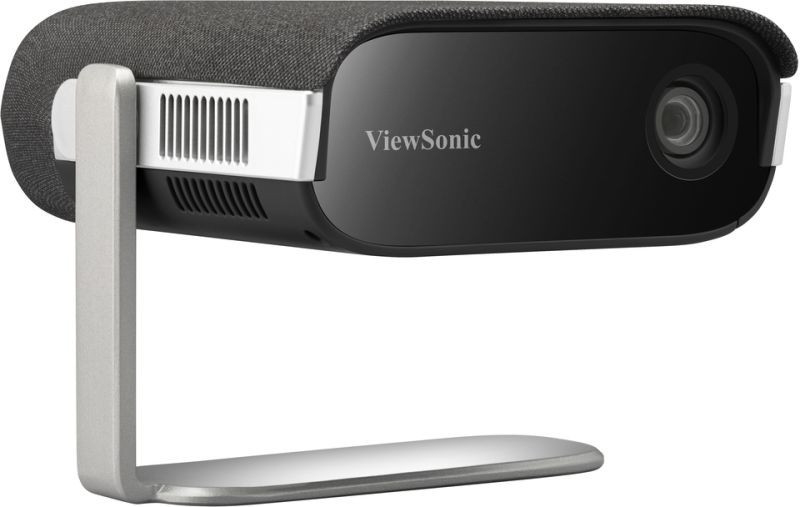

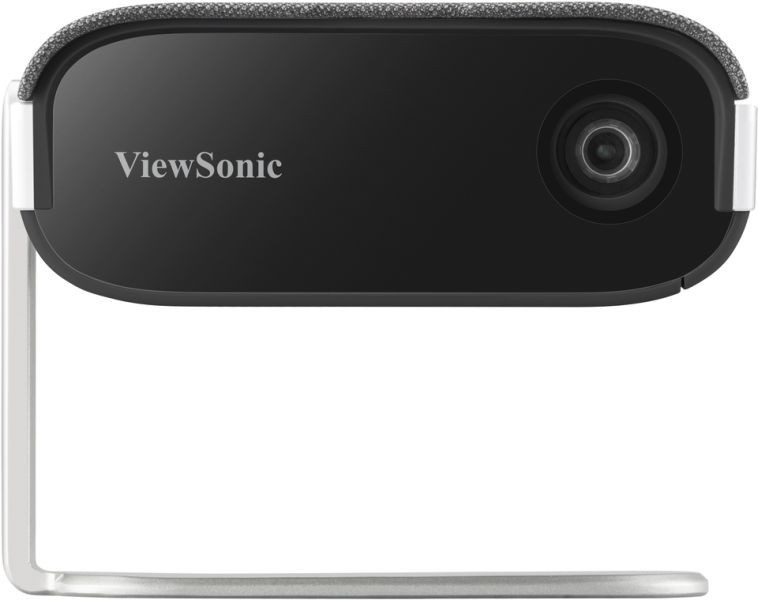

The M1XE ultra-portable smart LED projector is your gateway to an exhilarating entertainment experience! Weighing less than 1kg and boasting signature ViewSonic M1 series designs, it features a patented 3-in-1 smart stand for a 360-degree customisable projection angle, lens cover, and auto-power-on. With vivid colours on a massive up-to-100" screen and Harman Kardon speakers, immerse yourself indoors or outdoors in unparalleled audio-visual bliss. Its 4-hour battery life, power bank compatibility, and comprehensive H/V keystone correction with 4-corner adjustments make this lightweight projector your ultimate entertainment companion. Enjoy seamless connectivity, including Bluetooth, Wi-Fi, USB-C for direct content display from mobile devices – including the latest iPhone. Alternatively, plug in popular streaming devices like Chromecast, Apple TV, and Fire TV Stick, powered through the M1EX’s USB-A port.
Projector
Projector brightness
360 LED lumens
Supported aspect ratios
16:9
Screen size compatibility
609.6 - 2540 mm (24 - 100")
Projection distance
0.64 - 2.66 m
Projection technology
LED
Projector native resolution
WVGA (854x480)
Contrast ratio (typical)
120000:1
Native aspect ratio
16:9
Number of colours
1.07 billion colours
Horizontal scan range
15 - 102 kHz
Vertical scan range
23 - 120 Hz
Keystone correction, horizontal
-40 - 40°
Keystone correction, vertical
-40 - 40°
Light source
Light source type
LED
Service life of light source
60000 h
Lens system
Fixed focal length
5.5 mm
F-number (relative aperture)
1.7
Throw ratio
1.2
Offset
100%

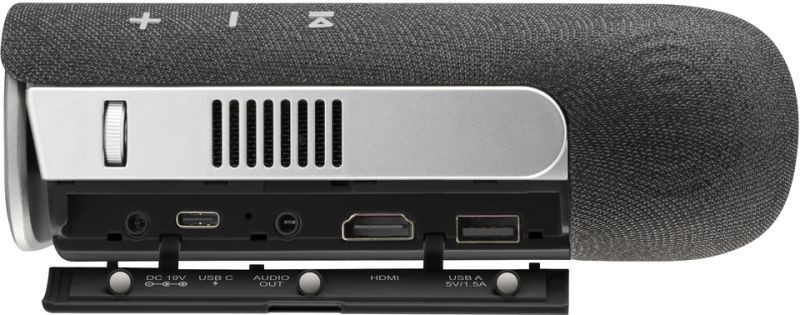

Ports & interfaces
USB 2.0 Type-A ports quantity
1
USB 2.0 Type-C ports quantity
1
HDMI ports quantity
1
Network
Ethernet LAN
No
Wi-Fi
No
Bluetooth
Yes
Bluetooth version
4.2
Storage
Card reader integrated
No
Internal storage capacity
16 GB
Features
Noise level (economic mode)
25 dB
Noise level
26 dB
Multimedia
Built-in speaker(s)
Yes
RMS rated power
6 W
Number of built-in speakers
2
Design
Market positioning
Portable
Product type
Short throw projector
Product colour
Black, Silver
LED indicators
Yes
Display
Logistics data
Pallet gross length
105 cm
Pallet gross width
125 cm
Pallet gross height
2.13 m
Products per master (outer) case
6 pc(s)
Harmonized System (HS) code
8528620000
Power
Power source
AC/Battery
Power consumption (typical)
35 W
Power consumption (standby)
0.5 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Battery capacity
12000 mAh
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Weight & dimensions
Width
166 mm
Depth
138 mm
Height
54 mm
Weight
800 g
Package width
220 mm
Package depth
190 mm
Package height
125 mm
Package weight
1.87 kg
