Introduction
Description

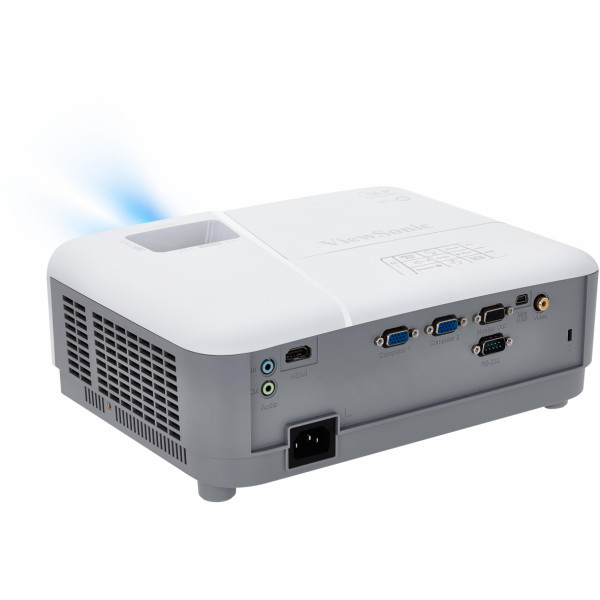

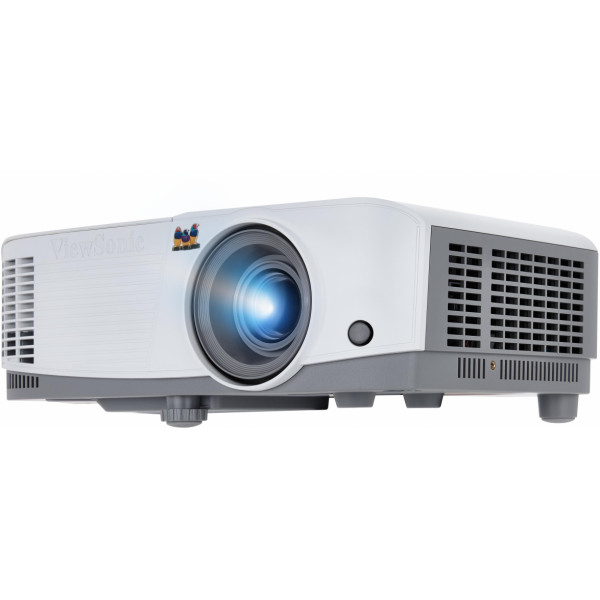

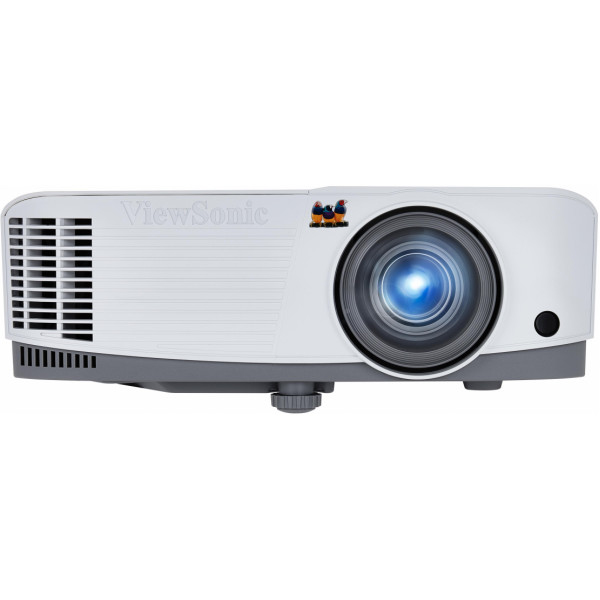

The ViewSonic PA503W price-performance projector features 3,600 lumens, native WXGA 1280x800 resolution, and an intuitive, user-friendly design. Exclusive SuperColor technology offers a wider color range for lifelike image projection. The PA503w also features extensive connectivity including HDMI, 2 x VGA in, Composite Video, 1 x VGA output, and Audio in/out. An energy-saving SuperEco feature reduces power consumption by up to 70%, and extends the lamp life by up to 10,000 hours. With advanced audiovisual features, flexible connectivity options, and an affordable price, the PA503W is ideal for use in education and small business environments.
Logistics data
Pallet gross length
74 cm
Pallet gross width
90 cm
Pallet gross height
2.21 m
Products per master (outer) case
1 pc(s)
Projector
Screen size compatibility
762 - 7620 mm (30 - 300")
Projection distance
1 - 10.98 m
Projector brightness
3800 ANSI lumens
Projection technology
DMD
Projector native resolution
WXGA (1280x800)
Contrast ratio (typical)
22000:1
Number of colours
1.07 billion colours
Horizontal scan range
15 - 102 kHz
Vertical scan range
23 - 120 Hz
Keystone correction, vertical
-40 - 40°
Matrix size
1.65 cm (0.65")

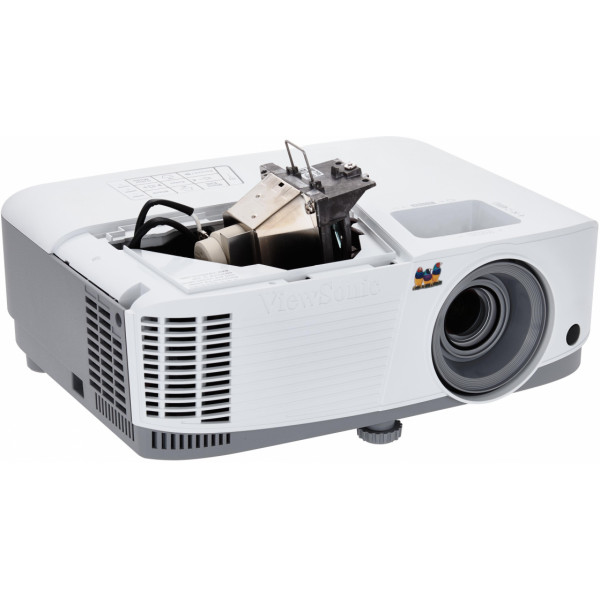

Light source
Light source type
Lamp
Service life of light source
5000 h
Service life of light source (economic mode)
15000 h
Lamp power
200 W
Lamps quantity
1 lamp(s)
Lens system
Focus
Manual
Focal length range
22 - 24.1 mm
Aperture range (F-F)
2.56 - 2.68
Zoom capability
Y
Zoom ratio
2.0:1
Throw ratio
1.55-1.7
Offset
100%
Video
Analog signal format system
NTSC,PAL,SECAM
Supported graphics resolutions
640 x 480 (VGA),1920 x 1080 (HD 1080)
Supported video modes
480i,480p,576i,576p,720p,1080i,1080p

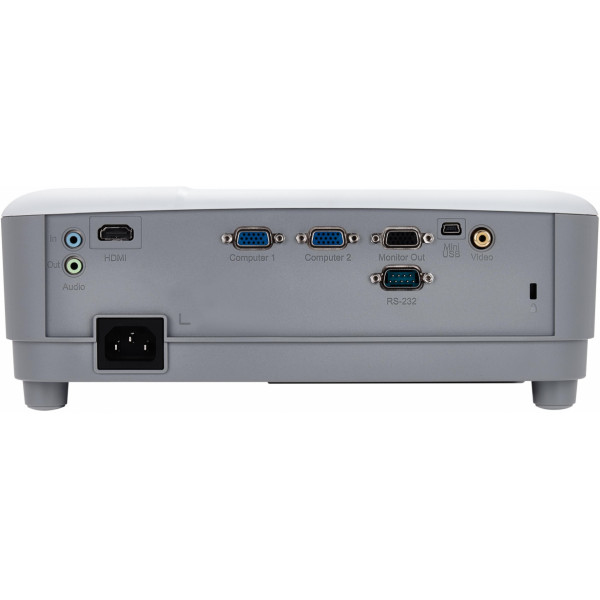

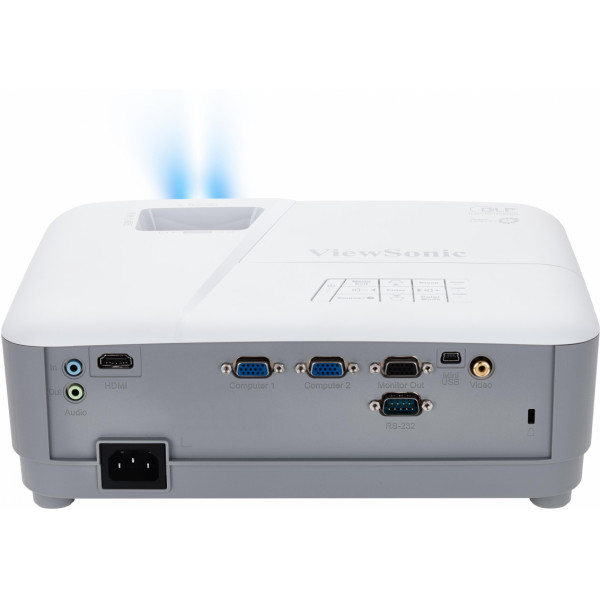

Ports & interfaces
HDMI connector type
Full-size
HDMI version
1.4
Mini-USB 2.0 ports quantity
1
Serial interface type
RS-232
PC Audio in
Y
PC Audio out
Y
VGA (D-Sub) ports quantity
3
HDMI ports quantity
1
Composite video in
1
DVI port
N
Mobile High-Definition Link (MHL)
N
AC (power) in
Y
Network
Smart TV
N
Ethernet LAN
N
Wi-Fi
N
Storage
Card reader integrated
N
Features
Interactive
N
Noise level (economic mode)
27 dB
HDCP
Y
On Screen Display (OSD)
Y
On Screen Display (OSD) languages
Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
Number of OSD languages
22
Noise level
31 dB
Supplier features
Harmonized System (HS) code
85286200
Multimedia
Built-in speaker(s)
Y
RMS rated power
2 W
Design
Market positioning
Presentation
Product type
Standard throw projector
Product colour
White
Placement
Desktop, Ceiling
Display
Built-in display
N
Power
Power source
AC
Power consumption (typical)
260 W
Power consumption (standby)
0.5 W
AC input voltage
100-240 V
AC input frequency
50/60 Hz
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
294 mm
Depth
218 mm
Height
110 mm
Weight
2.2 kg
Package width
365 mm
Package depth
300 mm
Package height
188 mm
Package weight
3.24 kg
Packaging content
Remote control included
Y
Cables included
AC, VGA
Manual
Y
Information
| Part Number: | PA503W |
