Introduction
AFFORDABILITY AND SIMPLICITY DELIVERED
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.
Your 1D scanner can't capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.

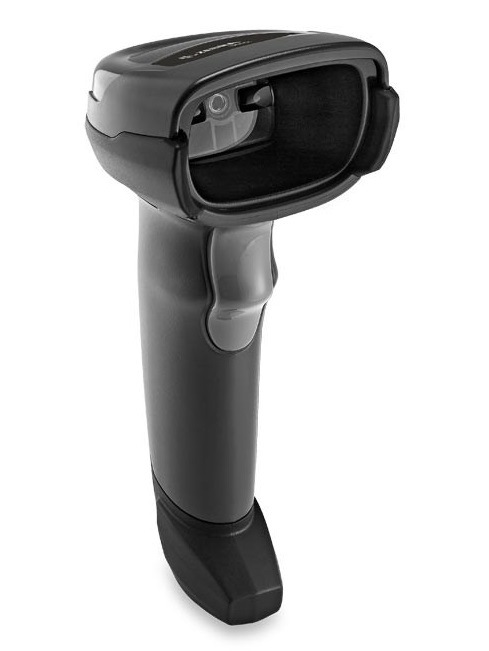

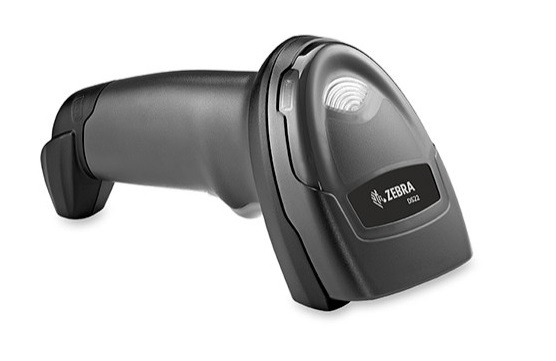

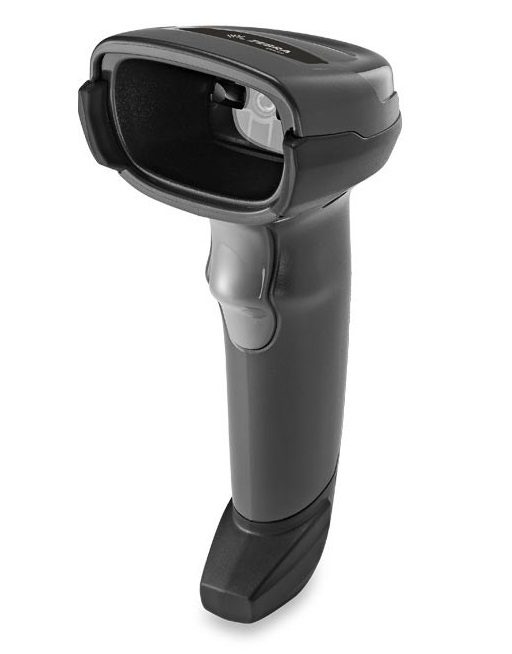

But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn't compromise performance or features for price. And you can choose the model that best fits your POS needs - the corded DS2208 or the cordless DS2278. The DS2200 Series - the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
84716070
Sustainability certificates
RoHS
Scanning
Type
Handheld bar code reader
Scanner type
1D/2D
Sensor type
LED
Linear (1D) barcodes supported
Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,GS1 DataBar Expanded,Interleaved 2 of 5,MSI,U.P.C.
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39
Optical sensor resolution (W x H)
640 x 480 pixels
Working distance
36.8 cm
Wavelength
645 nm
Tilt reading angle
-65 - 65°
Pitch reading angle
-65 - 65°
Yaw reading angle
-65 - 65°
Motion tolerance (cm/s)
13
Ports & interfaces
Connectivity technology
Wired
Standard interfaces
USB, RS-232, RS-485, Keyboard wedge
Wireless range
10 m
Bluetooth version
4.0
Bluetooth Low Energy (BLE)
Y
Performance
International Protection (IP) code
IP42
LED indicators
Y
Product colour
Black
Certification
EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
IEC 62471
EN 55022 (Class B); EN 55032 (Class B)
EN 55024
EN 61000-3-2
EN 61000-3-3
47 CFR Part 15, Subpart B, Class B
ICES-003 Issue 6, Class B
Power
Power source type
DC
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
2400 mAh
Battery life
100 h
AC adapter output voltage
5 V
Power consumption
250 mA
Weight & dimensions
Width
66 mm
Depth
99 mm
Height
165 mm
Weight
161.6 g
Packaging data
Cables included
Micro-USB
Charging base
N
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
