Introduction
Affordability and simplicity delivered
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.
Your 1D scanner can't capture the new 2D codes, leading to exceptions that slow down the cheque-out process and frustrate customers at that key last personal touchpoint in your store.

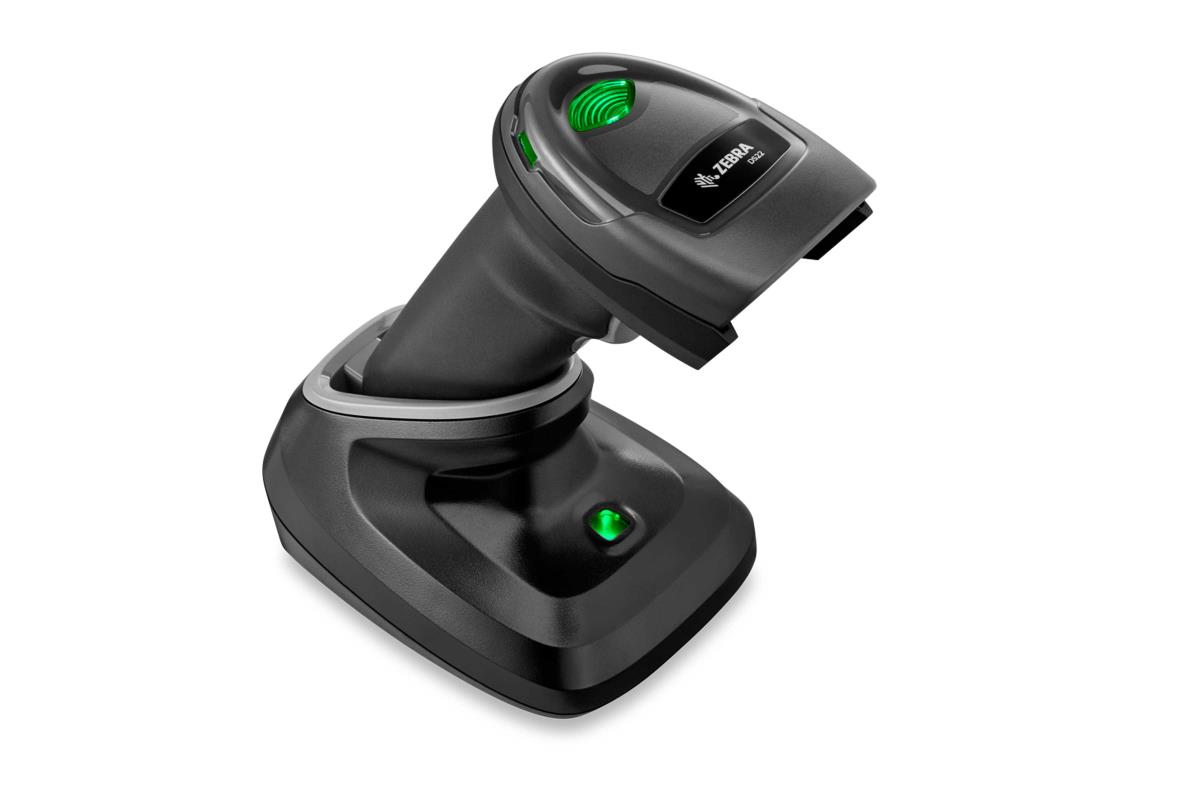

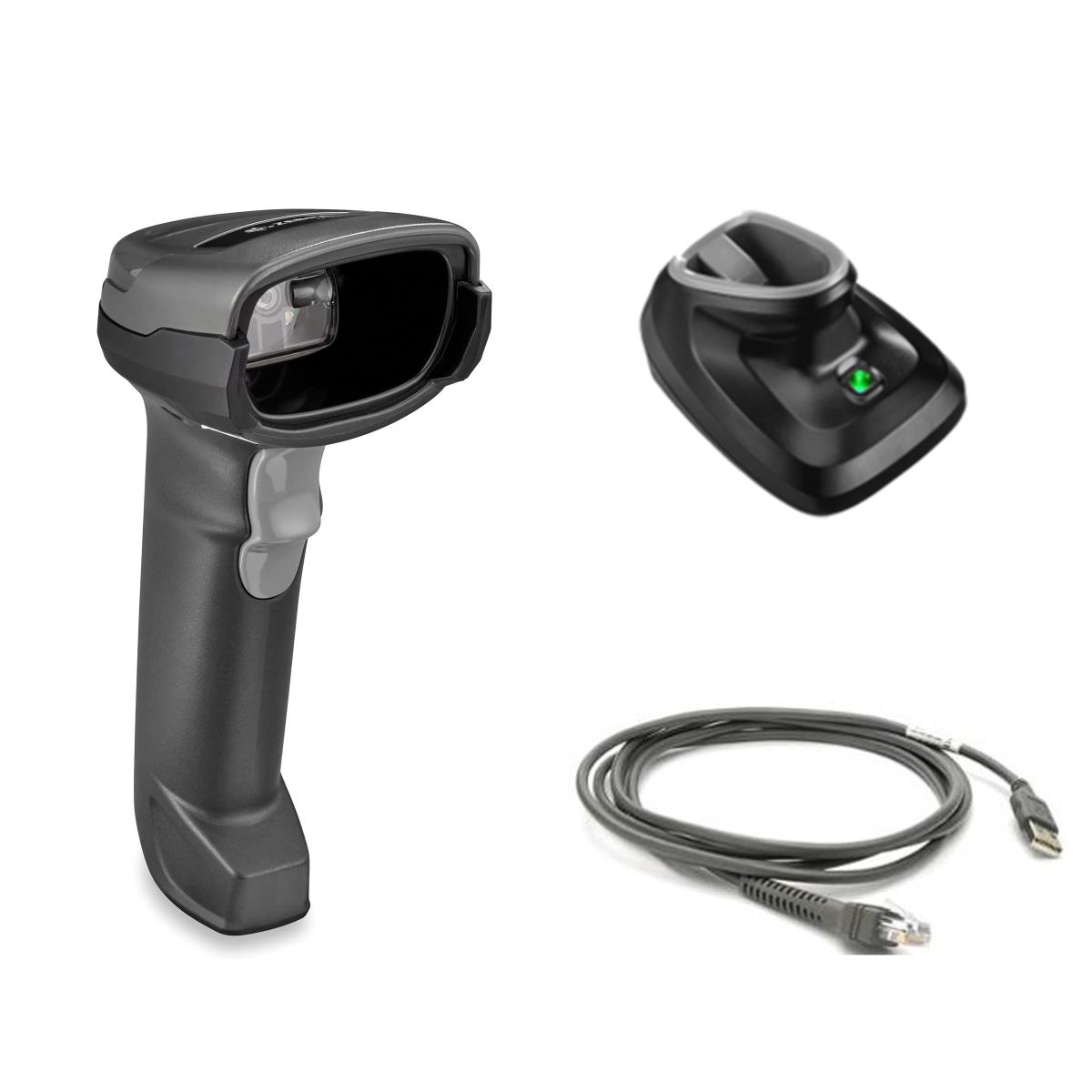

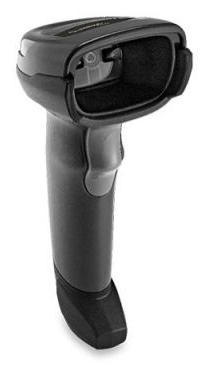

But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn't compromise performance or features for price. And you can choose the model that best fits your POS needs - the corded DS2208 or the cordless DS2278. The DS2200 Series - the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.
Technical details
Harmonized System (HS) code
84716070
Compliance certificates
RoHS
Sustainability certificates
RoHS
Scanning
Type
Handheld bar code reader
Scanner type
1D/2D
Sensor type
LED
Linear (1D) barcodes supported
Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,Interleaved 2 of 5,Plessey,U.P.C.
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
Optical sensor resolution (W x H)
640 x 480 pixels
Working distance
36.8 cm
Wavelength
645 nm
Tilt reading angle
-65 - 65°
Pitch reading angle
-65 - 65°
Motion tolerance (cm/s)
13
Ports & interfaces
Connectivity technology
Wired & Wireless
Standard interfaces
Bluetooth, USB
Bluetooth version
4.0
Bluetooth Low Energy (BLE)
Y
Performance
International Protection (IP) code
IP42
LED indicators
Y
Built-in display
N
Product colour
Black
Certification
EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1
2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-
1-07
Power
Power source type
Battery, DC
Battery technology
Lithium-Ion (Li-Ion)
Number of batteries supported
1
Battery capacity
2400 mAh
Battery life
84 h
Input voltage
4.5 - 5.5 V
Weight & dimensions
Width
66 mm
Depth
90 mm
Height
175 mm
Weight
214 g
Packaging data
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
