Product Details
Scanning
Type

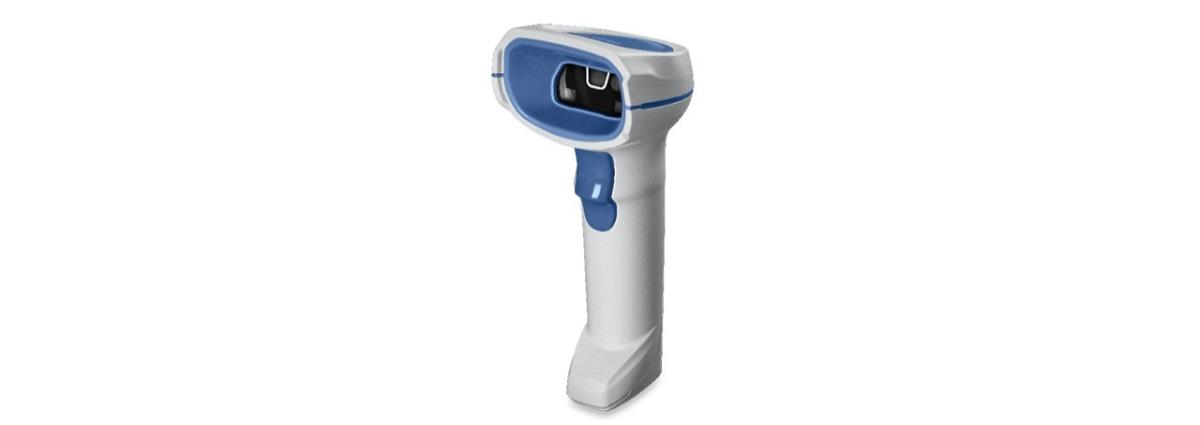

Handheld bar code reader
Scanner type
1D/2D
Sensor type
LED
Linear (1D) barcodes supported
Codabar,Code 11,Code 128,Code 39,Code 93,GS1 DataBar Expanded,Interleaved 2 of 5,MSI,Plessey,U.P.C.
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wavelength
528 nm
Tilt reading angle
0 - 360°
Pitch reading angle
0 - 60°
Yaw reading angle
0 - 60°
Ports & interfaces
Connectivity technology
Wired & Wireless
Standard interfaces
RS-232, USB, Keyboard wedge
Wireless range
100 m
Bluetooth version
4.0
Bluetooth Low Energy (BLE)
Y
PC connection
RS-232/USB
Performance
International Protection (IP) code
IP42
Product colour
White
Technical details
Harmonized System (HS) code
84716070
Power
Power source type
Battery
Battery technology
Lithium-Ion (Li-Ion)
Battery type
Built-in battery
Number of batteries supported
1
Battery capacity
2500 mAh
Number of reads per charge
65000
Battery life
83 h
Input voltage
5 V
Weight & dimensions
Width
66 mm
Depth
107 mm
Height
168 mm
Weight
235 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Information
| Part Number: | DS8178-HCBU210MP5W |
