Product Details
Introduction

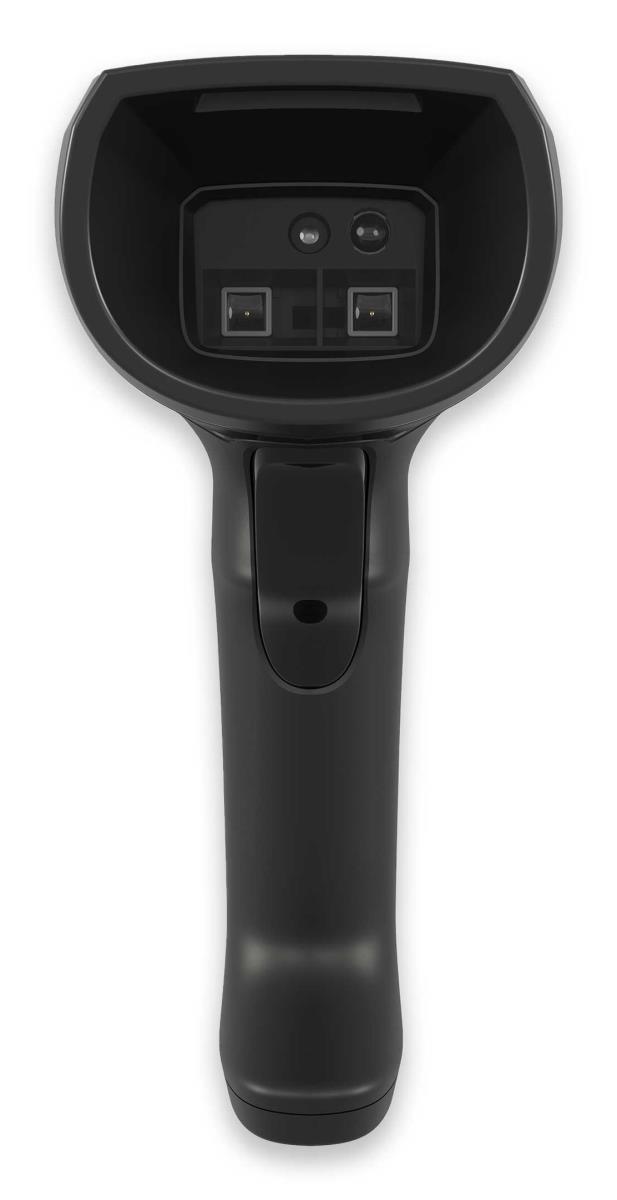

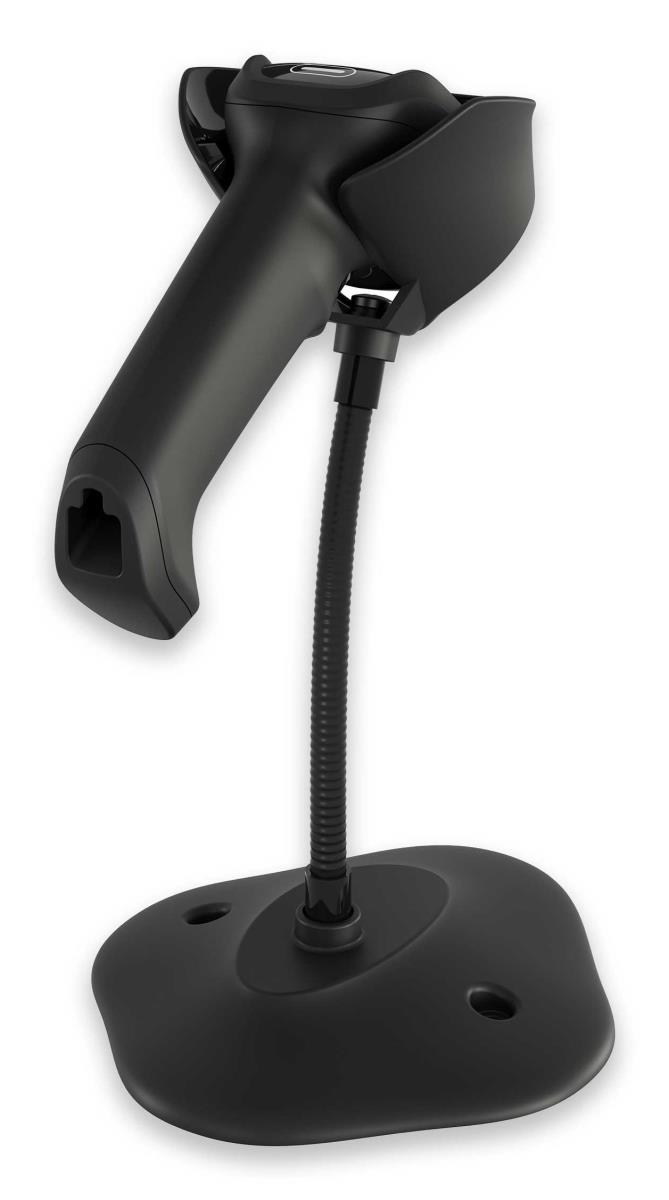

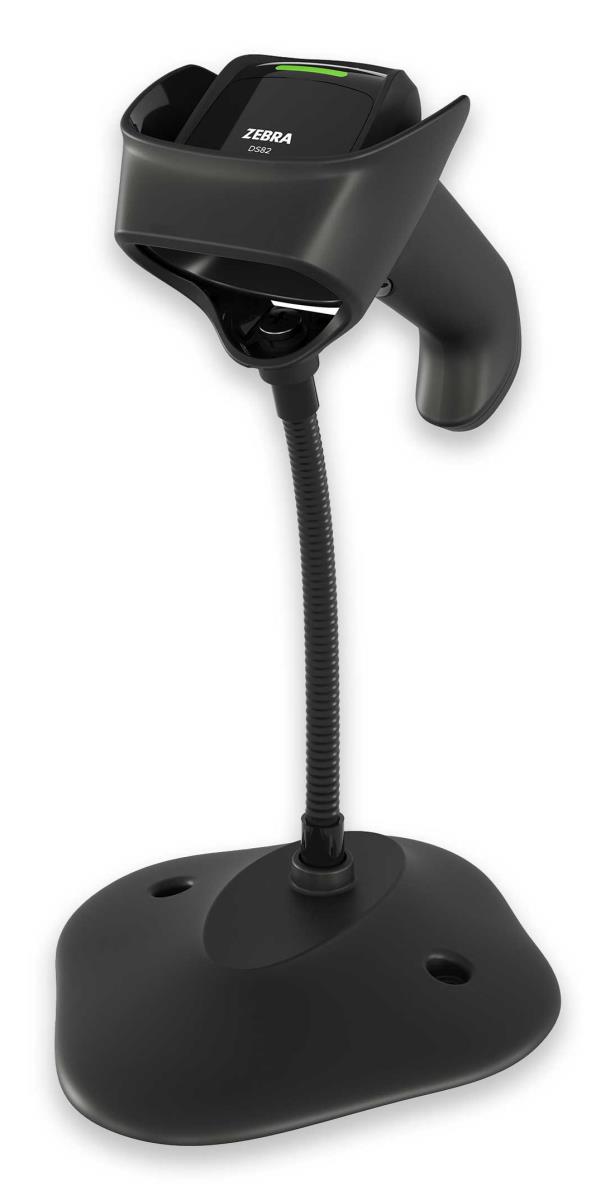

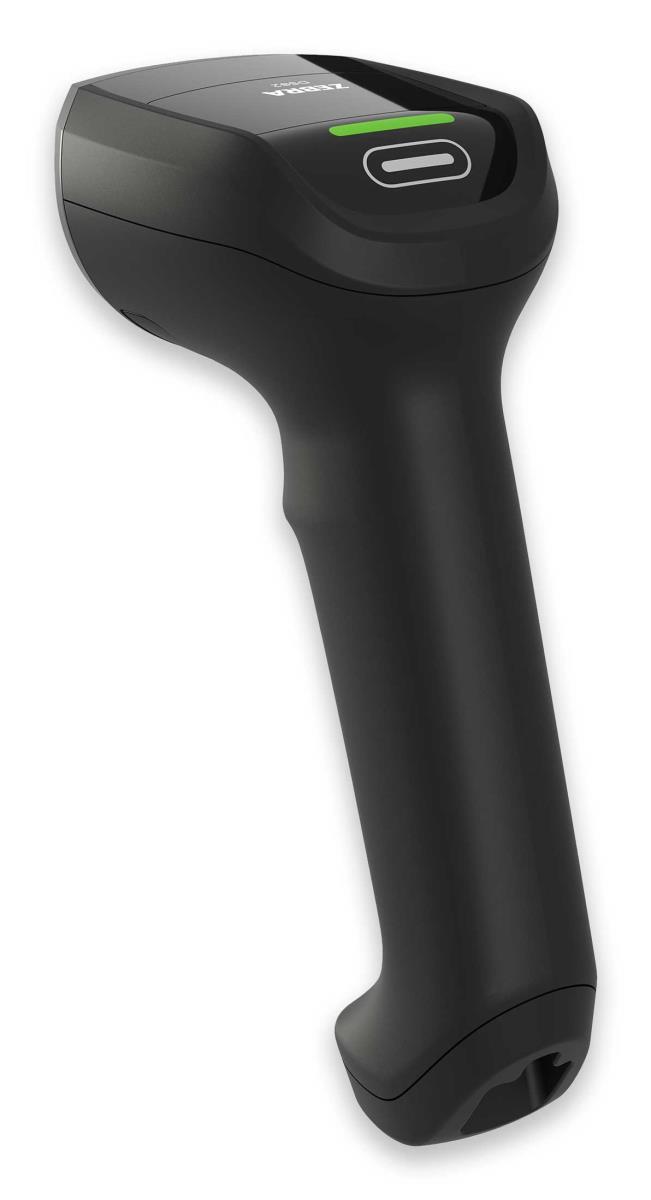

Boost efficiency and deliver exceptional customer service at every touchpoint with the DS8208 corded scanner. Featuring an advanced 2 MP optical system that sets a new benchmark for scan performance and a multi-function button to streamline workflows, the DS8208 provides the speed and reliability your team needs to keep transactions moving.
Scanning
Type
Handheld bar code reader
Scanner type
1D/2D
Sensor type
LED
Linear (1D) barcodes supported
AIM-128, Codabar, Code 11, Code 128, Code 39, Code 93, GS1 Composite, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1 Databar RSS14, GS1-128 (UCC/EAN-128), IATA, Industrial 2 of 5, Interleaved 2 of 5, ISBN, ISBT 128, ISSN, ITF-14, ITF-6, MSI, MSI-Plessey, Pharmacode, Plessey, Telepen, Trioptic, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1, EAN-8, EAN-13
2D (matrix & stacked) barcodes supported
Aztec Code, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, SecurPharm, TLC-39
Optical sensor resolution (W x H)
1600 x 1200 pixels
Horizontal field of view
48°
Vertical field of view
36°
Light levels (direct sunlight)
0 - 107.6 lx
Pitch reading angle
0 - 60°
Ports & interfaces
Connectivity technology
Wired & Wireless
Standard interfaces
RS-232, USB
Bluetooth version
5.2
Bluetooth Low Energy (BLE)
Yes
Performance
International Protection (IP) code
IP52
Ambient lighting
Yes
Print contrast
16%
Product colour
Black
Power
Power source type
DC
Battery type
Built-in battery
Charging port type
USB Type-C
Battery life
108 h
Charging time
6.7 h
Weight & dimensions
Weight
176.5 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Drop resistance
3 m
Battery
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
3500 mAh
Information
| Part Number: | DS8288-SR4U210PSVW |
