Product Details
Introduction

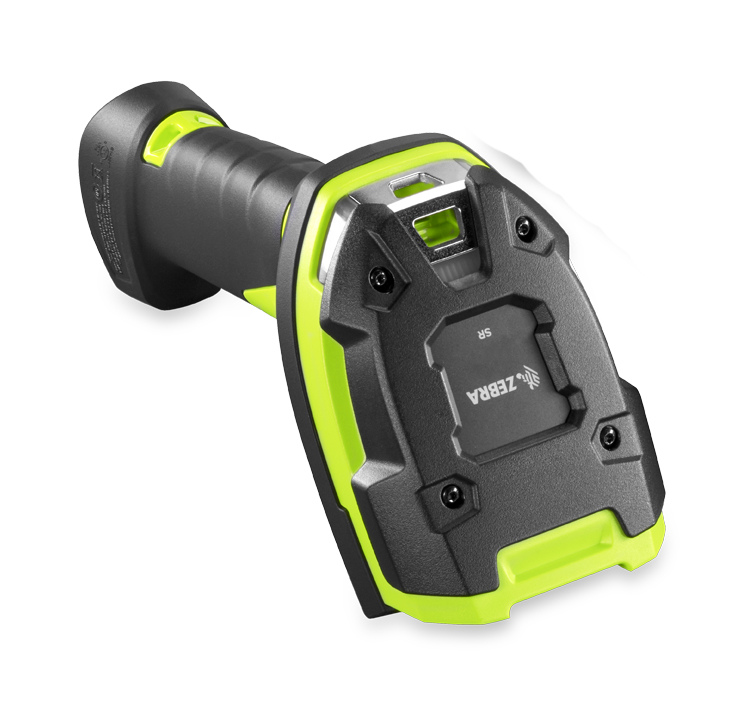

LI3678 RUGG LIN IMAG STD RANGE CORDLESS IND GREEN VIB MOTOR
Scanning
Type
Handheld bar code reader
Optical sensor resolution
1500 pixels
Scanner type
1D
Linear (1D) barcodes supported
Codabar,Code 11,Code 128,Code 39,Code 93,GS1-128 (UCC/EAN-128),MSI,Plessey,U.P.C.
2D (matrix & stacked) barcodes supported
Not supported
Wavelength
617 nm
Tilt reading angle
-65 - 65°
Pitch reading angle
-65 - 65°
Yaw reading angle
-45 - 45°
Ports & interfaces
Connectivity technology
Wired & Wireless
Standard interfaces
RS-232, USB, Keyboard wedge
Wireless range
100 m
Bluetooth version
4.0
Bluetooth Low Energy (BLE)
Y
Performance
International Protection (IP) code
IP67
Protection features
Dust resistant, Shock resistant, Water resistant
LED indicators
Y
Product colour
Black, Green
Programming function
Y
Power
Power source type
Battery
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
3100 mAh
Number of reads per charge
70000
Weight & dimensions
Width
142 mm
Depth
76 mm
Height
185 mm
Weight
385 g
Operational conditions
Operating temperature (T-T)
-20 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Technical details
Sustainability certificates
RoHS
Information
| Part Number: | LI3678-SR0F003VZWW |
