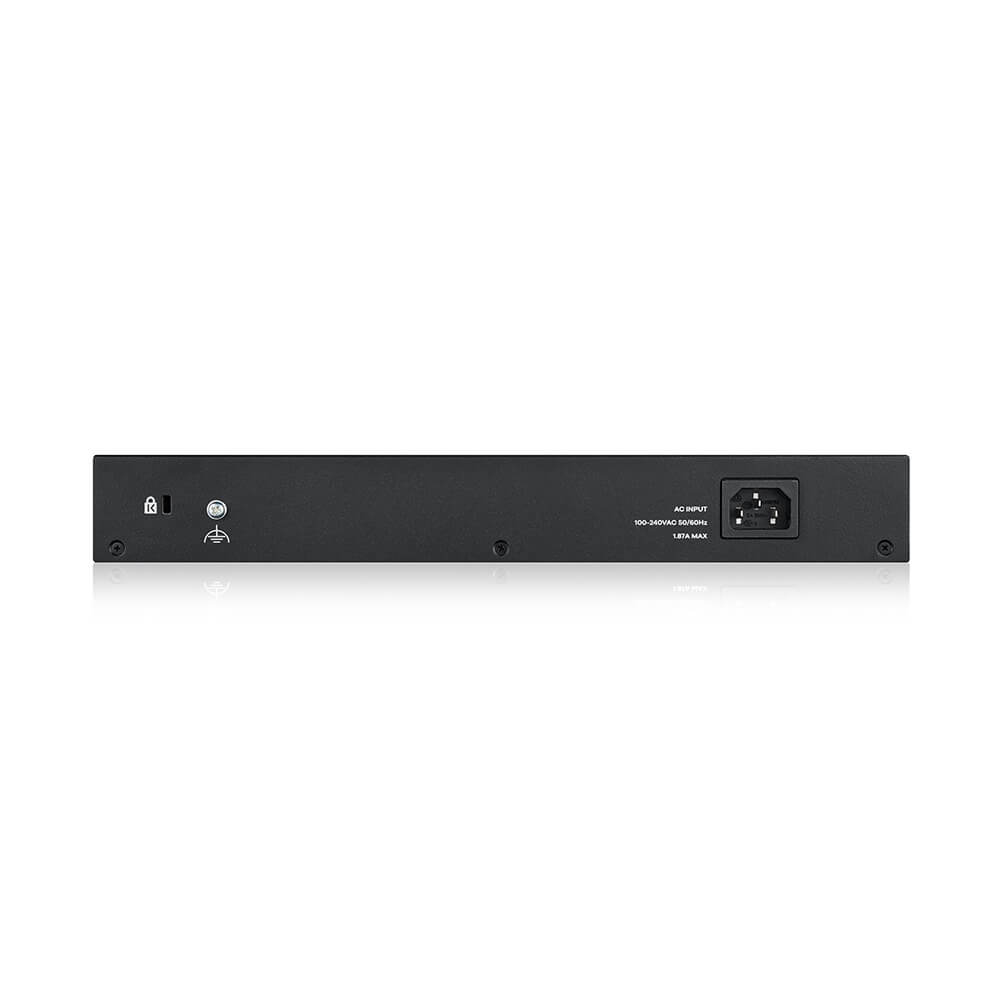

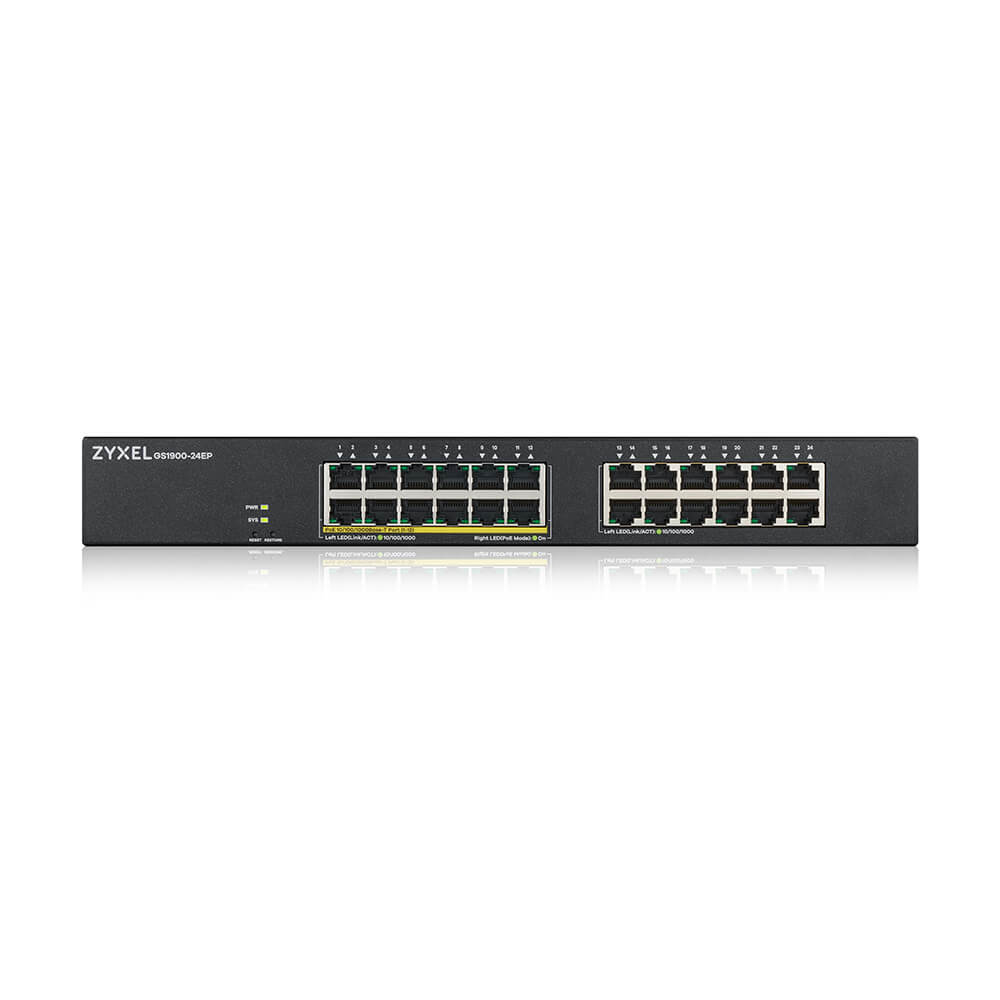

ZYXEL Gs1900 24ep - Gbe Smart Managed Switch Poe - 24 Port Uk

£224.97

Part Number: GS1900-24EP-GB0101F
Delivery: 1 - 2 days

Product Details

Introduction

Near silent operation
The GS1900 Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.

Intelligent PoE+ powers more devices
PoE models (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption mode which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.

Speedy Gigabit performance-built for SMBs
The GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade from an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.

Easy and intuitive management
The Smart Managed GS1900 Series switch feature with web-based interface to manage advanced functions such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 and DoS prevention easily. Also, the user-friendly wizard helps to walk through setup, configuration and even advanced settings quickly.

Management features

Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
MIB support RFC 1213 MIB II RFC 2819 RMON (group 1, 2, 3, 9) RFC 1215 generic traps RFC 1493 bridge Zyxel private common MIB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Power connector AC-in jack

Network

Networking standards IEEE 802.1D, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1s, IEEE 802.1w, IEEE 802.3at, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
10G support No
Cable types supported Cat5, Cat5e
Port mirroring Yes
Full duplex Yes
Flow control support Yes
Link aggregation Yes
Auto MDI/MDI-X Yes
Spanning tree protocol No
Ethernet LAN data rates 10,100,1000 Mbit/s
MAC address auto-learning supported Yes
VLAN support Yes
Virtual LAN features Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN

Data transmission

Switching capacity 48 Gbit/s
Forwarding rate 35.7 Mpps
MAC address table 8000 entries
Store-and-forward Yes
Jumbo frames support Yes
Jumbo frames 9000
Packet buffer memory 0.525 MB

Security

DHCP features DHCP client
IGMP snooping Yes
Security algorithms 802.1x RADIUS
MAC address filtering Yes
Static port security Yes
SSH/SSL support Yes
Password protection Yes
Authentication type HWTACACS+, IEEE 802.1x, RADIUS

Multicast features

Multicast support Yes

Design

Rack mounting Yes
Stackable Yes
Product colour Black
Reset button Yes

Performance

Noise level 26 dB

Power

Power source AC
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (max) 166.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 12
Total Power over Ethernet (PoE) budget 130 W

Weight & dimensions

Width 330 mm
Depth 230 mm
Height 44 mm
Weight 2.48 kg

Packaging data

Cables included AC
Quick start guide Yes
User guide Yes
Manual Yes
