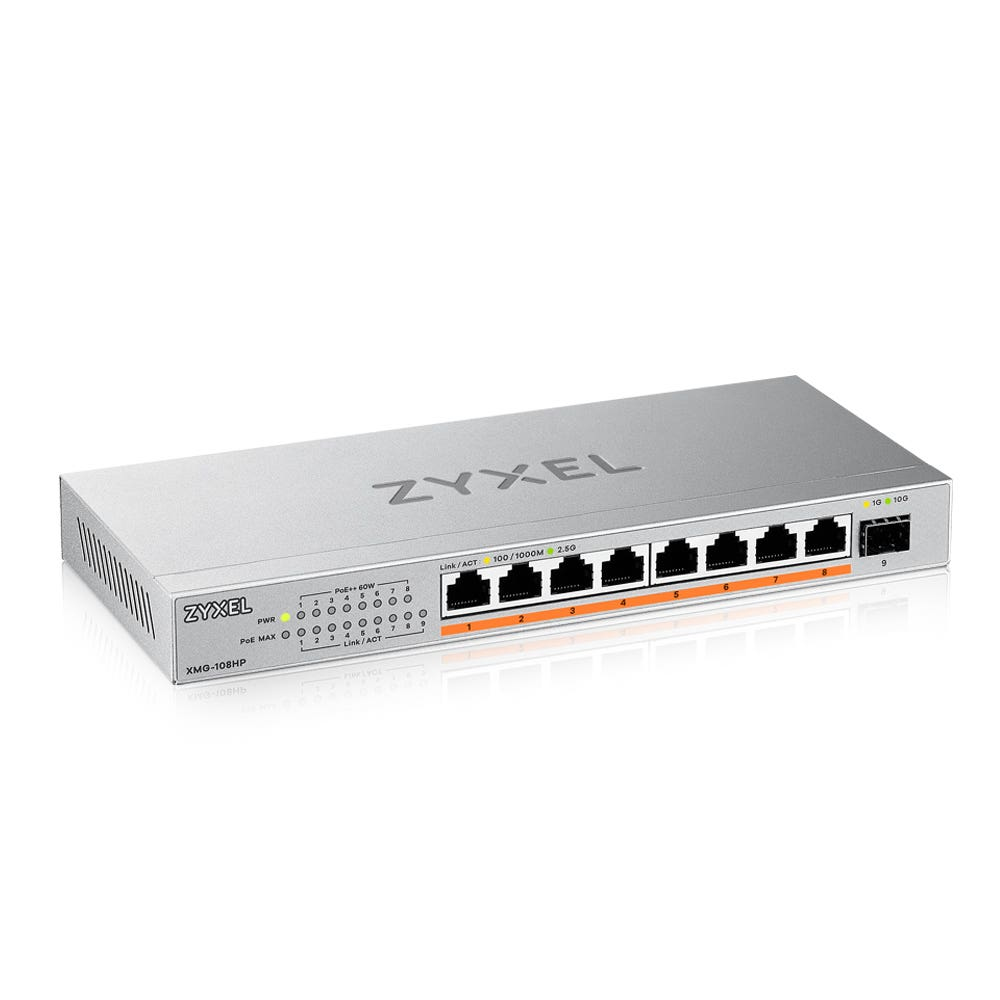

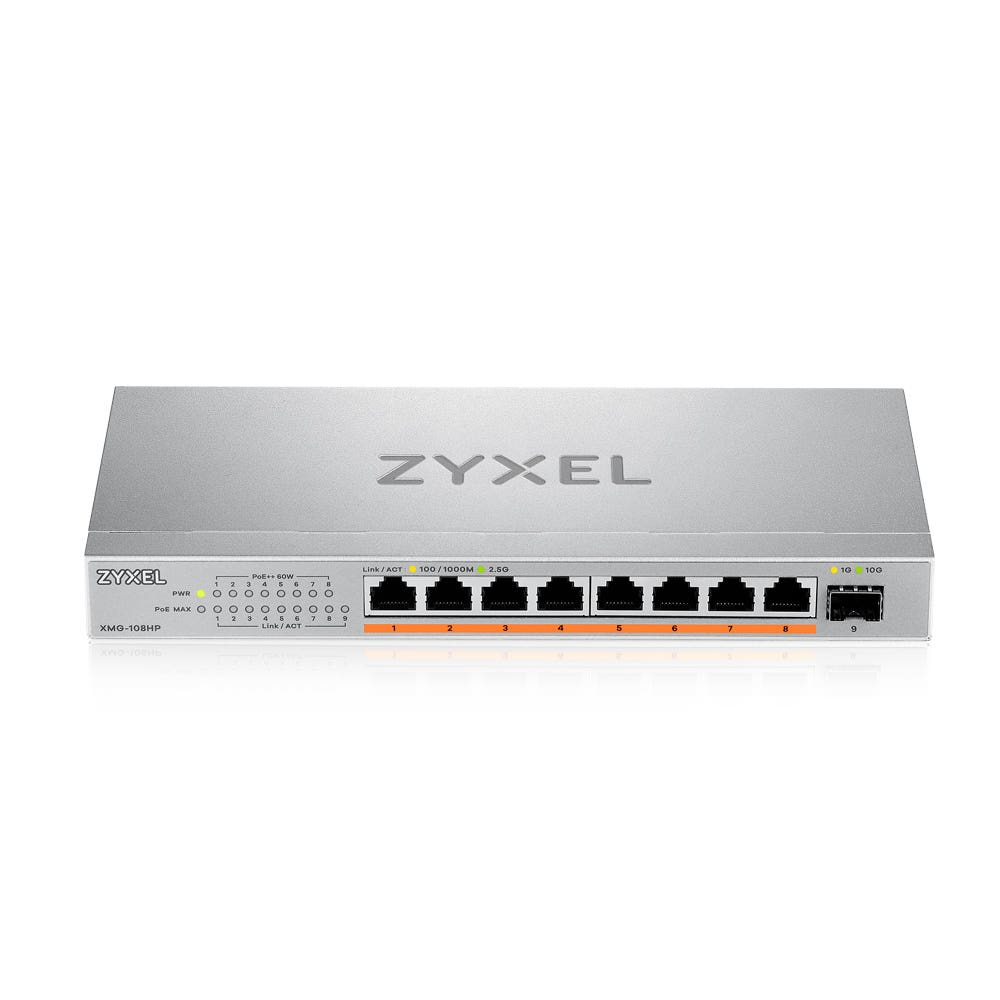

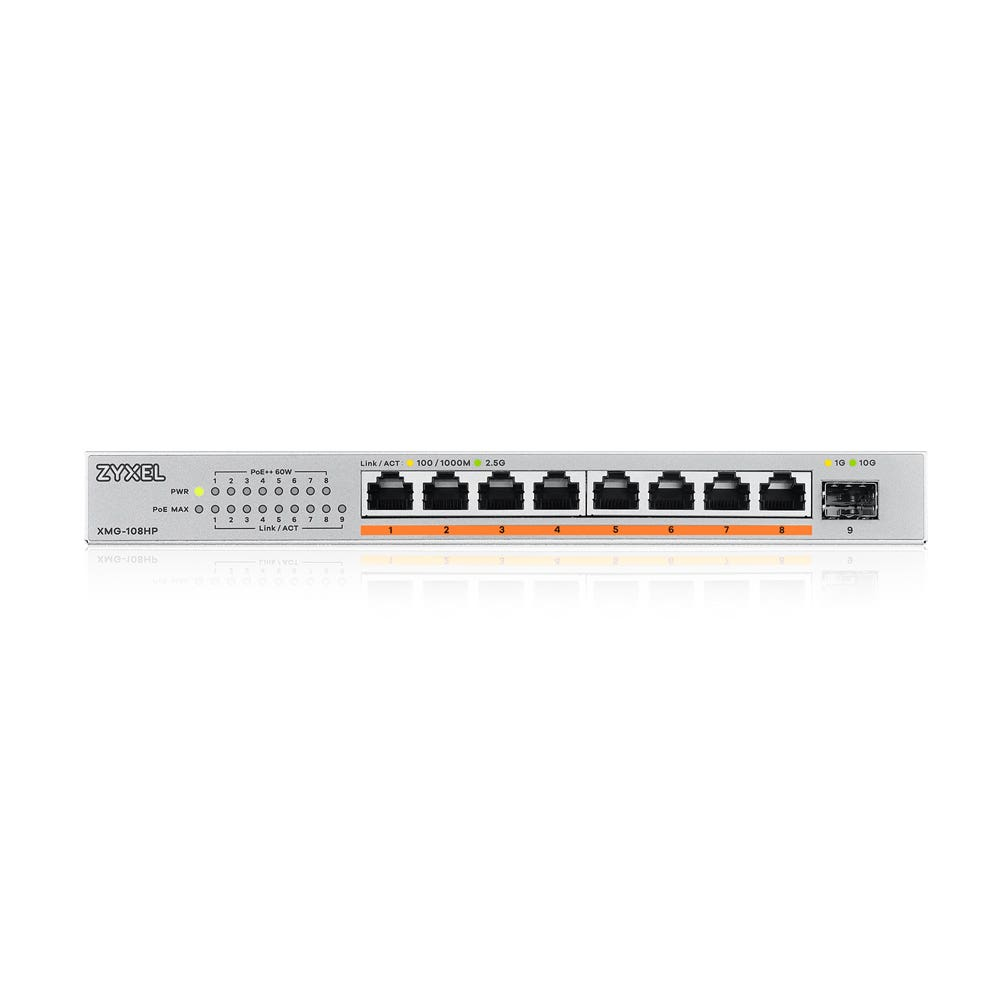

ZYXEL Xmg108 - 8ports Poe+ Desktop Multigig Unmanaged Switch Gb

£116.62

Part Number: XMG-108HP-GB0101F
Delivery: 1 - 2 days

Product Details

Introduction

The Zyxel XMG-100 Series 2.5 Gigabit switch is the ideal choice for home, SOHO, or small office users who want to upscale their network with increasing demands coming from online gaming activities, multimedia streaming services or faster wireless network connectivity. All ports are equipped with 2.5 Gigabit Ethernet speed, allowing easy network speed upgrade. In addition, this Series offers an extra SFP+ slot for 10G network uplink or access to a NAS.

Plug-and-play to upgrade your network to WiFi 6/6E.
The XMG-100 Series Switch features Multi-Gig ports supporting speeds up to 2.5G, allowing effortless connection to the latest 2.5G-compatible network devices for high-performance networking. Its simplified plug-and-play technology ensures easy setup to seamlessly upgrade your wireless network to WiFi 6/6E by connecting to the PoE models XMG-105HP and XMG-108HP.

Extra 10G port to streamline large file transfers.
The 10-Gigabit SFP+ increase the network speed for quicker uploads and downloads through NAS and server, allowing content creators or self-media individuals to work more efficiently. Large files, such as high-resolution videos or images, can be transferred in significantly less time, saving valuable production hours.

Single cable for both power and data.
PoE models XMG-105HP and XMG-108HP come with 4/8 uninterrupted PoE++ (60W) ports and a budget-friendly PoE budget of 70W and 100W respectively, deploying PoE devices like WiFi 6/6E APs and PTZ cameras, and IoT devices has never been easier.

2.5G Super-Fast Speeds Without Re-cabling.
You can use your current Cat 5e cables to upgrade your home networking speed from current 1Gbps to 2.5Gbps without additional cabling fee!

Silent Operation, and Flexible Deployment.
The XMG-100 Series is built with fanless and sturdy hardware design to ensure all-time silent and stable operation. They are perfect for noise-free environments such as home or studio. The compact design offers flexible mounting options to place the switch on a desktop or mount it to a wall.

Accelerate Your Networking Experience.
The XMG-100 Series offers home or SOHO users a lag-free and non-intermittent network experience for online gaming or multimedia streaming services. This is achieved through a fast and secure local network connection.

Management features

Switch type Unmanaged
Quality of Service (QoS) support Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity 1

Network

10G support Yes

Data transmission

Switching capacity 60 Gbit/s
Forwarding rate 44.6 Mpps
MAC address table 4000 entries
Jumbo frames support Yes
Jumbo frames 12000
Packet buffer memory 1 MB

Design

LED indicators PoE, Power, Link

Performance

Mean time between failures (MTBF) 858634 h

Power

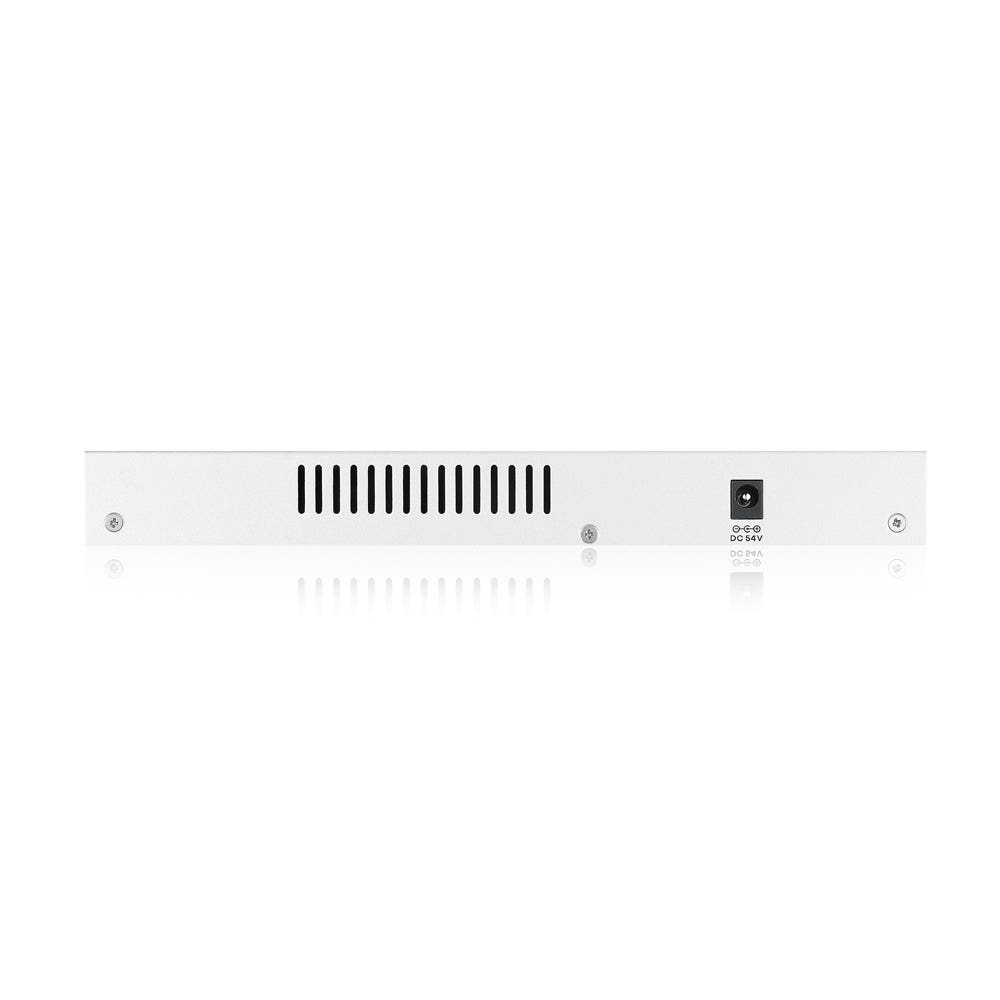

Power source DC
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (max) 120 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) Yes
Power over Ethernet 4PPoE (PoE++) ports quantity 8
Total Power over Ethernet (PoE) budget 100 W

Operational conditions

Operating temperature (T-T) -20 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 95%
Storage relative humidity (H-H) 5 - 95%
Heat dissipation 91.1 BTU/h

Weight & dimensions

Width 240 mm
Depth 105 mm
Height 27 mm
Weight 715 g

Packaging content

Quick start guide Yes

Certificates

Certification CE, EAC, FCC, BSMI Class B

Information

Part Number: XMG-108HP-GB0101F
