Introduction

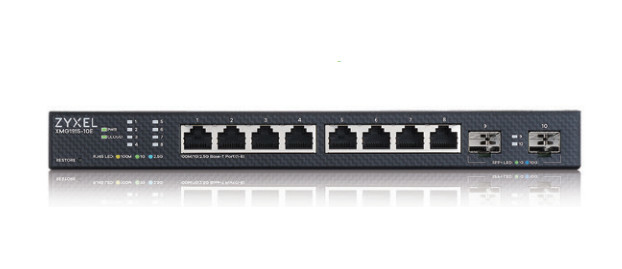

The Zyxel XMG1915 series is a versatile family of 2.5G Multi-Gig Smart Managed switches, available in three models with and without PoE connectivity. Each Ethernet port on these models supports 2.5G speed, and they are equipped with two 10G SFP+ ports to cater to your business’s increasing need for high network speeds. The XMG1915 series is designed to support NebulaFlex, offering the most affordable Multi-Gig hybrid switch solution for the SB/SMB market. Whether you choose to set it up through the user-friendly Web GUI or the Nebula Control center for cloud-based unified management, configuration is a breeze. This series ensures that your network can keep up with the rapid growth in data demands without breaking the bank.
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity
2
Network
Networking standards
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
10G support
Yes
VLAN support
Yes
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Voice VLAN
Data transmission
Switching capacity
80 Gbit/s
Forwarding rate
59.5 Mpps
MAC address table
16000 entries
Jumbo frames support
Yes
Jumbo frames
12000
Packet buffer memory
1.5 MB
Security
DHCP features
DHCP client, DHCP relay, DHCP snooping
IGMP snooping
Yes
Security algorithms
SNMP, SNMPv2, SNMPv3
MAC address filtering
Yes
SSH/SSL support
Yes
Authentication type
RADIUS
Multicast features
Multicast support
Yes
Multicast features
Multicast forwarding
Design
Rack mounting
Yes
LED indicators
Yes
Performance
Internal memory
256 MB
Flash memory
32 MB
Firmware upgradeable
Yes
Mean time between failures (MTBF)
646.958 h
Power
Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
13.13 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
250 mm
Depth
104 mm
Height
27 mm
Weight
780 g
